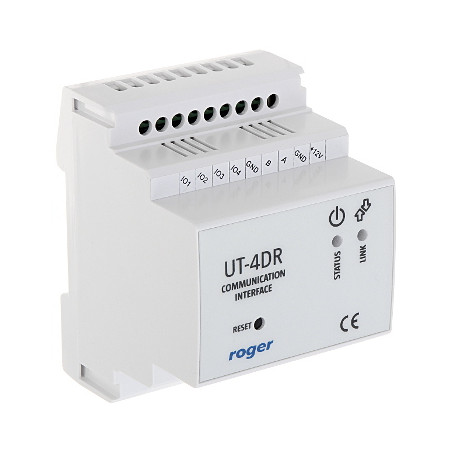

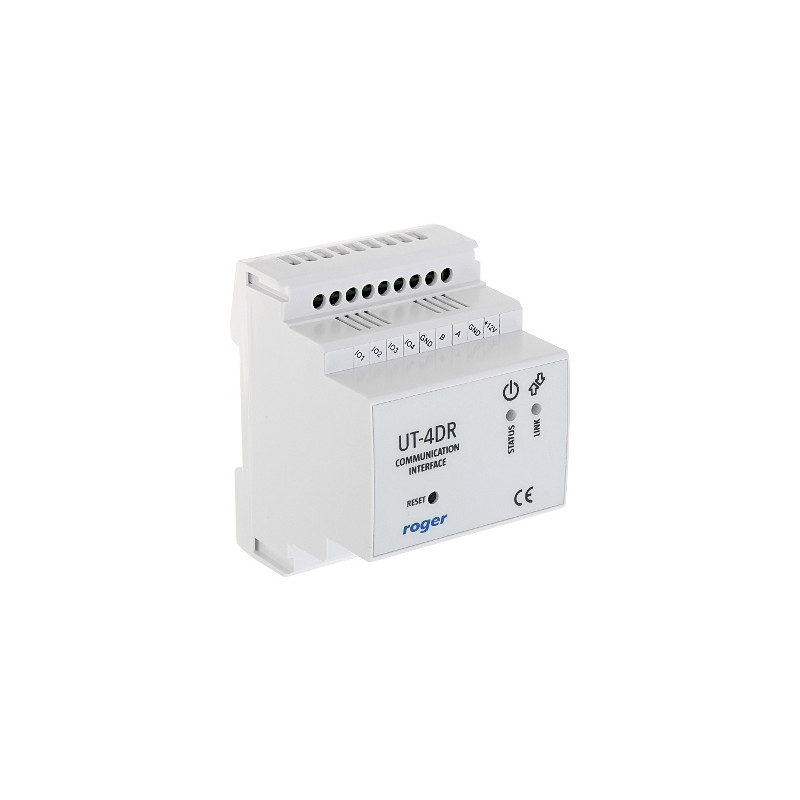

LAN to RS485 communication interface ROGER UT-4DR
zł620.18
Tax included
The UT-4DR communication interface is an advanced solution enabling seamless communication between devices equipped with a serial communication port and a computer network. The device has been designed for professional access control and automation systems where stable data transmission is required. The interface features an RS485 serial port on one side and a 10/100 BaseT Ethernet socket on the other, allowing for easy integration with existing LAN network infrastructure. Thanks to the ability to assign an individual IP address, the device is fully identifiable on the network, which significantly facilitates management and configuration. The advantage of this model is the support for both static and dynamic IP addresses, which ensures flexibility in various network environments. Additionally, the interface is equipped with 4 general-purpose I/O lines that can be controlled directly from a web browser or via Telnet protocol commands. The compact housing adapted for mounting on a TS-35 DIN rail makes the device ideal for installation in telecommunications cabinets and switchboards. High-quality workmanship and the reliability of the Roger brand guarantee long-term and trouble-free operation in demanding industrial conditions.
LAN to RS485 communication interface
Model: ROGER UT-4DR
EAN: 6931240030493 SKU: 931030498
- RS-485 communication interface
- Ethernet 10/100 Base-T interface
- Support for static or dynamic IP address
- 4 general-purpose I/O lines
- Control via web browser
- I/O line control using Telnet protocol commands
- DIN rail TS-35 mounting
Description
The UT-4DR communication interface is an advanced solution enabling seamless communication between devices equipped with a serial communication port and a computer network. The device has been designed for professional access control and automation systems where stable data transmission is required. The interface features an RS485 serial port on one side and a 10/100 BaseT Ethernet socket on the other, allowing for easy integration with existing LAN network infrastructure. Thanks to the ability to assign an individual IP address, the device is fully identifiable on the network, which significantly facilitates management and configuration. The advantage of this model is the support for both static and dynamic IP addresses, which ensures flexibility in various network environments. Additionally, the interface is equipped with 4 general-purpose I/O lines that can be controlled directly from a web browser or via Telnet protocol commands. The compact housing adapted for mounting on a TS-35 DIN rail makes the device ideal for installation in telecommunications cabinets and switchboards. High-quality workmanship and the reliability of the Roger brand guarantee long-term and trouble-free operation in demanding industrial conditions.
Specification
Communication interface
RS-485 - data transmission standard using a two-wire cable.
Ethernet interface
10/100 Base-T - standard for creating local area networks (LAN).
Selected features
Static or dynamic IP address, 4 general-purpose I/O lines, control via web browser, I/O line control using Telnet protocol commands.
Power supply
10V ... 15V DC (direct current).
Current consumption
55 mA
Operating temperature
-10 °C ... 40 °C
Permissible relative ambient humidity
10 % ... 75 % (non-condensing)
Mounting
DIN rail TS-35
Manufacturer / Brand
ROGER
Warranty
3 years
Software
The device has a built-in web server that allows for full configuration and control of the interface directly from a web browser. The user can manage the IP address, configure network parameters, and control four input/output (I/O) lines. Additionally, the interface supports the Telnet protocol, which allows for advanced control of I/O lines using text commands, which is particularly useful in industrial automation systems and integration with external control systems. The software ensures stable communication in LAN networks, enabling remote access to RS485 serial devices.
Contents
1x UT-4DR communication interface
Dimensions, Weight
Product dimensions: 62 x 85 x 73 mm (D x W x H)
Package dimensions: 80 x 110 x 105 mm (D x W x H)
Product weight: 110 g
Weight with packaging: 210 g
