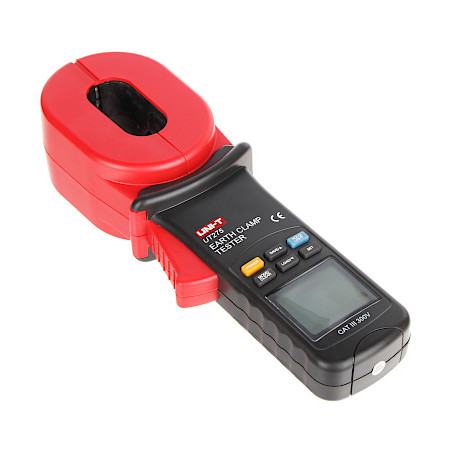

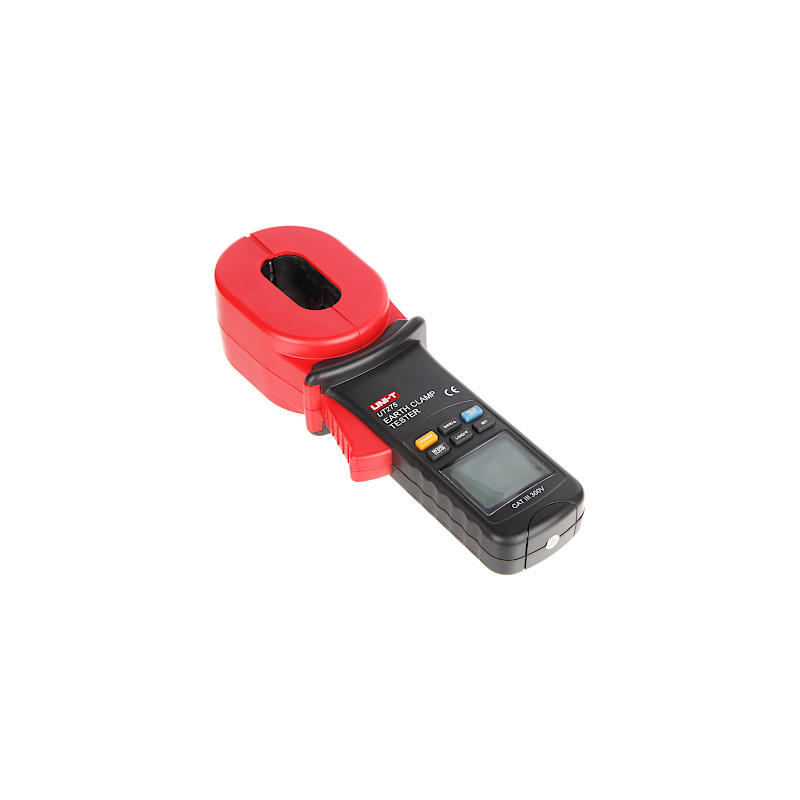

Clamp ground resistance and leakage current meter UNI-T UT-275
zł2,056.54
Tax included
The UT-275 clamp ground resistance and leakage current meter is an advanced measuring tool designed for professionals working with electrical installations and grounding systems. The device is characterized by high measurement precision and a robust design, making it a reliable choice in demanding working conditions. The main advantage of this model is the ability to perform quick and safe ground resistance measurements without the need to disconnect the circuit, which significantly reduces service and diagnostic time. Additionally, the meter allows for precise leakage current measurement, which is crucial for detecting insulation faults in industrial and domestic installations. The device is equipped with a large, clear LCD display with a backlight, ensuring comfortable operation even in poorly lit areas. Functions such as Hold and the recording of maximum and minimum values facilitate the analysis of measurement results. A solid housing and the included practical transport case guarantee the safety of the device during transport and storage. The UT-275 meter is essential equipment for every electrician, service technician, and maintenance engineer, ensuring accuracy, safety, and efficiency in daily measurement tasks.
Clamp ground resistance and leakage current meter
Model: UNI-T UT-275
EAN: 6931240031414 SKU: 931031412
- Ground resistance measurement without the need to disconnect the circuit
- AC leakage current measurement
- Automatic range selection
- Hold function - freeze the meter reading
- Freeze the highest or lowest reading
- Large, clear LCD display with backlight
- Low battery alarm
- Solid workmanship and ergonomic design
- Practical case included
Description
The UT-275 clamp ground resistance and leakage current meter is an advanced measuring tool designed for professionals working with electrical installations and grounding systems. The device is characterized by high measurement precision and a robust design, making it a reliable choice in demanding working conditions. The main advantage of this model is the ability to perform quick and safe ground resistance measurements without the need to disconnect the circuit, which significantly reduces service and diagnostic time. Additionally, the meter allows for precise leakage current measurement, which is crucial for detecting insulation faults in industrial and domestic installations. The device is equipped with a large, clear LCD display with a backlight, ensuring comfortable operation even in poorly lit areas. Functions such as Hold and the recording of maximum and minimum values facilitate the analysis of measurement results. A solid housing and the included practical transport case guarantee the safety of the device during transport and storage. The UT-275 meter is essential equipment for every electrician, service technician, and maintenance engineer, ensuring accuracy, safety, and efficiency in daily measurement tasks.
Specification
DC current measurement
None
AC current measurement
0 ... 99 mA ± (2.5% + 20 mA) @ 0.1 mA, 100 ... 299 mA (2.5% + 20 mA) @ 1 mA, 0.30 ... 2.99 A ± (2.5% + 0.1 A) @ 0.01 A, 3 ... 30 A ± (2.5% + 0.1 A) @ 0.1 A
Resistance measurement
0.01 ... 0.099 Ω ± (2% + 0.02 Ω) @ 0.001 Ω, 0.1 ... 0.99 Ω ± (2% + 0.02 Ω) @ 0.01 Ω, 1.0 ... 49.9 Ω ± (1.5% + 1 Ω) @ 0.1 Ω, 50.0 ... 99.5 Ω ± (2% + 0.5 Ω) @ 0.5 Ω, 100 ... 199 Ω ± (3% + 1 Ω) @ 1 Ω, 200 ... 395 Ω ± (10% + 5 Ω) @ 5 Ω, 400 ... 590 Ω ± (20% + 10 Ω) @ 10 Ω, 600 ... 1000 Ω ± (25% + 20 Ω) @ 20 Ω
Automatic range selection
Yes
RS-232
No
USB
No
Selected features
Freeze the highest or lowest reading, Hold - freeze the meter reading, Large, clear LCD display with backlight, Low battery alarm, Aesthetic and solid workmanship, Practical case included
Power supply
4 x 1.5V battery, type AA/LR6/FR6 - included
Manufacturer / Brand
UNI-T
Warranty
2 years
Contents
1x UT-275 clamp meter
4x 1.5V AA battery
1x Transport case
Dimensions, Weight
Product dimensions: 68 x 104 x 304 mm (D x W x H)
Packaging dimensions: 100 x 285 x 355 mm (D x W x H)
Product weight: 1330 g
Weight with packaging: 2772 g
