- New

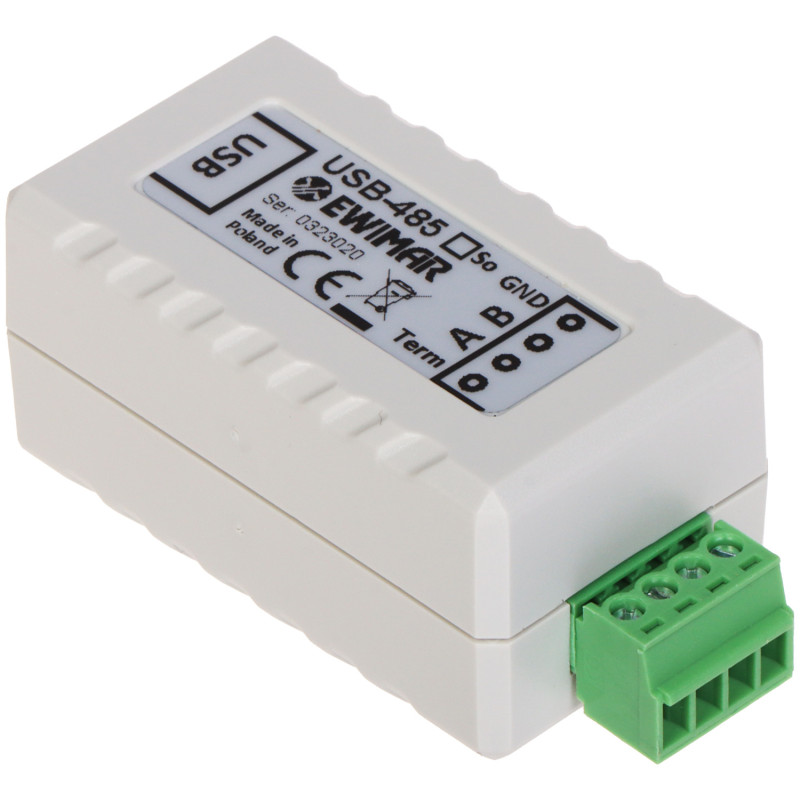

USB to RS-485 converter with FT232RL chip, 1200m range, bidirectional transmission EWIMAR USB-485/1/1
zł223.40
Tax included
The USB-485/1/1 converter is a professional device that enables seamless connection of devices controlled via the RS-485 bus to a PC equipped with a USB port. It is an ideal solution for automation systems, CCTV monitoring, and other industrial installations requiring reliable serial communication. The device is based on the proven FT232RL integrated circuit, which guarantees high operational stability, compatibility with many operating systems, and fast data transmission.
The advantages of the device primarily include smooth bidirectional transmission in half-duplex mode, which allows for effective communication with up to 32 devices simultaneously. A transmission range of up to 1200 meters makes the converter perfect for extensive installations. An additional advantage is the built-in ESD protection, which secures the equipment against electrostatic discharges. The converter is powered directly from the USB port, which eliminates the need for additional external power supplies. The device is fully compatible with Windows (7, 8.1, 10, 11) and Linux systems, making it an extremely versatile tool for installers.
USB to RS-485 converter with FT232RL chip, 1200m range, bidirectional transmission
Model: EWIMAR USB-485/1/1
EAN: 6931240087923 SKU: 931087923
- FT232RL integrated circuit ensuring high stability
- Smooth bidirectional transmission (half duplex)
- Transmission range up to 1200 meters
- Support for up to 32 devices on the bus
- Built-in ESD protection
- Powered directly from the USB port
- Compatibility with Windows and Linux systems
Description
The USB-485/1/1 converter is a professional device that enables seamless connection of devices controlled via the RS-485 bus to a PC equipped with a USB port. It is an ideal solution for automation systems, CCTV monitoring, and other industrial installations requiring reliable serial communication. The device is based on the proven FT232RL integrated circuit, which guarantees high operational stability, compatibility with many operating systems, and fast data transmission.
The advantages of the device primarily include smooth bidirectional transmission in half-duplex mode, which allows for effective communication with up to 32 devices simultaneously. A transmission range of up to 1200 meters makes the converter perfect for extensive installations. An additional advantage is the built-in ESD protection, which secures the equipment against electrostatic discharges. The converter is powered directly from the USB port, which eliminates the need for additional external power supplies. The device is fully compatible with Windows (7, 8.1, 10, 11) and Linux systems, making it an extremely versatile tool for installers.
Specification
Input
USB (Universal Serial Bus)
Number of inputs
1 pc.
Output
RS-485 (data transmission standard using a two-wire cable)
Number of outputs
1 pc.
Communication
Smooth bidirectional transmission (half duplex)
Connectors
USB, Cable terminals
Selected features
FT232RL integrated circuit, ESD protection, support for max. 32 devices
Transmission range
1200 m
Transmission speed
max. 1 Mbit
System requirements
Windows 7 / 8.1 / 10 / 11 / Linux
Power connector
USB
Power supply
from USB port
Manufacturer / Brand
EWIMAR
Warranty
2 years
Software
The device uses standard FTDI drivers for the FT232RL chip. These drivers create a virtual COM port (VCP - Virtual COM Port) in the operating system, which allows the converter to be operated by any software communicating via serial ports (e.g., terminals, software for PTZ camera configuration, building automation systems). In systems with multiple COM ports, the user can check the assigned port number in the Device Manager and change it in the advanced options if necessary, which ensures full configuration flexibility in Windows and Linux environments.
Contents
1x USB-485/1/1 converter
Dimensions, Weight
Product dimensions: 20 x 80 x 30 mm (D x W x H)
Packaging dimensions: 50 x 110 x 70 mm (D x W x H)
Product weight: 50 g
Weight with packaging: 72 g
