- New

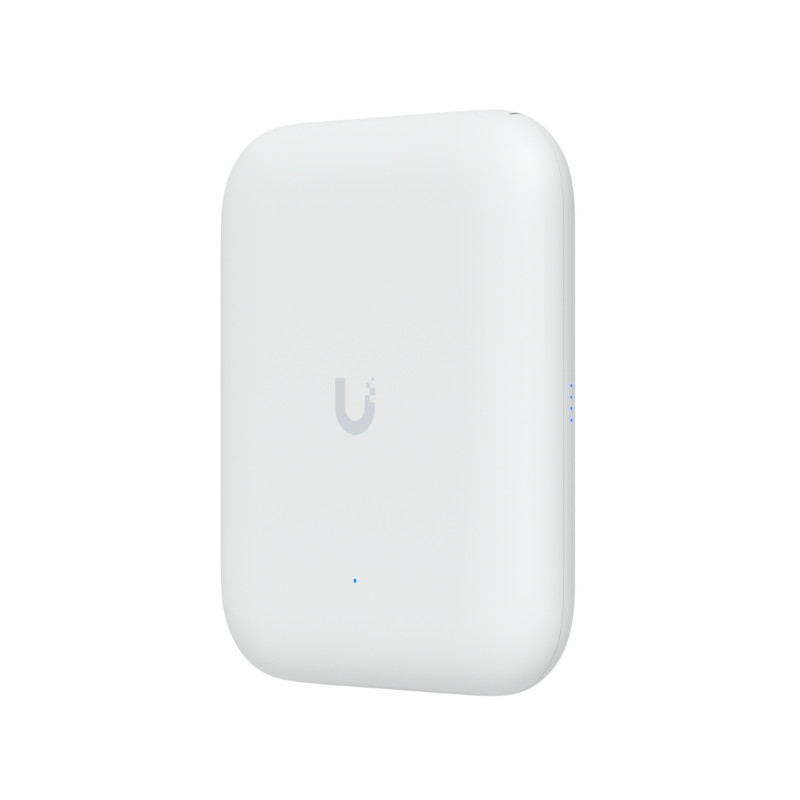

Wi-Fi 7 Access Point 2.4 GHz, 5 GHz, 688 Mbps + 4324 Mbps outdoor UBIQUITI UQ-U7-OUTDOOR
zł1,192.42
Tax included
The UQ-U7-OUTDOOR is an advanced access point operating on the WiFi 7 standard, designed for demanding outdoor installations. The device combines modern wireless technology with a robust design, making it an ideal solution for large open spaces where high performance and connection stability are required. Thanks to the use of four spatial streams and an integrated directional super antenna, the access point provides impressive coverage of up to 465 m². The user has the ability to flexibly manage the antenna beamwidth, which, combined with the included omnidirectional antennas, allows for precise adjustment of the radiation characteristics to the specific terrain.
The device supports over 200 simultaneous connections, making it perfect for high-density user environments. Equipped with a 2.5 GbE uplink, it guarantees fast data transfer without bottlenecks. Power is supplied via the PoE+ standard, which significantly simplifies installation by eliminating the need for additional power lines. The device design allows for mounting on both walls and poles with a diameter of 25 to 60 mm. High weather resistance (IPX6 ingress protection rating) ensures reliable operation in a wide temperature range from -30°C to 60°C. This is a professional networking tool that, thanks to support for Mesh technology and advanced management features, forms the foundation of a modern wireless infrastructure.
Wi-Fi 7 Access Point 2.4 GHz, 5 GHz, 688 Mbps + 4324 Mbps outdoor
Model: UBIQUITI UQ-U7-OUTDOOR
EAN: 6931240078464 SKU: 931078463
- Wi-Fi 7 standard (802.11be)
- Coverage up to 465 m²
- Support for over 200 devices
- 2.5 GbE Uplink port
- Mesh technology support
- IPX6 ingress protection rating
- Wall or pole mounting
- PoE+ IEEE 802.3at power supply
Description
The UQ-U7-OUTDOOR is an advanced access point operating on the WiFi 7 standard, designed for demanding outdoor installations. The device combines modern wireless technology with a robust design, making it an ideal solution for large open spaces where high performance and connection stability are required. Thanks to the use of four spatial streams and an integrated directional super antenna, the access point provides impressive coverage of up to 465 m². The user has the ability to flexibly manage the antenna beamwidth, which, combined with the included omnidirectional antennas, allows for precise adjustment of the radiation characteristics to the specific terrain.
The device supports over 200 simultaneous connections, making it perfect for high-density user environments. Equipped with a 2.5 GbE uplink, it guarantees fast data transfer without bottlenecks. Power is supplied via the PoE+ standard, which significantly simplifies installation by eliminating the need for additional power lines. The device design allows for mounting on both walls and poles with a diameter of 25 to 60 mm. High weather resistance (IPX6 ingress protection rating) ensures reliable operation in a wide temperature range from -30°C to 60°C. This is a professional networking tool that, thanks to support for Mesh technology and advanced management features, forms the foundation of a modern wireless infrastructure.
Specification
Frequency range
2.4 GHz, 5 GHz
Antenna type
Built-in directional antenna; 2x External omnidirectional antennas (SMA-RP connectors); 2x2 DL/UL MU-MIMO @ 2.4 GHz (8 dBi directional, 3 dBi omnidirectional); 2x2 DL/UL MU-MIMO @ 5 GHz (12.5 dBi directional, 4 dBi omnidirectional)
Standards
IEEE 802.11 b/g/n/ax/be (2.4 GHz); IEEE 802.11 a/n/ac/ax/be (5 GHz); IEEE 802.1Q VLAN; 802.1x Radius; 802.11v; 802.11k; 802.11r
Transmission speed
688 Mbps @ 2.4 GHz + 4324 Mbps @ 5 GHz
Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Device ports
1 x 1000 / 2500 Mbps Uplink
Transmitter power
23 dBm @ 2.4 GHz (max); 26 dBm @ 5 GHz (max)
Beamwidth (H/V)
2.4 GHz: 90°/90° (directional), 360°/30° (omnidirectional); 5 GHz: 45°/45° (directional), 360°/30° (omnidirectional)
Power supply
PoE+ IEEE 802.3at (42.5 - 57V DC); Power consumption: 19W
Software
The device is managed by the UniFi Network system, which offers comprehensive tools for network configuration and monitoring. Free UniFi mobile apps for Android and iOS are available, enabling remote access point management, traffic statistics viewing, guest network configuration, and firmware updates. The UniFi system provides a unified interface for multiple devices and supports advanced features such as QoS (bandwidth control), VLANs, fast roaming (802.11r), and Radio Resource Management (RRM). The application allows for intuitive installation and configuration of advanced network parameters, ensuring full control over wireless connection security and performance in real-time.
Operating conditions
Temperature: -30°C ... 60°C; Humidity: 5% ... 95% (non-condensing)
Ingress protection rating
IPX6
Weight
1.2 kg (device), 1.44 kg (with accessories)
Warranty
2 years
Contents
1x UQ-U7-OUTDOOR Access Point
1x Mounting accessories kit
Dimensions, Weight
Product dimensions: 55 x 170 x 208 mm (D x W x H)
Packaging dimensions: 105 x 270 x 225 mm (D x W x H)
Product weight: 1200 g
Weight with packaging: 1754 g
