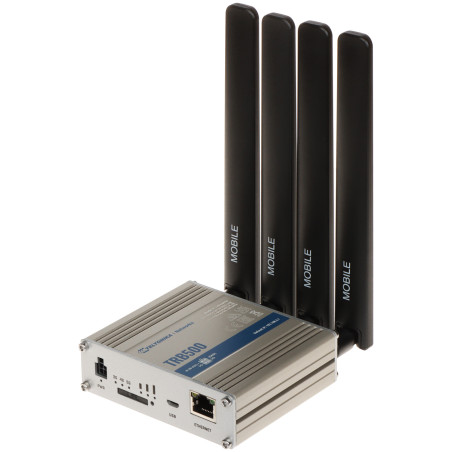

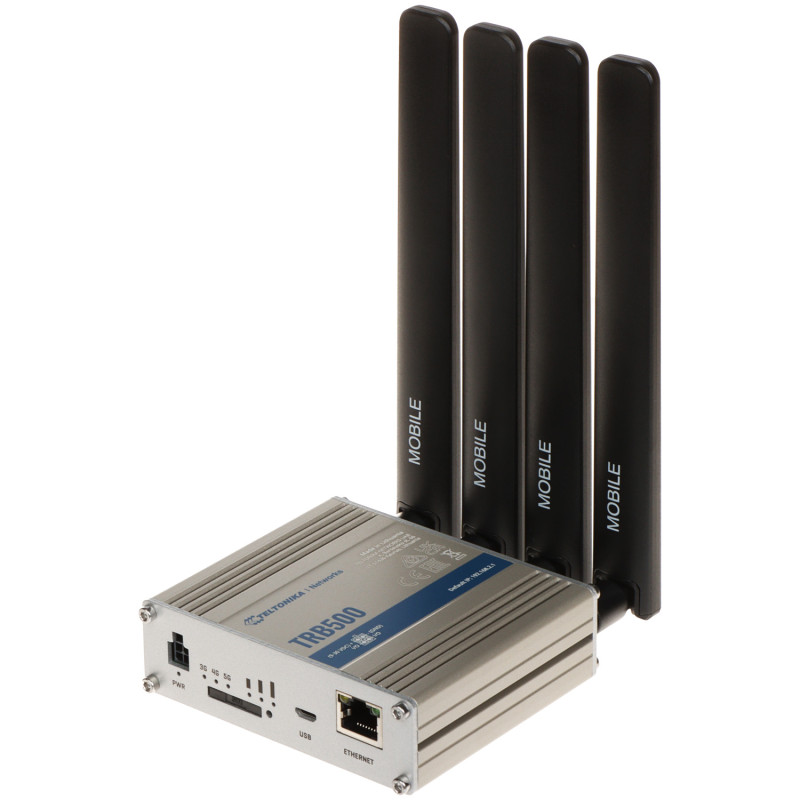

Teltonika TRB500 5G Gateway Industrial LTE 5G router with Gigabit Ethernet port Teltonika TRB500
zł2,218.16
Tax included
The TRB500 gateway is an advanced, compact, and highly energy-efficient industrial solution designed to support 5G technology. The device enables reliable connection of equipment to an Ethernet network via high-speed cellular links, making it an ideal choice for modern IoT (Internet of Things) systems. The gateway is equipped with one Gigabit Ethernet port, two configurable digital inputs/outputs, a micro USB port acting as a virtual network interface, a dedicated SIM card slot, and four SMA connectors allowing for the connection of external cellular antennas to optimize coverage.
The heart of the device is the RutOS operating system, based on the Linux kernel, which ensures stability, security, and support for a wide range of industrial protocols such as Modbus, DLMS, DNP3, or OPC UA. Thanks to full compatibility with the Teltonika RMS management system, the user gains the ability to efficiently monitor and configure the device remotely from anywhere in the world. The solid, aluminum housing with an IP30 ingress protection rating guarantees resistance to shocks and operation in harsh industrial conditions, in a wide temperature range from -40°C to 75°C. The device supports advanced network features, including VPN (IPsec, OpenVPN, L2TP), VLAN, DHCP Relay, and advanced firewall security, making it a complete tool for professional telecommunications applications.
Teltonika TRB500 5G Gateway Industrial LTE 5G router with Gigabit Ethernet port
Model: Teltonika TRB500
EAN: 6931240029671 SKU: 931029674
- Support for 5G Sub-6 SA/NSA and LTE Cat. 20 technologies
- Gigabit Ethernet port 10/100/1000 Mbps
- RutOS operating system (Linux based)
- Support for industrial protocols: Modbus, DLMS, DNP3, OPC UA
- Remote management via Teltonika RMS
- Rugged IP30 aluminum housing
- Wide supply voltage range 9-30V DC
- 4 SMA antenna connectors for signal optimization
Description
The TRB500 gateway is an advanced, compact, and highly energy-efficient industrial solution designed to support 5G technology. The device enables reliable connection of equipment to an Ethernet network via high-speed cellular links, making it an ideal choice for modern IoT (Internet of Things) systems. The gateway is equipped with one Gigabit Ethernet port, two configurable digital inputs/outputs, a micro USB port acting as a virtual network interface, a dedicated SIM card slot, and four SMA connectors allowing for the connection of external cellular antennas to optimize coverage.
The heart of the device is the RutOS operating system, based on the Linux kernel, which ensures stability, security, and support for a wide range of industrial protocols such as Modbus, DLMS, DNP3, or OPC UA. Thanks to full compatibility with the Teltonika RMS management system, the user gains the ability to efficiently monitor and configure the device remotely from anywhere in the world. The solid, aluminum housing with an IP30 ingress protection rating guarantees resistance to shocks and operation in harsh industrial conditions, in a wide temperature range from -40°C to 75°C. The device supports advanced network features, including VPN (IPsec, OpenVPN, L2TP), VLAN, DHCP Relay, and advanced firewall security, making it a complete tool for professional telecommunications applications.
Specification
Standards
5G Sub-6 SA/NSA, LTE Cat. 20, 3G WCDMA
Transmission speed
5G Sub-6 SA/NSA: 2.1 / 3.3 Gbps DL, 900 / 600 Mbps UL; 4G LTE: 2 Gbps DL, 200 Mbps UL; 3G: 42 Mbps DL, 5.76 Mbps UL
LAN ports
1 x 10/100/1000 Mbps Gigabit Ethernet
Software
The device operates under the control of RutOS, which is an advanced operating system based on the Linux kernel. This software offers extensive network configuration capabilities, including advanced static and dynamic routing, VLAN support, DHCP Relay, and support for VoIP technology. In terms of security, the system provides an advanced firewall, MAC address filtering, IEEE 802.1x/Radius authentication, and protection against DDOS, SYN, SSH, and HTTP/HTTPS attacks. The software also supports numerous VPN tunnels, such as IPsec, L2TP, PPTP, and OpenVPN, which allows for secure data transmission over public networks. Additionally, the system is fully integrated with the Teltonika RMS platform, which enables remote management, device status monitoring, firmware updates, and configuration via SMS. Support for industrial protocols (Modbus, DLMS, DNP3, OPC UA, MQTT) makes the device ready for operation in automation and IoT systems.
Security
IEEE 802.1x/Radius authentication, MAC filtering, Firewall, DDOS/SYN/SSH protection, access control, surge protection ± 1 kV
Power supply
9-30V DC, power consumption ≤ 6W
Operating temperature
-40°C ... 75°C
Ingress protection rating
IP30
SIM card slot
1 x Mini SIM (2FF)
Antenna type
4 x Omnidirectional 5G/4G/3G antenna - 4 dBi (SMA connector)
Management interface
Web browser, Teltonika RMS application, SMS
Operating system
RutOS (Linux OS based)
Dimensions
100 x 93 x 30 mm
Weight
0.34 kg
Contents
1x TRB500 Gateway
1x Power supply
1x Ethernet cable
1x USB A / micro USB B cable
Dimensions, Weight
Product dimensions: 30 x 100 x 93 mm (D x W x H)
Package dimensions: 60 x 355 x 175 mm (D x W x H)
Product weight: 340 g
Weight with packaging: 664 g
