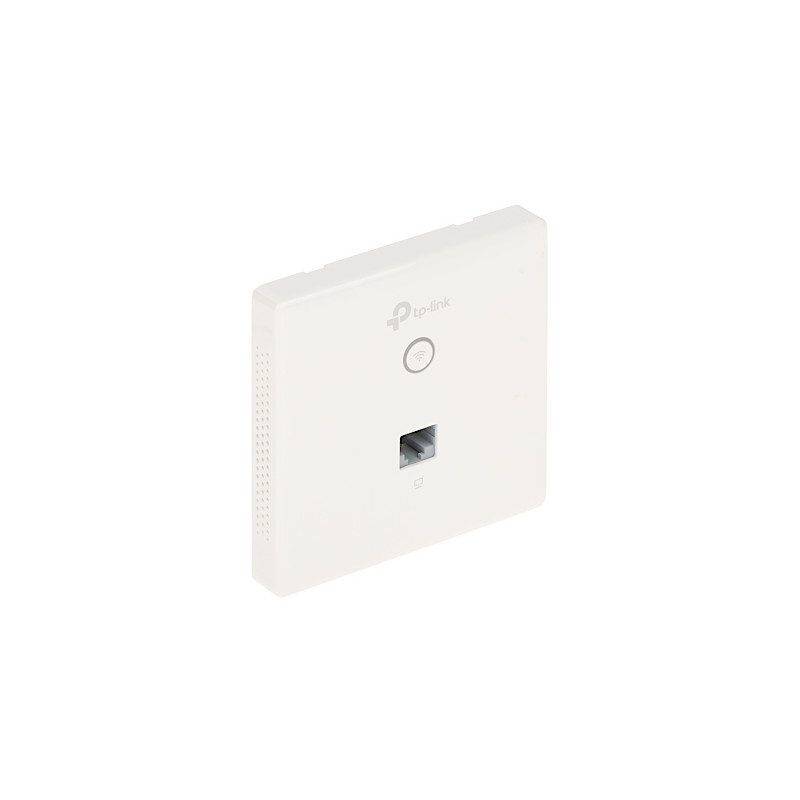

Access point 2.4 GHz 5 GHz 300 Mbps + 867 Mbps TP-LINK TL-EAP230-WALL
zł437.40
Tax included
The wireless, wall-mounted TL-EAP230-WALL access point is an advanced network solution designed for modern interiors. Its thoughtful design allows for easy and aesthetic installation in a standard junction box, making the device blend perfectly into its surroundings. Placing an EAP access point in every room guarantees a strong, stable wireless network signal, eliminating dead zones and allowing guests and household members to enjoy fast, private internet connections.
The device supports 802.11ac standards, offering a total transmission speed of up to 1167 Mbps (300 Mbps in the 2.4 GHz band and 867 Mbps in the 5 GHz band). Thanks to MU-MIMO technology, the access point effectively manages traffic for multiple devices simultaneously, which significantly increases throughput and connection reliability. Business-class security features, including WPA/WPA2-Enterprise encryption and captive portal authentication, ensure the highest level of network protection against unauthorized access.
Managing the device is extremely simple thanks to the free Omada Controller software, which allows for centralized control over the entire wireless network. The user gains access to advanced features such as network scheduling, client isolation, SSID to VLAN mapping, or load balancing. It is a professional tool that combines performance, security, and ease of use, making it an excellent choice for hotels, offices, and modern homes.
Access point 2.4 GHz 5 GHz 300 Mbps + 867 Mbps
Model: TP-LINK TL-EAP230-WALL
EAN: 6931240073070 SKU: 931073074
- Wi-Fi 802.11ac standard support
- Total transmission speed up to 1167 Mbps
- Wall mounting in a standard junction box
- Centralized management via Omada software
- MU-MIMO technology for better performance
- Business-class security (WPA/WPA2-Enterprise)
- Support for up to 16 SSIDs
- PoE power supply (802.3af/at)
Description
The wireless, wall-mounted TL-EAP230-WALL access point is an advanced network solution designed for modern interiors. Its thoughtful design allows for easy and aesthetic installation in a standard junction box, making the device blend perfectly into its surroundings. Placing an EAP access point in every room guarantees a strong, stable wireless network signal, eliminating dead zones and allowing guests and household members to enjoy fast, private internet connections.
The device supports 802.11ac standards, offering a total transmission speed of up to 1167 Mbps (300 Mbps in the 2.4 GHz band and 867 Mbps in the 5 GHz band). Thanks to MU-MIMO technology, the access point effectively manages traffic for multiple devices simultaneously, which significantly increases throughput and connection reliability. Business-class security features, including WPA/WPA2-Enterprise encryption and captive portal authentication, ensure the highest level of network protection against unauthorized access.
Managing the device is extremely simple thanks to the free Omada Controller software, which allows for centralized control over the entire wireless network. The user gains access to advanced features such as network scheduling, client isolation, SSID to VLAN mapping, or load balancing. It is a professional tool that combines performance, security, and ease of use, making it an excellent choice for hotels, offices, and modern homes.
Specification
Frequency range
2.4 GHz, 5 GHz
Antenna type
2.4 GHz: 2 x 4 dBi integrated, omnidirectional; 5 GHz: 2 x 3.6 dBi integrated, omnidirectional
Polarization
Vertical/horizontal
Standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Transmission speed
2.4 GHz: max. 300 Mbps (dynamic); 5 GHz: max. 867 Mbps (dynamic)
Security
WEP 64/128/152-bit, WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK
LAN ports
2 x 10/100/1000 Mbps
Management interface
Web browser, Omada app. The Omada Controller software is a comprehensive tool for centralized wireless network management. It allows administrators to monitor network status in real-time, configure multiple access points simultaneously, manage traffic, create guest networks (Captive Portal), and perform advanced statistical analysis. The software supports features such as load balancing, SSID to VLAN mapping, client isolation, and network schedules, making it an ideal solution for extensive network infrastructures in companies, hotels, or public facilities.
Transmitter power
< 20 dBm @ 2.4 GHz, < 23 dBm @ 5 GHz
Housing
Plastic
Power supply
PoE (802.3af/at), power consumption 7 W
Operating temperature
0 °C ... 40 °C
Humidity
10 % ... 90 %
Selected features
MU-MIMO, Omada centralized management system, 200 online users, Multi-SSID (max. 16), Load balancing, QoS, Network schedule, Captive portal authentication, Client isolation, SSID to VLAN mapping, 802.1x Radius, Built-in watchdog, E-mail notification, LED/WiFi button, RESET button
Contents
1x TL-EAP230-WALL Access Point
Dimensions, Weight
Product dimensions: 30 x 87 x 87 mm (D x W x H)
Package dimensions: 50 x 130 x 120 mm (D x W x H)
Product weight: 124 g
Weight with packaging: 240 g
