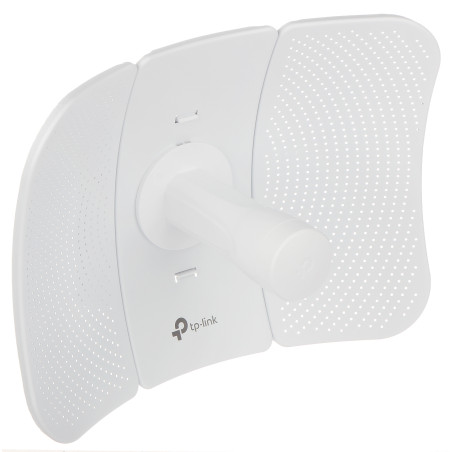

Outdoor Access Point 5GHz 150Mbps 23dBi IP65 TP-LINK TL-CPE605
zł292.86
Tax included
The TL-CPE605 outdoor access point is an advanced solution designed for efficient wireless transmission in the 5 GHz band. The device offers transmission speeds of up to 150 Mbps, making it an ideal choice for building stable point-to-point or point-to-multipoint connections over long distances, reaching up to 20 km. Thanks to the use of a high-class antenna with a 23 dBi gain, the access point provides excellent signal directionality, which translates into connection stability even in difficult terrain conditions.
The device housing is made of durable plastic (PC) and meets the IP65 ingress protection standard, which guarantees full resistance to adverse weather conditions such as rain, snow, or high humidity. The implemented TP-LINK Pharos MAXtream TDMA technology significantly improves network throughput and performance by minimizing latency. The device supports a wide range of operating modes, including WISP, Access Point, Client, Repeater, and Router, making it an extremely versatile tool for network installers. Power is supplied via passive PoE, which simplifies assembly and allows for installation in locations far from power sources. The PharOS Control central management system enables easy configuration and monitoring of device operation from a web browser.
Outdoor Access Point 5GHz 150Mbps 23dBi IP65
Model: TP-LINK TL-CPE605
EAN: 6931240027912 SKU: 931027911
- Wireless transmission up to 150 Mbps in the 5 GHz band
- High antenna gain of 23 dBi
- Weatherproof (IP65)
- TP-LINK Pharos MAXtream TDMA technology
- Transmission range up to 20 km
- Passive PoE power supply
- Multiple operating modes: AP, Client, WISP, Repeater, Bridge
- Advanced WPA/WPA2-PSK security
Description
The TL-CPE605 outdoor access point is an advanced solution designed for efficient wireless transmission in the 5 GHz band. The device offers transmission speeds of up to 150 Mbps, making it an ideal choice for building stable point-to-point or point-to-multipoint connections over long distances, reaching up to 20 km. Thanks to the use of a high-class antenna with a 23 dBi gain, the access point provides excellent signal directionality, which translates into connection stability even in difficult terrain conditions.
The device housing is made of durable plastic (PC) and meets the IP65 ingress protection standard, which guarantees full resistance to adverse weather conditions such as rain, snow, or high humidity. The implemented TP-LINK Pharos MAXtream TDMA technology significantly improves network throughput and performance by minimizing latency. The device supports a wide range of operating modes, including WISP, Access Point, Client, Repeater, and Router, making it an extremely versatile tool for network installers. Power is supplied via passive PoE, which simplifies assembly and allows for installation in locations far from power sources. The PharOS Control central management system enables easy configuration and monitoring of device operation from a web browser.
Specification
Frequency range
5150 MHz ... 5850 MHz
Antenna gain
23 dBi
Polarization
vertical/horizontal
Beamwidth
Horizontal (H): 7°, Vertical (V): 10°
Transmitter power
max. 23 dBm
Standards
IEEE 802.11 a/n
Transmission speed
max. 150 Mbps @ 40 MHz, 72.2 Mbps @ 20 MHz, 36.1 Mbps @ 10 MHz, 18.05 Mbps @ 5 MHz
LAN ports
1 x 10/100 Mbps LAN + PoE, Shielded
Operating modes
WISP, Access Point, Access Point WDS, Client, Client WDS, Router or Bridge, Repeater
Security
WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Software
The device uses the PharOS Control management system. This is advanced software dedicated to the central management of Pharos series devices. It allows network administrators to easily discover, configure, and monitor all access points in the network from a single web browser. The software offers tools such as: Antenna Alignment (precise antenna positioning), Distance Setting (distance setting for TDMA optimization), Ping Watch Dog (automatic restart in case of connection loss), and Wireless Speed Test (link throughput testing). The interface is intuitive and allows for advanced configuration of radio parameters, MAC address filtering, Multi-SSID support, and SSH management.
Processor and memory
Qualcomm 560MHz, MIPS 74Kc; 64MB DDR2, 8MB Flash
Surge protection
15 kV ESD, 6 kV lightning protection
Power supply
Passive PoE, 16V ... 27V DC (power adapter included), power consumption 6W
Contents
1x TL-CPE605 Access Point
1x PoE Power Adapter
Mounting elements
Dimensions, Weight
Product dimensions: 207 x 350 x 255 mm (D x W x H)
Packaging dimensions: 140 x 335 x 155 mm (D x W x H)
Product weight: 950 g
Weight with packaging: 1490 g
