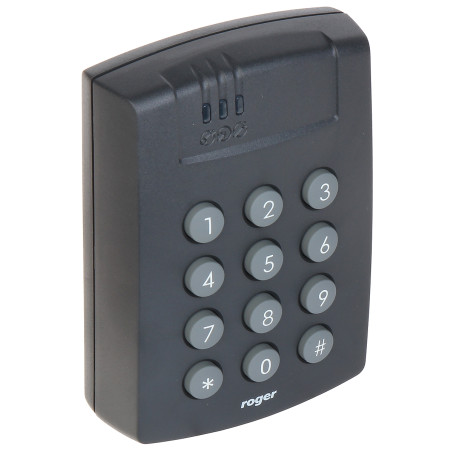

Unique 125kHz RFID proximity reader with keypad external IP67 access control Wiegand Magstripe RACS ROGER PRT64LT-G
zł398.03
Tax included
A professional proximity reader is an advanced device dedicated to access control systems, combining the functionality of a Unique 125 kHz standard card reader and a numeric keypad. The device is characterized by exceptional resistance to weather conditions, confirmed by a high IP67 ingress protection rating, allowing for outdoor installation without concerns about moisture or dust.The main advantage of this model is its communication versatility. It supports popular transmission formats such as Wiegand (26-66 bit), Magstripe (Clock & Data), and Roger's proprietary RACS protocol. As a result, the reader can work with a wide range of access controllers from various manufacturers, making it an ideal solution for both new and modernized installations.System security is enhanced by integrated tamper protection, which immediately detects attempts to open the housing or detach the device from the surface. The user receives clear feedback thanks to built-in LED indicators and audible signals. The backlit keypad ensures comfortable operation even in total darkness, which is crucial for outdoor systems.The device offers configuration flexibility – it can be programmed manually using key sequences or from a computer, which significantly speeds up the installation process in large facilities. The robust construction and 3-year manufacturer's warranty make this reader a reliable element of any professional security system, ensuring peace of mind and security for years to come.
Unique 125kHz RFID proximity reader with keypad external IP67 access control Wiegand Magstripe RACS
Model: ROGER PRT64LT-G
EAN: 6931240033289 SKU: 931033285
- Support for Unique 125 kHz standard cards and key fobs
- Built-in numeric keypad with backlight
- High IP67 ingress protection rating for outdoor applications
- Multifunctional communication interface: Wiegand, Magstripe, RACS
- Advanced tamper protection
- Optical (LED) and acoustic (buzzer) signaling
- Manual or PC-based programming
- Wide operating temperature range from -25°C to +60°C
Description
A professional proximity reader is an advanced device dedicated to access control systems, combining the functionality of a Unique 125 kHz standard card reader and a numeric keypad. The device is characterized by exceptional resistance to weather conditions, confirmed by a high IP67 ingress protection rating, allowing for outdoor installation without concerns about moisture or dust.
The main advantage of this model is its communication versatility. It supports popular transmission formats such as Wiegand (26-66 bit), Magstripe (Clock & Data), and Roger's proprietary RACS protocol. As a result, the reader can work with a wide range of access controllers from various manufacturers, making it an ideal solution for both new and modernized installations.System security is enhanced by integrated tamper protection, which immediately detects attempts to open the housing or detach the device from the surface. The user receives clear feedback thanks to built-in LED indicators and audible signals. The backlit keypad ensures comfortable operation even in total darkness, which is crucial for outdoor systems.The device offers configuration flexibility – it can be programmed manually using key sequences or from a computer, which significantly speeds up the installation process in large facilities. The robust construction and 3-year manufacturer's warranty make this reader a reliable element of any professional security system, ensuring peace of mind and security for years to come.Specification
Reading standard
Unique EM 125 kHz
Reading range
Up to 15 cm (depending on transponder type)
Keypad
Built-in, 12 keys, silicone backlight, high durability
Communication interfaces
Wiegand 26-66bit, Magstripe (Clock & Data), RACS (Roger), various PIN code transmission variants
Tamper protection
Tamper contact detecting housing opening and detachment from the surface
LED signaling
Multicolor LED indicators informing about system status and authorization
Acoustic signaling
Built-in speaker (buzzer) with external control capability
Control inputs
Separate inputs for LED indicator and speaker control
Programming
Manual (via keypad) or via computer using a dedicated interface
Power supply
10 - 15 V DC (direct current)
Current consumption
Average current consumption at 65 mA
Operating conditions
Temperature: -25°C ... 60°C, Humidity: 10% ... 95% (non-condensing)
Ingress protection rating
IP67 - full resistance to dust and water
Warranty
3 years (36 months)
Software
The device works with RogerVDM (Roger Video Door Manager) software and the RACS 4 system. The RogerVDM application is an advanced tool used for low-level configuration of devices from the Roger offer. It allows for precise setting of reader operating parameters, such as output formats (Wiegand, Magstripe), keypad operating modes, as well as configuration of control inputs and reactions to tamper events. The program interface is intuitive, allowing for quick reading of current settings, their modification, and saving to a file for archiving or duplication on other devices in the system. The software provides full control over the reader's logic, which is essential in professional access control installations.
Contents
1x Proximity reader
1x Set of mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 35 x 80 x 115 mm (D x W x H)
Packaging dimensions: 50 x 105 x 230 mm (D x W x H)
Product weight: 176 g
Weight with packaging: 268 g
