- New

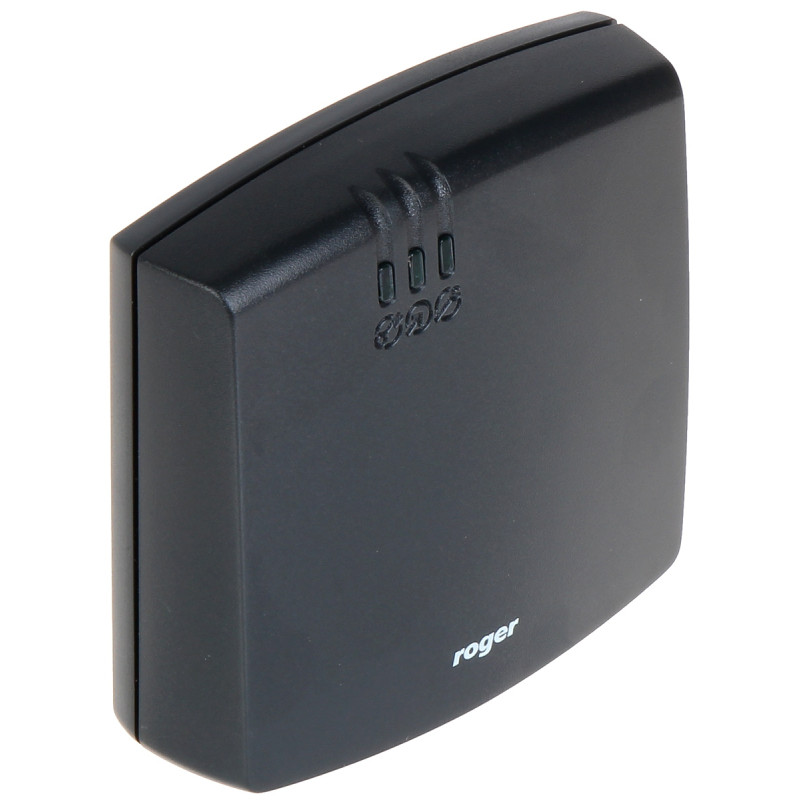

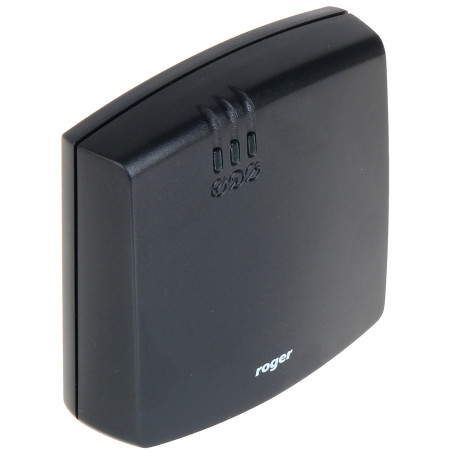

RFID Unique 125kHz external access controller RS-485 RACS standalone network proximity reader EM ROGER PR621
zł651.90
Tax included
The PR621 access controller is an advanced device from the ROGER brand that combines the functionality of a proximity reader and a controller in one compact housing. The device is designed to operate in harsh outdoor conditions, confirmed by its Class IV environmental rating and a wide operating temperature range from -25°C to +60°C. It supports the Unique 125 kHz standard, allowing for fast and seamless user identification using proximity cards or key fobs.
One of the key advantages of the PR621 model is its versatility – it can operate both in standalone mode (as an independent control point) and in network mode, integrated with the RACS system. Thanks to its built-in memory, the device can handle up to 1000 users and record up to 250,000 events, making it an ideal solution for offices, warehouses, and industrial facilities. Additionally, the controller offers advanced logic functions, such as 99 time schedules and 250 access groups.
System security is enhanced by features such as anti-passback, which prevents the same card from being used multiple times for entry without a prior exit, and a built-in tamper sensor that reacts to the opening of the housing or the detachment of the device from the wall. The robust, keypad-free construction minimizes the risk of mechanical damage and vandalism. By choosing the PR621, you gain a reliable element of an access control system characterized by simple installation, high durability, and extensive configuration options, ensuring full control over the movement of people in the protected zone.
RFID Unique 125kHz external access controller RS-485 RACS standalone network proximity reader EM
Model: ROGER PR621
EAN: 6931240076255 SKU: 931076250
- Built-in Unique EM 125kHz proximity reader
- Standalone or network (RACS) operation mode
- Support for up to 1000 indexed users
- Event history memory for up to 250,000 entries
- Advanced time schedules (99) and access groups (250)
- Anti-passback function to prevent card misuse
- Built-in tamper sensor detecting opening and detachment
- High environmental resistance (Class IV) for outdoor use
- 3 programmable input lines and 3 output lines
- Compatibility with external PRT series readers
Description
The PR621 access controller is an advanced device from the ROGER brand that combines the functionality of a proximity reader and a controller in one compact housing. The device is designed to operate in harsh outdoor conditions, confirmed by its Class IV environmental rating and a wide operating temperature range from -25°C to +60°C. It supports the Unique 125 kHz standard, allowing for fast and seamless user identification using proximity cards or key fobs.
One of the key advantages of the PR621 model is its versatility – it can operate both in standalone mode (as an independent control point) and in network mode, integrated with the RACS system. Thanks to its built-in memory, the device can handle up to 1000 users and record up to 250,000 events, making it an ideal solution for offices, warehouses, and industrial facilities. Additionally, the controller offers advanced logic functions, such as 99 time schedules and 250 access groups.
System security is enhanced by features such as anti-passback, which prevents the same card from being used multiple times for entry without a prior exit, and a built-in tamper sensor that reacts to the opening of the housing or the detachment of the device from the wall. The robust, keypad-free construction minimizes the risk of mechanical damage and vandalism. By choosing the PR621, you gain a reliable element of an access control system characterized by simple installation, high durability, and extensive configuration options, ensuring full control over the movement of people in the protected zone.
Specification
Identification standard
Unique EM 125kHz
Operating modes
Standalone or Network (Roger RACS system)
System capacity
1000 users, 250,000 events in memory, 99 time schedules, 250 access groups
Communication interface
RS-485, RACS protocol (Roger)
Inputs and Outputs
3 input lines, 3 output lines (including relay)
Relay load capacity
1.5 A / 30 V DC
Power supply
10 ... 15 V DC (direct current)
Security features
Anti-passback (protection against multiple card usage), Tamper (tamper detection - opening the housing or detachment from the surface)
Environmental class
Class IV - outdoor operation
Operating temperature
-25 °C ... 60 °C
Ambient humidity
10 ... 95 % (non-condensing)
Construction
Housing without keypad, surface mounting
Warranty
3 years (manufacturer)
Software
The RACS (Roger Access Control System) is a professional tool for security management. It enables full configuration of the PR621 controller, including defining permissions for 1000 users. The administrator can create up to 99 advanced time schedules, specifying access on specific days and hours. The system supports 250 access groups, allowing for easy management of large groups of employees. The software offers real-time event monitoring and access to a vast database of 250,000 historical events. Additionally, it supports logic functions such as Anti-passback, preventing card misuse, and integration with alarm systems via programmable input/output lines. The entire system is managed via a stable RS-485 communication bus, allowing for the creation of distributed control systems.
Contents
1x PR621 access controller
1x Set of mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 27 x 85 x 85 mm (D x W x H)
Packaging dimensions: 50 x 230 x 105 mm (D x W x H)
Product weight: 150 g
Weight with packaging: 240 g
