- New

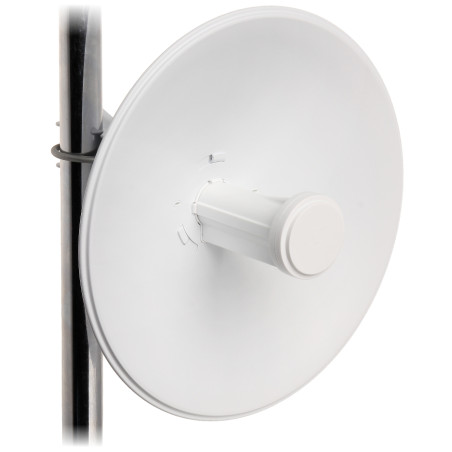

Access Point Radio Bridge Directional Antenna 5GHz 150Mbps 22dBi AirMax PoE Outdoor Network UBIQUITI PBE-M5-300
zł466.72
Tax included
The PowerBeam PBE-M5-300 is a professional, integrated radio device operating in the unlicensed 5 GHz band, designed for creating high-performance point-to-point (PtP) wireless bridges and as a high-performance client device in point-to-multipoint (PtMP) networks. Thanks to the innovative InnerFeed technology, the antenna radiator is directly integrated with the radio module, which eliminates signal losses on coaxial cables and significantly improves the efficiency of the entire system. The device is characterized by an energy gain of 22 dBi, which, combined with a powerful 26 dBm transmitter, allows for establishing stable connections over distances exceeding 20 kilometers in favorable terrain conditions.
A key advantage of the PowerBeam PBE-M5-300 is the use of the AirMax TDMA (Time Division Multiple Access) protocol. Unlike the standard Wi-Fi protocol, AirMax assigns specific time slots to each client, which eliminates packet collisions and allows for maintaining high throughput and low latency even with a large number of connected stations. The mechanical design of the device has been optimized for resistance to harsh weather conditions. The antenna dish is made of powder-coated galvanized steel, and the plastic components have UV stabilization, which guarantees many years of trouble-free operation outdoors.
Product advantages:
- Incredible real-world performance reaching up to 150 Mbps thanks to the 802.11n MIMO 2x2 standard.
- Focused signal beam minimizes the impact of ambient interference, which is crucial in noisy urban environments.
- Easy installation thanks to the included mount with precise tilt adjustment.
- Powered via passive PoE (Power over Ethernet), which simplifies installation by requiring only one twisted-pair cable.
- Advanced airOS operating system offering a rich set of diagnostic and configuration tools.
Access Point Radio Bridge Directional Antenna 5GHz 150Mbps 22dBi AirMax PoE Outdoor Network
Model: UBIQUITI PBE-M5-300
EAN: 6931240028766 SKU: 931028760
- Operation in the 5 GHz band (5170 MHz ... 5875 MHz)
- Integrated directional antenna with 22 dBi gain
- 802.11a/n MIMO 2x2 standard
- Real throughput up to 150 Mbps
- AirMax TDMA technology eliminating packet collisions
- Transmission range up to 20 km
- Passive PoE power supply (24V)
- Resistance to weather conditions and UV radiation
- Advanced ESD/EMP surge protection
Description
The PowerBeam PBE-M5-300 is a professional, integrated radio device operating in the unlicensed 5 GHz band, designed for creating high-performance point-to-point (PtP) wireless bridges and as a high-performance client device in point-to-multipoint (PtMP) networks. Thanks to the innovative InnerFeed technology, the antenna radiator is directly integrated with the radio module, which eliminates signal losses on coaxial cables and significantly improves the efficiency of the entire system. The device is characterized by an energy gain of 22 dBi, which, combined with a powerful 26 dBm transmitter, allows for establishing stable connections over distances exceeding 20 kilometers in favorable terrain conditions.
A key advantage of the PowerBeam PBE-M5-300 is the use of the AirMax TDMA (Time Division Multiple Access) protocol. Unlike the standard Wi-Fi protocol, AirMax assigns specific time slots to each client, which eliminates packet collisions and allows for maintaining high throughput and low latency even with a large number of connected stations. The mechanical design of the device has been optimized for resistance to harsh weather conditions. The antenna dish is made of powder-coated galvanized steel, and the plastic components have UV stabilization, which guarantees many years of trouble-free operation outdoors.
Product advantages:
- Incredible real-world performance reaching up to 150 Mbps thanks to the 802.11n MIMO 2x2 standard.
- Focused signal beam minimizes the impact of ambient interference, which is crucial in noisy urban environments.
- Easy installation thanks to the included mount with precise tilt adjustment.
- Powered via passive PoE (Power over Ethernet), which simplifies installation by requiring only one twisted-pair cable.
- Advanced airOS operating system offering a rich set of diagnostic and configuration tools.
Specification
Frequency range
5170 MHz ... 5875 MHz
Antenna gain
22 dBi - Integrated directional antenna
Wireless standards
802.11a/n MIMO 2x2
Maximum transmission speed
150 Mbps
Network interface
1 x 10/100 Mbps RJ45
Device operating modes
Access Point, Access Point WDS, Client, Client WDS, Router, Bridge
Security and protection
Advanced ESD/EMP surge protection
Transmitter output power
26 dBm
Hardware architecture (Memory)
64MB DDR2, 8MB Flash
Central Processing Unit (CPU)
Atheros MIPS 74KC, 560MHz
Power method
Passive PoE (24V DC)
Energy efficiency
Maximum power consumption: 6 W
Environmental parameters
Operating temperature: -40 °C ... 70 °C; Humidity: 5 % ... 95 % (non-condensing)
Software and management
The airOS operating system is Ubiquiti's proprietary solution that redefines how radio devices are managed. The system offers extremely advanced features, such as the AirMax protocol, which optimizes data transmission in high-density environments by preventing packet collisions. The user has access to airView – an integrated real-time spectrum analyzer that allows for precise location of interference sources and selection of the cleanest channel. Additionally, airOS provides detailed connection statistics, performance charts, and testing tools (ping, traceroute, speed test). The interface is fully responsive and accessible via a web browser, enabling configuration from any device. The system also supports advanced network features such as VLAN, static routing, DHCP server, and advanced QoS mechanisms, making it an ideal solution for professional ISP installations.
Contents
1x PBE-M5-300 Access Point
1x 24V PoE Power Adapter
1x Pole mounting bracket
1x User manual
Dimensions, Weight
Product dimensions: 256 x 325 x 325 mm (D x W x H)
Package dimensions: 170 x 325 x 325 mm (D x W x H)
Product weight: 1200 g
Weight with packaging: 1510 g
