- New

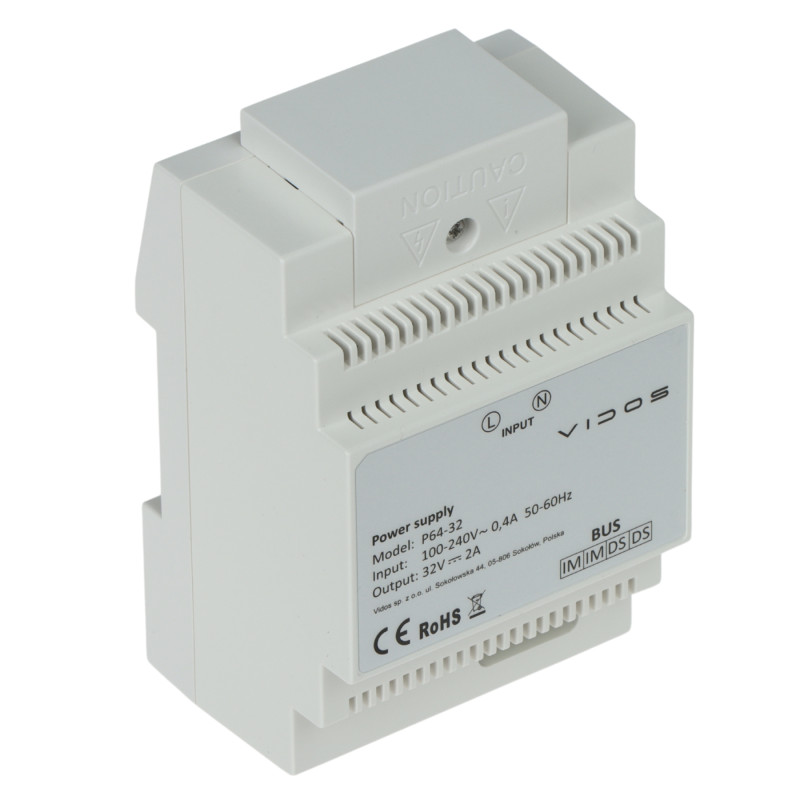

Vidos 2IP system power supply and voltage separator DIN 32V DC 2A 64W video intercom bus power VIDOS P64-32
zł219.56
Tax included
The P64-32 system power supply is a key component of the modern, two-wire Vidos 2IP video intercom system. This device has been designed to provide stable and safe power for the entire installation, combining two extremely important functions: an efficient switching power supply and a precise voltage and signal separator. Thanks to this solution, data and power transmission occur via the same pair of wires, which significantly simplifies the installation process and reduces cabling costs.
One of the most important advantages of the P64-32 model is its ability to simultaneously power up to 8 devices within the Vidos 2IP system, making it an ideal solution for both single-family homes and smaller multi-tenant buildings. The device features a wide input voltage range (100-240V AC), which guarantees stable operation even in the event of fluctuations in power grid parameters. The 32V DC output with 2A current provides a total power of 64W, which is more than sufficient for extensive video intercom sets.
Installation safety is a priority, which is why the P64-32 power supply is equipped with a comprehensive package of protections: short-circuit, overload, and overvoltage. These protect not only the power supply itself but also all connected external panels and monitors from the effects of electrical failures. The device's design allows for convenient mounting on a standard DIN rail, which enables aesthetic and organized placement in an electrical distribution board. A robust housing and a wide operating temperature range (from -10°C to 40°C) ensure longevity and reliability in daily use. By choosing the Vidos P64-32 power supply, you are investing in a professional solution that forms the foundation of a stable communication system in your home.
Vidos 2IP system power supply and voltage separator DIN 32V DC 2A 64W video intercom bus power
Model: VIDOS P64-32
EAN: 6931240034583 SKU: 931034586
- System power supply dedicated to the Vidos 2IP system
- Combines the function of a power supply and a voltage/signal separator
- Ability to power up to 8 devices simultaneously
- Wide input voltage range 100-240V AC
- Mounting on a standard DIN rail
- Complete protection system: overload, overvoltage, short-circuit
- High output power 64W at 32V DC
- Wide operating temperature range from -10°C to 40°C
Description
The P64-32 system power supply is a key component of the modern, two-wire Vidos 2IP video intercom system. This device has been designed to provide stable and safe power for the entire installation, combining two extremely important functions: an efficient switching power supply and a precise voltage and signal separator. Thanks to this solution, data and power transmission occur via the same pair of wires, which significantly simplifies the installation process and reduces cabling costs.
One of the most important advantages of the P64-32 model is its ability to simultaneously power up to 8 devices within the Vidos 2IP system, making it an ideal solution for both single-family homes and smaller multi-tenant buildings. The device features a wide input voltage range (100-240V AC), which guarantees stable operation even in the event of fluctuations in power grid parameters. The 32V DC output with 2A current provides a total power of 64W, which is more than sufficient for extensive video intercom sets.
Installation safety is a priority, which is why the P64-32 power supply is equipped with a comprehensive package of protections: short-circuit, overload, and overvoltage. These protect not only the power supply itself but also all connected external panels and monitors from the effects of electrical failures. The device's design allows for convenient mounting on a standard DIN rail, which enables aesthetic and organized placement in an electrical distribution board. A robust housing and a wide operating temperature range (from -10°C to 40°C) ensure longevity and reliability in daily use. By choosing the Vidos P64-32 power supply, you are investing in a professional solution that forms the foundation of a stable communication system in your home.
Specification
Device type
System power supply with signal separator
Purpose
Power supply and signal separation in digital video intercom systems
Compatibility
Full compatibility with the VIDOS 2IP two-wire digital system
Main functions
Combines the function of a switching power supply and a voltage/signal separator in one housing, allowing for data and power transmission over two wires without interference
Input parameters
Voltage 100 V - 240 V AC, input current 0.4 A, frequency 50/60 Hz
Output parameters
Stabilized voltage 32 V DC, maximum current 2 A
Rated power
Total output power of the device is 64 W
Current efficiency
Ability to power up to 8 system devices simultaneously (monitors, door stations)
Electrical protections
Advanced overload protection against excessive current draw, overvoltage protection eliminating the effects of voltage spikes, and short-circuit protection
Mounting method
Adapted for mounting on a standard DIN rail (modular width)
Environmental conditions
Operating temperature range from -10 °C to 40 °C, permissible ambient humidity up to 90% without condensation
Housing and construction
Made of high-quality plastic, compact design facilitating installation in distribution boards
Standards and certificates
Compliance with CE standards, manufacturer's declaration of conformity
Software and support
The Vidos 2IP system is based on advanced digital logic that enables seamless communication between modules. Although the power supply itself is a hardware device, its role in the digital bus is crucial for the stability of data transmission. The 2IP system allows for easy configuration of device addresses and support for intercom and lock control functions. Thanks to voltage stabilization by the P64-32, the user interface in monitors operates smoothly, and audio-video transmission remains free from noise and interference typical of analog systems. The system logic supports fast switching between cameras and stable maintenance of the communication session.
Contents
1x P64-32 Power supply
1x User manual in Polish
Dimensions, Weight
Product dimensions: 58 x 110 x 70 mm (D x W x H)
Packaging dimensions: 70 x 125 x 90 mm (D x W x H)
Product weight: 232 g
Weight with packaging: 298 g
