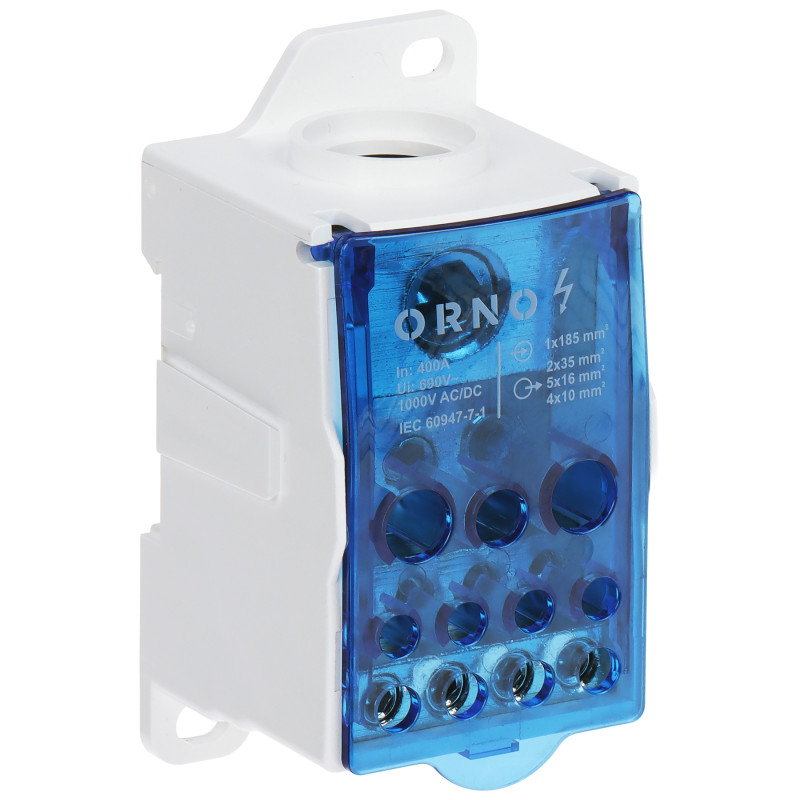

400A 1000V DIN rail distribution block terminal strip power distributor for control cabinets ORNO OR-LZ-8207/400
zł158.09
Tax included
The OR-LZ-8207/400 distribution block by ORNO is a professional solution designed for efficient and safe power distribution in control cabinets and switchgear. The device is characterized by an exceptionally high current carrying capacity of up to 400A, which allows for the support of demanding power systems. Thanks to its robust construction and the use of high-quality insulating materials, the block ensures reliability in long-term operation.
The main advantage of the product is its mounting versatility – it can be installed both on a standard TH-35 DIN rail and directly on a mounting plate using screws. This solution significantly facilitates installation work and allows for optimal space management inside the enclosure. The block is designed to operate with a rated voltage of up to 1000V AC/DC, making it an ideal choice for modern industrial and photovoltaic installations.
The use of the ORNO distribution block guarantees an aesthetic and organized cable layout, which is crucial for the safety and ease of maintenance of the installation. The product features numerous terminals with various cross-sections, which allows for the connection of a wide range of cables, from thick power cables to smaller taps. The durable plastic housing in white and blue colors not only protects against accidental contact but also facilitates the identification of current paths. By choosing this model, you are investing in a component that meets rigorous technical standards, which translates into the stability of the entire power system.
400A 1000V DIN rail distribution block terminal strip power distributor for control cabinets
Model: ORNO OR-LZ-8207/400
EAN: 6931240056073 SKU: 931056070
- High rated current 400A
- Insulation voltage up to 1000V AC/DC
- Mounting on TH-35 DIN rail or surface mounting
- 12 terminals with various cross-sections
- Durable plastic housing
- Clear wiring organization
- Compliance with CE safety standards
Description
The OR-LZ-8207/400 distribution block by ORNO is a professional solution designed for efficient and safe power distribution in control cabinets and switchgear. The device is characterized by an exceptionally high current carrying capacity of up to 400A, which allows for the support of demanding power systems. Thanks to its robust construction and the use of high-quality insulating materials, the block ensures reliability in long-term operation.
The main advantage of the product is its mounting versatility – it can be installed both on a standard TH-35 DIN rail and directly on a mounting plate using screws. This solution significantly facilitates installation work and allows for optimal space management inside the enclosure. The block is designed to operate with a rated voltage of up to 1000V AC/DC, making it an ideal choice for modern industrial and photovoltaic installations.
The use of the ORNO distribution block guarantees an aesthetic and organized cable layout, which is crucial for the safety and ease of maintenance of the installation. The product features numerous terminals with various cross-sections, which allows for the connection of a wide range of cables, from thick power cables to smaller taps. The durable plastic housing in white and blue colors not only protects against accidental contact but also facilitates the identification of current paths. By choosing this model, you are investing in a component that meets rigorous technical standards, which translates into the stability of the entire power system.
Specification
Device type
Power distribution block / Terminal strip
Manufacturer
ORNO
Model
OR-LZ-8207/400
Application
Power distribution in control cabinets, LV switchgear, industrial automation systems
Rated insulation voltage
1000 V AC/DC - ensures safe operation in high-voltage installations
Rated current
max. 400 A - enables the transmission of high power without the risk of contact overheating
Number of terminals
12 connection points
Cable cross-sections - Input
1 x 185 mm² - dedicated for the main power cable
Cable cross-sections - Output A
2 x 35 mm² - for power distribution to larger components
Cable cross-sections - Output B
5 x 16 mm² - ideal for standard load circuits
Cable cross-sections - Output C
4 x 10 mm² - intended for control and signaling circuits
Housing
Plastic, self-extinguishing, high dielectric strength
Mounting method
On TH-35 (TS-35) DIN rail or directly on a mounting plate
Color scheme
White body with blue inspection cover
Software
The device is a passive component and does not require dedicated software or mobile applications for proper operation. It has no digital interface, which eliminates the risk of software errors and ensures 100% mechanical reliability under all operating conditions. The lack of need for firmware updates makes the product completely maintenance-free throughout its entire service life, which is crucial in critical power systems.
Contents
1x Distribution block OR-LZ-8207/400
1x Integrated protective cover
Dimensions, Weight
Product dimensions: 96 x 49 x 50 mm (D x W x H)
Packaging dimensions: 100 x 55 x 57 mm (D x W x H)
Product weight: 400 g
Weight with packaging: 430 g
