- New

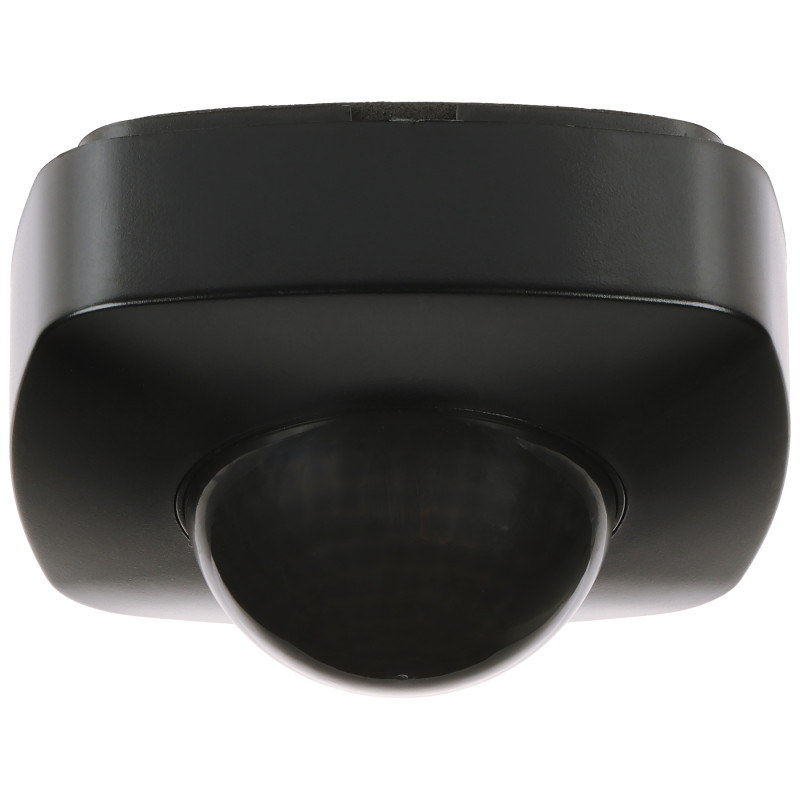

360 degree PIR ceiling motion sensor black for LED lighting 230V 6m range surface mounted infrared detector ORNO OR-CR-255/B
zł177.03
Tax included
The OR-CR-255/B ceiling motion sensor is an advanced device based on passive infrared (PIR) technology, designed for maximum energy efficiency and user convenience in modern home automation systems. The primary task of this sensor is the intelligent and automatic management of lighting systems and other electrical receivers inside buildings. Thanks to precise detection of temperature changes in the field of view, the device reacts instantly to the presence of people, which completely eliminates the need for manual light switches, which is particularly useful in corridors and passageways.
One of the key advantages of the model is its full compatibility with modern LED lighting. Many older sensor models have problems with proper operation with light-emitting diodes, but the ORNO brand product has been optimized in this regard, which guarantees stable operation without flickering or premature wear of light sources. The device offers a wide detection angle of a full 360 degrees, which, when ceiling-mounted, allows for monitoring the entire room or a significant part of it without blind spots.
The user has two key adjustment parameters that allow the sensor's operation to be adapted to individual needs. The first is the lighting hold time (TIME), adjustable in a wide range from 10 seconds to 7 minutes. The second important element is the light intensity sensitivity (LUX), which allows you to determine at what level of darkness the sensor should start working. This avoids unnecessary lighting during the day when natural light is sufficient, which directly translates into savings.
Product advantages:
- High detection precision thanks to the use of a high-quality PIR sensor with a wide viewing angle.
- Aesthetic, black housing that blends perfectly with modern interiors, lofts, and dark ceilings.
- Very low power consumption in standby mode, below 0.5W, making it an eco-friendly device.
- Ability to control high-power devices, up to 2000W for resistive loads.
- Easy surface mounting that does not require complicated construction work or specialized tools.
- Three-year warranty period confirming high quality and reliability of components.
The sensor is perfect for corridors, staircases, warehouses, garages, and office or utility rooms. Solid construction and well-thought-out electronics make it an investment that pays off quickly through a significant reduction in electrical energy waste in the facility.
360 degree PIR ceiling motion sensor black for LED lighting 230V 6m range surface mounted infrared detector
Model: OR-CR-255/B
EAN: 6931240067086 SKU: 931067089
- Passive infrared (PIR) sensor for ceiling mounting
- Full 360-degree detection angle eliminating blind spots
- Motion detection range up to 6 meters
- Full compatibility with modern LED lighting
- Adjustable lighting time (TIME) and light intensity (LUX)
- Maximum load up to 2000W (resistive) / 500W (LED)
- Elegant black housing for surface mounting
- Very low power consumption (below 0.5W)
- Wide operating temperature range from -20°C to +40°C
- 3-year manufacturer warranty
Description
The OR-CR-255/B ceiling motion sensor is an advanced device based on passive infrared (PIR) technology, designed for maximum energy efficiency and user convenience in modern home automation systems. The primary task of this sensor is the intelligent and automatic management of lighting systems and other electrical receivers inside buildings. Thanks to precise detection of temperature changes in the field of view, the device reacts instantly to the presence of people, which completely eliminates the need for manual light switches, which is particularly useful in corridors and passageways.
One of the key advantages of the model is its full compatibility with modern LED lighting. Many older sensor models have problems with proper operation with light-emitting diodes, but the ORNO brand product has been optimized in this regard, which guarantees stable operation without flickering or premature wear of light sources. The device offers a wide detection angle of a full 360 degrees, which, when ceiling-mounted, allows for monitoring the entire room or a significant part of it without blind spots.
The user has two key adjustment parameters that allow the sensor's operation to be adapted to individual needs. The first is the lighting hold time (TIME), adjustable in a wide range from 10 seconds to 7 minutes. The second important element is the light intensity sensitivity (LUX), which allows you to determine at what level of darkness the sensor should start working. This avoids unnecessary lighting during the day when natural light is sufficient, which directly translates into savings.
Product advantages:
- High detection precision thanks to the use of a high-quality PIR sensor with a wide viewing angle.
- Aesthetic, black housing that blends perfectly with modern interiors, lofts, and dark ceilings.
- Very low power consumption in standby mode, below 0.5W, making it an eco-friendly device.
- Ability to control high-power devices, up to 2000W for resistive loads.
- Easy surface mounting that does not require complicated construction work or specialized tools.
- Three-year warranty period confirming high quality and reliability of components.
The sensor is perfect for corridors, staircases, warehouses, garages, and office or utility rooms. Solid construction and well-thought-out electronics make it an investment that pays off quickly through a significant reduction in electrical energy waste in the facility.
Specification
Sensor type
Passive infrared (PIR) - an advanced system for detecting thermal radiation emitted by moving objects, which allows for precise detection of the presence of people in the protected area.
Detection angle
360° - full range of visibility around the sensor axis, eliminating blind spots when mounted centrally on the ceiling.
Range
max. 6 m - sensor operating radius measured from the mounting point, depending on ambient temperature and the direction of the object's movement.
Application
For indoor use - ideal for offices, homes, staircases, and corridors where lighting automation is required.
Sensitivity adjustment
3 ... 2000 Lux (manual adjustment) - smooth brightness threshold setting using a built-in potentiometer, allowing the sensor to work only after dusk or around the clock.
Recommended mounting height
2 ... 4 m (ceiling mounting) - optimal height ensuring the declared range and viewing angle of the device.
Violation signaling time
10 s ... 7 minutes - adjustable time during which the device remains in an active state after the last movement detected in the field of view.
Maximum output load
2000 W (resistive load - e.g., traditional bulbs, heaters), 500 W (inductive or capacitive load - e.g., modern LED lamps, energy-saving fluorescent lamps, switching power supplies).
Pet immunity
None - the sensor reacts to all objects emitting heat of appropriate size and speed of movement in the detection zone.
Selected features
Detected object speed: 0.6 ... 1.5 m/s; High-durability relay output; Full compatibility with LED lighting; LED indicators displaying the current operating status of the device; Simple and quick surface mounting.
Color
Black - elegant finish matching modern interior designs, suspended ceilings, and dark structural elements.
Ingress protection class
IP20 - protection against access to hazardous parts with a finger and against solid objects with a diameter of 12.5 mm and larger; no protection against water.
Power supply
230 V AC @ 50 Hz - standard mains voltage available in domestic and industrial installations.
Power consumption
max. 0.5 W - extremely energy-efficient design, minimizing the operating costs of the device itself in standby mode.
Operating temperature
-20 °C ... 40 °C - wide temperature range allowing for installation in unheated rooms such as garages or basements.
Dimensions and weight
Diameter 103 mm, height 59 mm; net weight of the device is 150 grams; compact housing is unobtrusive on the ceiling.
Warranty
3 years - extended manufacturer warranty period proving the high reliability of the electronic components used.
Contents
1x Ceiling motion sensor OR-CR-255/B in black
1x Set of screws and wall plugs for mounting
1x Detailed user manual and connection diagram in Polish.
Dimensions, Weight
Product dimensions: 59 x 103 x 103 mm (Depth x Width x Height)
Packaging dimensions: 70 x 110 x 110 mm (Depth x Width x Height)
Product weight: 150 g
Weight with packaging: 210 g
