- New

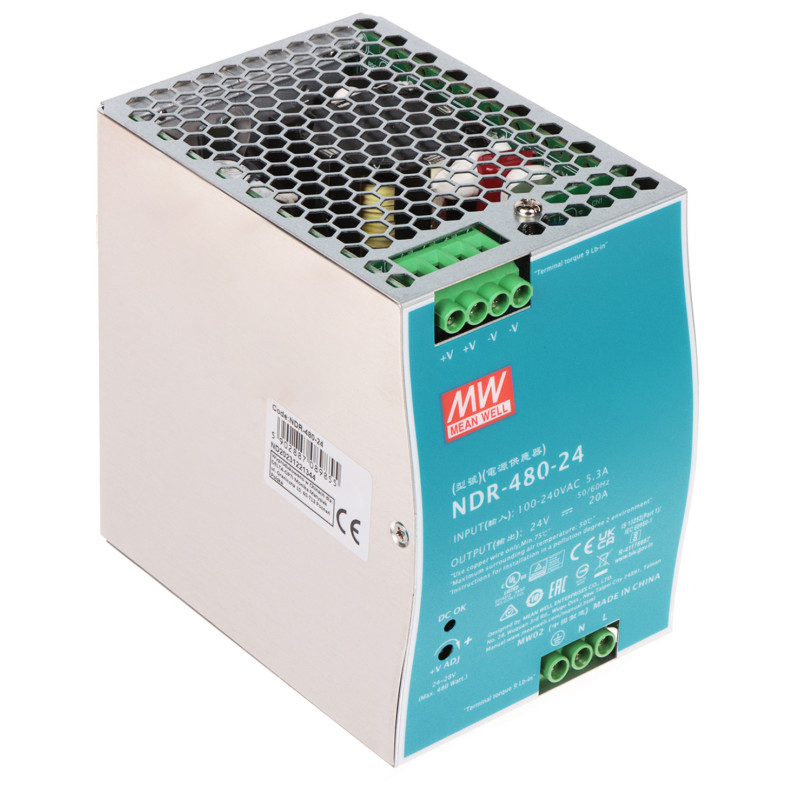

DIN Rail Switching Power Supply 24V DC 20A 480W High Efficiency MEAN WELL NDR-480-24
zł627.79
Tax included
The NDR-480-24 switching power supply from the renowned MEAN WELL brand is a high-class power device designed for professional industrial automation systems and video surveillance installations. The device is characterized by exceptional reliability and stability of output parameters, which is crucial for the safety of connected receivers.
Thanks to mounting on a standard DIN rail (TS-35/7.5 or 15), installing the power supply in control cabinets is extremely fast and convenient. One of the most important advantages of the NDR-480-24 model is its high efficiency of 92.5%, which translates into lower energy losses in the form of heat and a longer service life of components. The power supply is adapted to operate in a wide temperature range from -20°C to 70°C, which allows it to be used in demanding environmental conditions.
The solid metal housing ensures excellent heat dissipation via free air convection and high mechanical protection. The device has a number of built-in protections, including short-circuit, overload, overvoltage, and thermal protection, which guarantees continuity of operation even in emergency situations. The output voltage adjustment in the range of 24-28V DC allows for precise adjustment of parameters to the specifics of a particular installation, eliminating potential voltage drops on long cables.
This is an ideal solution for systems requiring high power (480W) and current up to 20A. The Mean Well brand is a global leader in the production of power supplies, which, combined with a 3-year manufacturer warranty, gives confidence in purchasing a top-quality product that will perform well in the most responsible industrial applications and security systems.
DIN Rail Switching Power Supply 24V DC 20A 480W High Efficiency
Model: MEAN WELL NDR-480-24
EAN: 6931240015391 SKU: 931015395
- High energy efficiency of 92.5%
- Universal AC and DC input voltage range
- Output voltage adjustable in the range of 24V - 28V
- Mounting on standard DIN rail TS-35/7.5 or 15
- Wide operating temperature range from -20°C to +70°C
- Complete set of protections: SCP, OLP, OVP, OTP
- Cooling by free air convection
- Robust industrial metal housing
- Long service life and 3-year manufacturer warranty
Description
The NDR-480-24 switching power supply from the renowned MEAN WELL brand is a high-class power device designed for professional industrial automation systems and video surveillance installations. The device is characterized by exceptional reliability and stability of output parameters, which is crucial for the safety of connected receivers.
Thanks to mounting on a standard DIN rail (TS-35/7.5 or 15), installing the power supply in control cabinets is extremely fast and convenient. One of the most important advantages of the NDR-480-24 model is its high efficiency of 92.5%, which translates into lower energy losses in the form of heat and a longer service life of components. The power supply is adapted to operate in a wide temperature range from -20°C to 70°C, which allows it to be used in demanding environmental conditions.
The solid metal housing ensures excellent heat dissipation via free air convection and high mechanical protection. The device has a number of built-in protections, including short-circuit, overload, overvoltage, and thermal protection, which guarantees continuity of operation even in emergency situations. The output voltage adjustment in the range of 24-28V DC allows for precise adjustment of parameters to the specifics of a particular installation, eliminating potential voltage drops on long cables.
This is an ideal solution for systems requiring high power (480W) and current up to 20A. The Mean Well brand is a global leader in the production of power supplies, which, combined with a 3-year manufacturer warranty, gives confidence in purchasing a top-quality product that will perform well in the most responsible industrial applications and security systems.
Specification
Power supply type
Switching - advanced energy conversion technology based on fast switching of power transistors and a high-frequency transformer, ensuring high efficiency with small dimensions.
AC supply voltage
90 V ... 264 V AC - wide input range allowing for stable operation during voltage fluctuations in the power grid.
DC supply voltage
127 V ... 370 V DC - possibility of DC power supply, which is useful in specialized backup power systems.
Output voltage
24 V DC - stabilized DC voltage, ideal for PLC controllers, sensors, and industrial cameras.
Output voltage adjustment
24 V ... 28 V DC - built-in potentiometer allows for precise voltage tuning to compensate for voltage drops on cables.
Power supply current efficiency
20 A - maximum continuous current that the device can deliver to the load while maintaining rated parameters.
Power supply power
480 W - total output power of the device, allowing for powering extensive automation systems.
Number of outputs
1 pc. - single output section with high current efficiency.
Efficiency
92.5 % - high efficiency coefficient minimizing energy losses and device heating.
Housing type
DIN - standard industrial housing adapted for quick mounting in distribution cabinets.
Protections
Short-circuit (SCP), Overload (OLP - 105%~130% power), Overvoltage (OVP), Thermal (OTP) - full protection of the power supply and receivers.
Operating temperature / humidity
-20 °C ... 70 °C / 20 % ... 95 % RH - adapted for operation in difficult industrial conditions without water vapor condensation.
Dimensions
140 x 125 x 86 mm - compact design saving space on the mounting rail.
Warranty
3 years - long warranty protection period confirming the high quality of Mean Well components.
Contents
1x NDR-480-24 switching power supply
1x Installation and operation manual
Dimensions, Weight
Product dimensions: 140 x 86 x 125 mm (D x W x H)
Package dimensions: 170 x 150 x 120 mm (D x W x H)
Product weight: 1430 g
Weight with packaging: 1512 g
