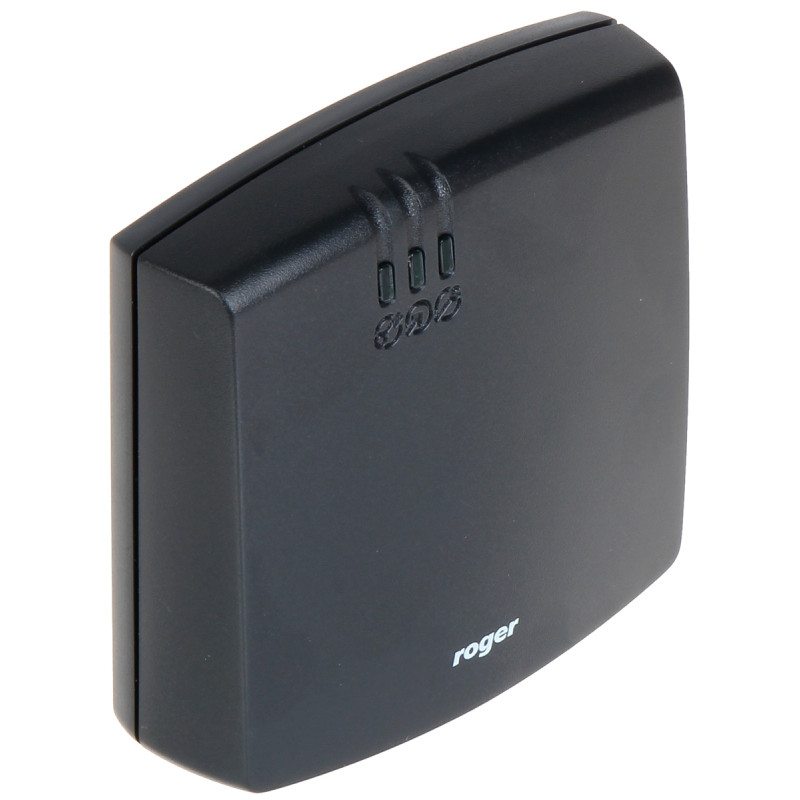

RFID Unique 125kHz RS-485 RACS 5 external proximity reader IP65 alarm inputs outputs access control ROGER MCT66E-IO
zł427.92
Tax included
The MCT66E-IO is an advanced external proximity reader designed by the renowned company Roger, a leader in access control systems. This device is a key component of modern security systems, offering reliable user identification using cards and key fobs operating in the Unique 125 kHz standard. Thanks to its robust construction and high IP65 ingress protection rating, the reader performs perfectly in harsh weather conditions, ensuring longevity and operational stability regardless of the weather.
The main advantage of this model is its full integration with the RACS 5 system, which allows for the creation of extensive and scalable security installations. The device is equipped with three programmable NO/NC input lines, two transistor outputs, and one relay output, which significantly expands its functionality – it can control bolts, electromagnetic locks, or alarm sounders without the need for additional intermediate modules. Installation security is enhanced by advanced tamper protection, which immediately detects attempts to open the housing or detach the device from the surface.
The aesthetic, black housing with compact dimensions ensures that the reader blends discreetly with the building facade or interior decor, while providing intuitive operation thanks to clear LED and acoustic signaling. By choosing a Roger brand solution, you are investing in proven technology that combines high functionality, resistance to external factors, and ease of configuration within professional access management systems.
RFID Unique 125kHz RS-485 RACS 5 external proximity reader IP65 alarm inputs outputs access control
Model: ROGER MCT66E-IO
EAN: 6931240047378 SKU: 931047372
- Support for Unique 125 kHz standard (cards and key fobs)
- System communication via RS-485 interface
- Full compatibility with the RACS 5 access control system
- Three programmable NO/NC input lines
- Two 15V / 1A transistor outputs
- One NO/NC 30V / 1.5A relay output
- High IP65 ingress protection rating for outdoor installation
- Advanced tamper protection
- Optical signaling via LED diodes
- Built-in speaker for acoustic signaling
Description
The MCT66E-IO is an advanced external proximity reader designed by the renowned company Roger, a leader in access control systems. This device is a key component of modern security systems, offering reliable user identification using cards and key fobs operating in the Unique 125 kHz standard. Thanks to its robust construction and high IP65 ingress protection rating, the reader performs perfectly in harsh weather conditions, ensuring longevity and operational stability regardless of the weather.
The main advantage of this model is its full integration with the RACS 5 system, which allows for the creation of extensive and scalable security installations. The device is equipped with three programmable NO/NC input lines, two transistor outputs, and one relay output, which significantly expands its functionality – it can control bolts, electromagnetic locks, or alarm sounders without the need for additional intermediate modules. Installation security is enhanced by advanced tamper protection, which immediately detects attempts to open the housing or detach the device from the surface.
The aesthetic, black housing with compact dimensions ensures that the reader blends discreetly with the building facade or interior decor, while providing intuitive operation thanks to clear LED and acoustic signaling. By choosing a Roger brand solution, you are investing in proven technology that combines high functionality, resistance to external factors, and ease of configuration within professional access management systems.
Specification
Identification standard
The device supports the popular Unique EM 125kHz standard, which allows for fast and contactless reading of proximity cards and key fobs from a distance of up to 7 centimeters, ensuring user convenience in daily access control.
System communication
The reader uses the RS-485 communication bus, which enables a stable connection with Roger's RACS 5 system controllers over long distances while maintaining high resistance to interference.
Input lines
Equipped with 3 programmable NO/NC input lines that can be used to monitor the status of doors, exit buttons, or other sensors in the alarm system.
Transistor outputs
Features 2 transistor outputs with a load capacity of up to 15V DC and 1A current, ideal for controlling additional signaling modules or auxiliary relays.
Relay output
The built-in NO/NC relay output with 30V / 1.5A parameters allows for direct control of electric strikes, electromagnetic locks, or other automation actuators.
Optical and acoustic signaling
The device has built-in LED diodes and a buzzer that inform the user about access granted, denied, or system alarm status, which significantly increases operational comfort.
Tamper protection
Full tamper protection including detection of housing opening and detection of the device being detached from the mounting surface, which prevents unauthorized interference with the equipment.
Ingress protection rating
The IP65 protection rating guarantees complete dust tightness and resistance to water jets, making the reader an ideal solution for outdoor installation in variable weather conditions.
Environmental conditions
The device is adapted to operate in a wide temperature range from -25°C to +60°C and at relative humidity up to 95% without condensation.
Power supply and current consumption
The required supply voltage is in the range of 10 - 15V DC. The average current consumption is only 40 mA, making the device an energy-efficient element of the system.
Construction and mounting
Housing made of high-quality black plastic, designed for surface mounting. Compact dimensions of 85 x 85 x 27 mm facilitate installation in narrow spaces.
Compatibility
The reader is dedicated to working within the modern RACS 5 access control system developed by Roger, supporting the full logic of this environment.
Management software
The RACS 5 system works with advanced VISO software, which is the heart of access control management. The VISO application enables full, centralized device configuration, user database management, and the definition of complex building automation scenarios. The user has access to modules for real-time event monitoring, attendance list creation, and integration with alarm systems and CCTV. The system architecture allows for local network operation and remote access, ensuring the highest level of security and flexibility in facility management. The software also supports system status visualization on interactive facility plans.
Warranty
The manufacturer provides a 3-year warranty period, which confirms the high quality of workmanship and reliability of the device in professional security installations.
Certification
The product has a CE declaration of conformity, meeting rigorous European standards regarding safety and electromagnetic compatibility.
Contents
1x MCT66E-IO reader
1x Set of mounting screws and wall plugs
1x User and installation manual
Dimensions, Weight
Product dimensions: 27 x 85 x 85 mm (D x W x H)
Package dimensions: 50 x 230 x 105 mm (D x W x H)
Product weight: 140 g
Weight with packaging: 216 g
