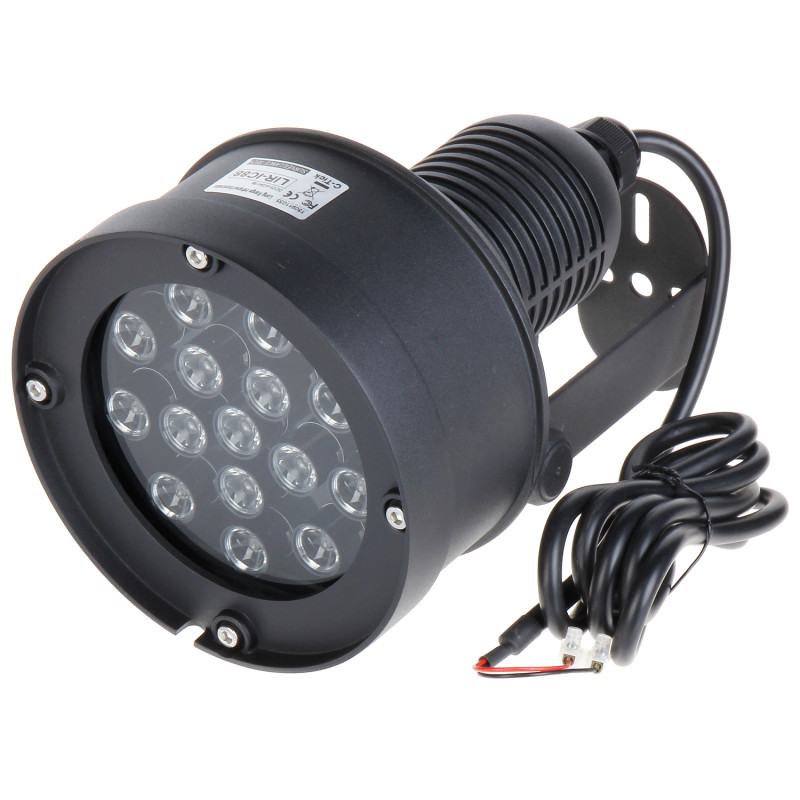

External Infrared Illuminator 120m 60 degrees IP66 Twilight Sensor Metal 12V 24V Power Supply IR LAB LIR-IB88
zł756.60
Tax included
The professional LIR-IB88 external infrared illuminator is an advanced optical device designed to significantly improve the visibility of video surveillance systems in total darkness. Thanks to the use of high-quality IR LEDs, the illuminator offers an impressive range of up to 120 meters, making it an ideal solution for securing large areas such as parking lots, storage yards, or industrial sites.
The main advantage of the device is the built-in intelligent twilight switch, which automatically activates the illuminator at dusk and turns it off at dawn. This solution not only increases the lifespan of the LEDs but also significantly reduces operating costs by optimizing energy consumption. The robust, metal housing with an IP66 rating guarantees full resistance to harsh weather conditions, including heavy rain, snow, and dust. The illuminator is designed to operate in a wide temperature range from -30°C to +40°C, ensuring reliability all year round.
A wide 60-degree beam angle ensures uniform illumination of the frame, eliminating the spot-overexposure effect and allowing cameras to record detailed images over a long distance. Another advantage is the flexibility of the power supply – the device can be powered by both 12V DC and 24V AC, which facilitates integration with existing CCTV power systems. The aesthetic design and compact dimensions allow for discreet mounting on building facades or dedicated masts. By choosing this model, you are investing in safety and the highest quality of night vision, which is crucial for effective event identification in industrial television systems. The device is fully compatible with all cameras sensitive to the 850nm infrared band.
External Infrared Illuminator 120m 60 degrees IP66 Twilight Sensor Metal 12V 24V Power Supply
Model: IR LAB LIR-IB88
EAN: 6931240027141 SKU: 931027148
- Very long illumination range of up to 120 meters
- Wide 60-degree beam angle for optimal area coverage
- Built-in automatic twilight switch for energy saving
- High IP66 ingress protection rating for operation in harsh conditions
- Robust metal housing resistant to external factors
- Power supply support for 12V DC or 24V AC
- Long IR LED lifespan due to optimal heat dissipation
- Standard 850nm wavelength compatible with most CCTV cameras
Description
The professional LIR-IB88 external infrared illuminator is an advanced optical device designed to significantly improve the visibility of video surveillance systems in total darkness. Thanks to the use of high-quality IR LEDs, the illuminator offers an impressive range of up to 120 meters, making it an ideal solution for securing large areas such as parking lots, storage yards, or industrial sites.
The main advantage of the device is the built-in intelligent twilight switch, which automatically activates the illuminator at dusk and turns it off at dawn. This solution not only increases the lifespan of the LEDs but also significantly reduces operating costs by optimizing energy consumption. The robust, metal housing with an IP66 rating guarantees full resistance to harsh weather conditions, including heavy rain, snow, and dust. The illuminator is designed to operate in a wide temperature range from -30°C to +40°C, ensuring reliability all year round.
A wide 60-degree beam angle ensures uniform illumination of the frame, eliminating the spot-overexposure effect and allowing cameras to record detailed images over a long distance. Another advantage is the flexibility of the power supply – the device can be powered by both 12V DC and 24V AC, which facilitates integration with existing CCTV power systems. The aesthetic design and compact dimensions allow for discreet mounting on building facades or dedicated masts. By choosing this model, you are investing in safety and the highest quality of night vision, which is crucial for effective event identification in industrial television systems. The device is fully compatible with all cameras sensitive to the 850nm infrared band.
Specification
Illumination range
The maximum range is up to 120 meters, which allows for effective illumination of very large outdoor spaces at night, such as industrial facilities or extensive properties.
Beam angle
60 degrees, providing a wide field of view and optimal coverage of the area in front of the camera, eliminating blind spots in night illumination.
Optical wavelength
850 nm - standard infrared wavelength providing the best sensitivity for most modern IP and analog camera sensors.
Twilight switch
Built-in automatic sensor that controls the device's operation depending on ambient light intensity, which significantly extends the trouble-free operation of the LEDs.
Housing
Made of high-quality metal alloy, powder-coated, resistant to corrosion, mechanical damage, and vandalism.
Ingress protection rating
IP66 - provides full protection against dust ingress and protection against strong water jets from any direction, ideal for outdoor mounting.
Operating temperature
Wide temperature range from -30 °C to 40 °C, which guarantees stable operation of the device in variable climatic conditions throughout the year.
DC power supply
12 V DC / 1.2 A - requires a stabilized DC power supply with sufficient current capacity to ensure full illumination power.
AC power supply
24 V AC / 950 mA - possibility of powering from AC transformers, which is common in professional low-voltage installations.
Power consumption
Maximum approximately 14.4W when powered by DC, which demonstrates high light efficiency while maintaining relatively low electricity consumption.
Application
External CCTV systems, night illumination for IP, AHD, CVI, and TVI cameras in places with insufficient natural light.
Mounting
Integrated bracket with multi-plane adjustment, allowing for precise aiming of the light beam at the observed object.
Physical dimensions
The diameter of the illuminator is 157 mm, and its length is 228 mm. The design has been engineered to effectively dissipate the heat generated by the LEDs.
Warranty and Certificates
The product is covered by a 24-month manufacturer's warranty. It has a CE certificate confirming compliance with European safety and compatibility standards.
Contents
1x LIR-IB88 Infrared Illuminator
1x Set of mounting plugs and screws
1x User manual in Polish
Dimensions, Weight
Product dimensions: 228 x 157 x 157 mm (D x W x H)
Package dimensions: 180 x 290 x 210 mm (D x W x H)
Product weight: 1970 g
Weight with packaging: 2280 g
