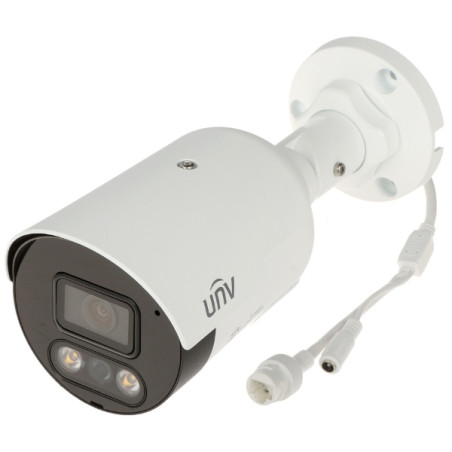

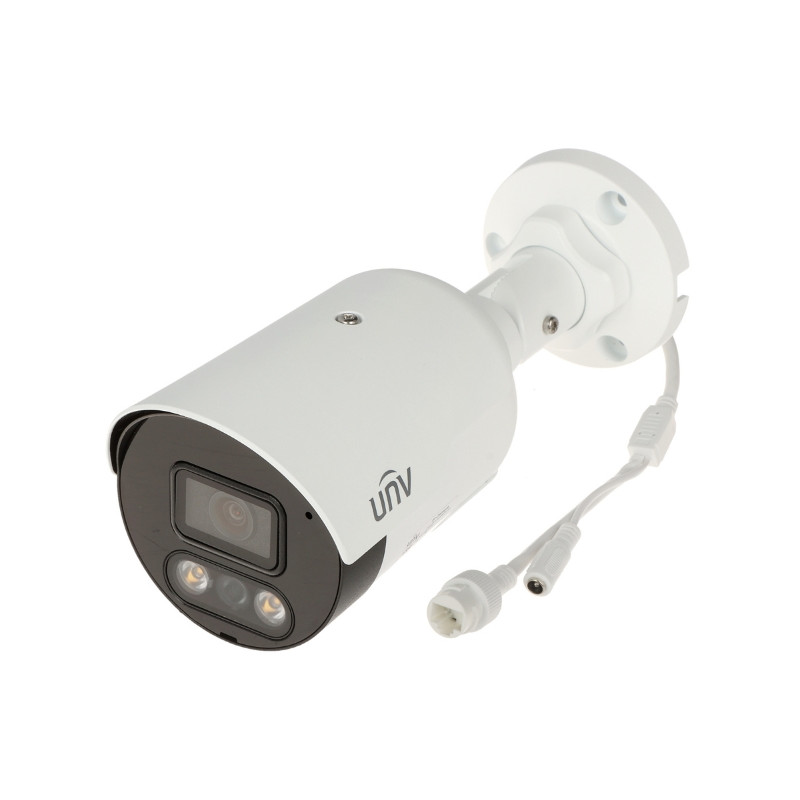

8Mpx 4K UHD ColorHunter Wise-ISP Tri-Guard IP Camera 2.8mm Lens 40m IR LED Audio PoE IP67 Active Deterrence

Model: UNIVIEW IPC2128SB-ADF28KMC-I1

EAN: 6931240049716 SKU: 931049714

• Resolution 8 Mpx - 4K UHD (3840 x 2160)
• ColorHunter technology - full-color image at night
• Wise-ISP - advanced image processing in low light
• Tri-Guard - perimeter protection, active deterrence and 24/7 color
• Built-in microphone and speaker (two-way audio)
• Active deterrence with white light and sound
• Intelligent image analysis IVS (humans, vehicles, intrusion)
• IR and LED illuminator range up to 40 meters
• Support for microSD cards up to 512 GB
• Ingress protection IP67
• Power supply PoE (802.3af) or 12V DC
• Wide Dynamic Range WDR 130 dB

Description

The IPC2128SB-ADF28KMC-I1 is an advanced IP bullet camera offering an incredible 8 Mpx (4K UHD) resolution, which guarantees a crystal-clear image full of detail. Thanks to innovative ColorHunter and Wise-ISP technology, the device delivers a color image even in extremely difficult lighting conditions, eliminating traditional black-and-white night recordings. Tri-Guard technology integrates intelligent perimeter protection, active light and sound deterrence, and 24/7 color monitoring.

The camera has a built-in speaker and microphone, which enables two-way communication and the emission of voice messages in the event of an intruder being detected. Intelligent image analysis (IVS) allows for precise detection of people and vehicles, minimizing false alarms caused by the movement of plants or animals. A robust IP67-rated housing ensures reliability in all weather conditions, from heavy rain to frost. Support for the Ultra 265 standard significantly reduces data storage costs on a microSD card (up to 512GB) or network video recorder. Power over PoE facilitates installation, reducing the number of cables required.

Product advantages:

1. 4K UHD resolution: Provides the highest image quality, allowing for face identification and detail recognition from a long distance.

2. ColorHunter technology: Guarantees a 24/7 color image, which is crucial for identifying the color of clothing or vehicles.

3. Active Deterrence: Built-in white light and speaker allow for immediate reaction and deterrence of an intruder.

4. Intelligent IVS Analysis: Object classification (human/vehicle) drastically reduces the number of false notifications.

5. Two-way Audio: Ability to talk to a person in front of the camera or issue voice commands.

6. IP67 Resistance: Full protection against dust and water, ideal for outdoor installation.

7. Efficient Ultra 265 Compression: Disk space savings of up to 75%.

8. Wide Dynamic Range WDR 130dB: Excellent visibility in scenes with high lighting contrast.

Specification

Standard

IP

Sensor

1/2.7 " CMOS

Matrix size

8 Mpx

Resolution

3840 x 2160 - 8 Mpx 4K UHD, 3072 x 1728 - 5 Mpx, 2560 x 1440 - 4 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p

Lens

2.8 mm

Viewing angle

98.7 °

IR illuminator range

40 m

White light illuminator range (LED)

40 m

Signal-to-noise ratio (S/N)

> 56 dB

Memory card slot

Support for Micro SD cards up to 512GB

Image compression method

Ultra 265 / H.265 / H.264 / MJPEG

Audio

Built-in microphone, Built-in speaker, Sound detection, Two-way audio support

Main stream transmission speed

25 fps @ 8 Mpx

Network interface

10/100 Base-TX (RJ-45)

WEB Server

Built-in

ONVIF

Yes

Mobile phone access

Cloud access (P2P); Android: Free UNV-Link application; iOS (iPhone): Free UNV-Link application

Default IP address / Login

DHCP or 192.168.1.13 / admin / 123456

Intelligent image analysis

Line crossing, intrusion, area entry/exit detection, people counting, crowd density estimation

Selected functions

ColorHunter (color at night), Active deterrence (light/sound), WDR - 130 dB, 2D-DNR, 3D-DNR, F-DNR (Defog), ROI, ANR, NAS support, Corridor mode, BLC/HLC, Privacy zones (4), Motion detection (human/vehicle), 4 kV surge protection

Software

UNV-Link and EZStation software are comprehensive tools for managing the monitoring system. The UNV-Link mobile application (Android/iOS) enables instant live viewing via the P2P cloud, playback of recordings, and receiving push notifications about alarm events in real-time. The EZStation program for PCs offers advanced features for managing multiple devices, configuring recording schedules, e-maps, and support for intelligent image analysis. The EZTools utility is used for quick searching of cameras on the local network, firmware updates, and mass configuration of network parameters, which significantly speeds up the system deployment process.

Power supply and power consumption

PoE (802.3af), 12 V DC / 910 mA; Power consumption: ≤ 11 W

Housing and operating conditions

Bullet (Metal + Plastic), Color: White, Ingress protection: IP67, Operating temperature: -30 °C ... 60 °C

NDAA Certificate

Yes

Contents

1x IP Camera

1x Mounting kit

1x User manual

Dimensions, Weight

Product dimensions: 192 x 75 x 74 mm (D x W x H)

Package dimensions: 215 x 105 x 110 mm (D x W x H)

Product weight: 410 g

Weight with package: 574 g
