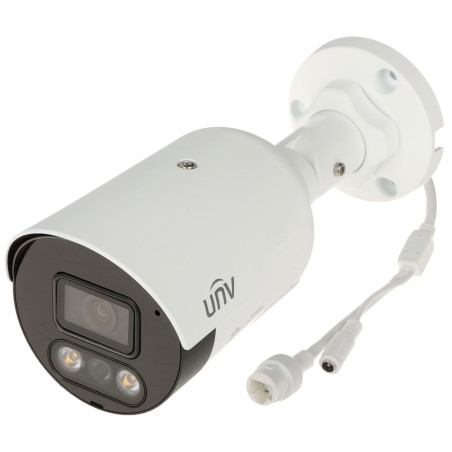

4MP 2.8mm IP Camera ColorHunter Wise-ISP Tri-Guard IR 40m LED 40m Audio PoE Outdoor Bullet WDR 130dB IVS

Model: UNIVIEW IPC2124SB-ADF28KMC-I1

EAN: 6931240012185 SKU: 931012181

• ColorHunter technology - 24/7 full-color image
• Wise-ISP - intelligent image quality enhancement in low light
• Tri-Guard - active deterrence with light and sound
• 4 MP resolution (2688 x 1520) at 25 fps
• Wide Dynamic Range WDR 130 dB
• Intelligent IVS image analysis with human/vehicle classification
• Built-in microphone and speaker (two-way audio)
• IR and LED illuminator range up to 40 meters
• Support for microSD cards up to 512 GB and NAS recording
• IP67 ingress protection - full resistance to outdoor conditions
• Ultra 265 compression for bandwidth and storage savings
• PoE (802.3af) or 12V DC power supply

Description

The IPC2124SB-ADF28KMC-I1 IP camera is a professional video surveillance solution that combines the latest Uniview technologies: ColorHunter, Wise-ISP, and Tri-Guard. Thanks to the use of an innovative 1/2.9-inch CMOS sensor and Wise-ISP technology, the device delivers an exceptionally clear and detailed image in 4 MP resolution, even in extremely difficult lighting conditions. ColorHunter technology guarantees a full-color image around the clock, which allows for much easier identification of people and vehicles compared to traditional black-and-white cameras.

One of the key advantages of this model is the Tri-Guard active deterrence function. The camera is equipped with a speaker and white LED light, which can be automatically activated upon detecting an intruder. This allows not only for recording the event but also for actively preventing incidents. The built-in microphone and speaker enable two-way voice communication, which is extremely useful at entry points or in parking lots. Intelligent image analysis (IVS) with object classification (human/vehicle) minimizes the number of false alarms, focusing the operator's attention on real threats.

The camera supports the modern Ultra 265 compression standard, which allows for saving up to 90% of space on a hard drive or microSD memory card (support up to 512 GB) while maintaining high-quality recordings. A solid metal-plastic housing with an IP67 ingress protection rating ensures full resistance to weather conditions such as rain, snow, or dust, making it an ideal choice for outdoor monitoring of properties, offices, or warehouses. The 130dB WDR wide dynamic range effectively handles overexposed and shadowed areas in the frame, providing a balanced image in all conditions.

Specification

Standard and Sensor

Standard: IP; Sensor: 1/2.9 " CMOS

Resolution and Image

4 MP - 2688 x 1520, 2560 x 1440; 3 MP - 2304 x 1296; 1080p - 1920 x 1080; 720p - 1280 x 720; Frame rate: 25 fps @ 4 MP

Optics and Field of View

Fixed lens: 2.8 mm; Field of view: 101.1 °

Night Illumination

IR illuminator range: 40 m; White light illuminator range (LED): 40 m; ColorHunter technology

Audio and Communication

Built-in microphone; Built-in speaker; Two-way audio support; Audio detection

Compression and Recording

Compression methods: Ultra 265 / H.265 / H.264 / MJPEG; Memory card slot: Micro SD card support up to 512GB; NAS (Network Attached Storage) support; ANR function

Intelligent Video Analytics (IVS)

Line crossing, intrusion, area entry, area exit, people counting, crowd density estimation; Object classification: human / vehicle

Image and Correction Functions

WDR - 130 dB (Wide Dynamic Range); 2D-DNR, 3D-DNR (Digital Noise Reduction); F-DNR (Defog); ROI (Region of Interest) - 8 zones; BLC/HLC (Light compensation); Corridor mode; Image rotation and mirror; Privacy zones - max. 4

Active Deterrence

Active deterrence function: Intelligent alarm linked to white LED light activation and speaker message

Network and Protocols

Interface: 10/100 Base-TX (RJ-45); ONVIF (Profile S, G, T); Built-in WEB Server; Max. 32 on-line users; RTSP URL supported

Software and Remote Access

UNV-Link and EZStation software are advanced tools for managing surveillance systems. The UNV-Link mobile application (available for Android and iOS) enables instant live viewing via P2P cloud, playback of recordings, and receiving push notifications about alarm events. The EZStation program for PCs allows for comprehensive configuration of multiple devices, creation of site maps, advanced search of recordings, and user permission management. Both solutions feature an intuitive interface, which significantly facilitates daily operation of the security system. Additionally, the software supports intelligent image analysis functions, allowing for quick filtering of events based on human and vehicle classification.

Power Supply and Consumption

Power supply: PoE (802.3af), 12 V DC / 830 mA; Power consumption: ≤ 10 W

Construction and Environment

Housing: Bullet, Metal + Plastic; Color: White; Ingress protection: IP67; Operating temperature: -30 °C ... 60 °C; Surge protection: 4 kV

Configuration Parameters

Default IP address: DHCP or 192.168.1.13; Default login/password: admin / 123456; Ports: 80, 554; NDAA Certificate: Yes

Contents

1x IP Camera

1x Mounting kit

1x RJ45 connector cover

1x User manual

Dimensions, Weight

Product dimensions: 192 x 75 x 74 mm (D x W x H)

Package dimensions: 215 x 105 x 110 mm (D x W x H)

Product weight: 410 g

Weight with packaging: 550 g
