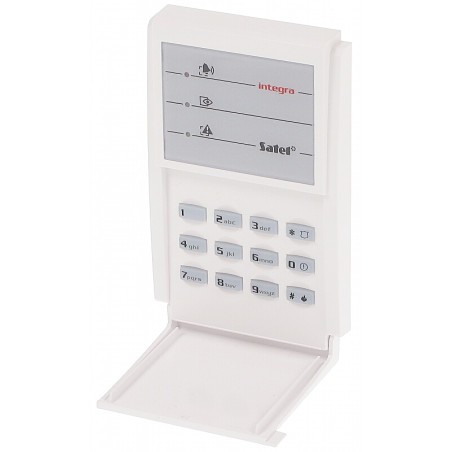

Zone keypad LED manipulator for alarm systems access control relay bolt output home alarms SATEL INT-S-GR
zł240.49
Tax included
The zone keypad is a key component of advanced alarm systems, allowing for autonomous management of a selected area of a facility without the need to engage the system's main manipulator. This model has been designed for maximum reliability and ease of use, making it an ideal solution for both home users and professional installations in commercial facilities.
The device features an elegant design and compact dimensions, allowing it to blend discreetly into the interior decor. The use of microprocessor technology guarantees stable operation and immediate response to entered codes. The green backlighting of the keys not only gives the device a modern look but, above all, ensures full readability and comfort of use in conditions of complete lack of external lighting.
One of the most important advantages of this model is the built-in relay, which allows for direct control of actuators such as electric strikes in doors, electromagnetic bolts, or entrance gates. Thanks to this, the keypad serves a dual role: as an alarm system manipulator and a simple access controller. Additionally, the user has the ability to quickly call for help via dedicated keyboard shortcuts for fire, medical, and panic alarms, which significantly increases the safety level of people in the facility.
A solid construction equipped with a tamper contact protects the device against unauthorized opening of the housing or detachment from the wall. The product is fully compatible with the popular INTEGRA series control panels, which allows for easy expansion of existing systems with new zone control points. By choosing this solution, you are investing in proven Polish technology that has enjoyed the trust of installers around the world for years.
Zone keypad LED manipulator for alarm systems access control relay bolt output home alarms
Model: SATEL INT-S-GR
EAN: 6931240067291 SKU: 931067293
- Compatibility with INTEGRA and CA-64 control panels
- Control of one zone in the system
- Built-in relay for controlling electric strikes or bolts
- Input for door status monitoring
- Quick access buttons for Panic, Fire, and Medical alarms
- Aesthetic green key backlighting
- Audible signaling of selected events
- Full tamper protection
- Polish production and high-quality workmanship
Description
The zone keypad is a key component of advanced alarm systems, allowing for autonomous management of a selected area of a facility without the need to engage the system's main manipulator. This model has been designed for maximum reliability and ease of use, making it an ideal solution for both home users and professional installations in commercial facilities.
The device features an elegant design and compact dimensions, allowing it to blend discreetly into the interior decor. The use of microprocessor technology guarantees stable operation and immediate response to entered codes. The green backlighting of the keys not only gives the device a modern look but, above all, ensures full readability and comfort of use in conditions of complete lack of external lighting.
One of the most important advantages of this model is the built-in relay, which allows for direct control of actuators such as electric strikes in doors, electromagnetic bolts, or entrance gates. Thanks to this, the keypad serves a dual role: as an alarm system manipulator and a simple access controller. Additionally, the user has the ability to quickly call for help via dedicated keyboard shortcuts for fire, medical, and panic alarms, which significantly increases the safety level of people in the facility.
A solid construction equipped with a tamper contact protects the device against unauthorized opening of the housing or detachment from the wall. The product is fully compatible with the popular INTEGRA series control panels, which allows for easy expansion of existing systems with new zone control points. By choosing this solution, you are investing in proven Polish technology that has enjoyed the trust of installers around the world for years.
Specification
Device type
LED zone manipulator
Compatibility
INTEGRA and CA-64 series alarm control panels
User interface
Numeric keypad with 12 buttons
Backlighting
Aesthetic green key backlighting for easy night operation
Alarm functions
Ability to trigger PANIC, FIRE, MEDICAL alarms directly from the keypad by holding down the appropriate key combination.
Zone control
Device dedicated to controlling one selected zone in the alarm system.
Access control
Built-in access control functions with user code authorization.
Control outputs
Relay (NO/NC) for controlling an electric strike, bolt, or lock (max load 2A / 24V DC).
Supervised inputs
Dedicated input for door status monitoring.
Tamper protection
Tamper microswitch detecting housing opening or detachment from the surface.
Acoustic signaling
Built-in piezoelectric transducer for confirming operations and signaling system events.
Electrical parameters
Supply voltage 12V DC, maximum current consumption up to 66mA.
Environmental conditions
Wide operating temperature range from -10°C to +55°C, intended for indoor applications.
Software and integration
Full cooperation with the DLOADX configuration software. This software allows for advanced programming of the manipulator's functions, assigning it to specific zones, and defining user permissions. Thanks to integration with the INTEGRA system, the manipulator can participate in complex building automation scenarios. The GUARDX program enables visualization of the device status on facility plans, which allows for a quick response by security personnel. The system ensures encrypted communication with the control panel, which prevents unauthorized persons from taking control. The interface is clear and allows for quick diagnostics of the connection with the control panel's communication bus.
Contents
1x Zone keypad
1x User manual
1x Set of mounting screws
Dimensions, Weight
Product dimensions: 27 x 127 x 80 mm (D x W x H)
Packaging dimensions: 25 x 135 x 85 mm (D x W x H)
Product weight: 110 g
Weight with packaging: 140 g
