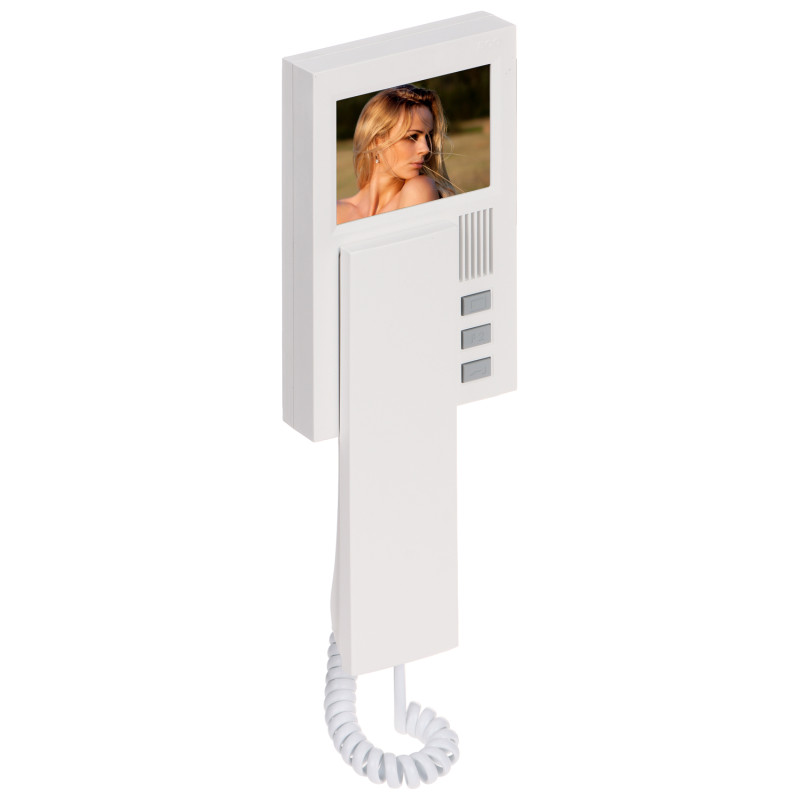

Digital Video Intercom Handset LCD 4 inch Magnetic ACO System CDNP Inspiro Familio ACO INS-MPR/4
zł678.49
Tax included
The ACO INS-MPR/4 digital video intercom is an advanced internal device that combines elegance, functionality, and modern digital technology. It is an ideal solution for those seeking a reliable communication system in multi-family buildings and single-family homes. The main advantage of this model is the built-in 4-inch colour LCD screen, which provides a clear and high-contrast view of the caller, significantly increasing the safety level of the residents.
One of the most innovative features of the handset is the magnetic docking mechanism. Thanks to the use of magnets, the handset always returns to its place, which eliminates the problem of improper hanging up and accidental line blocking. The device features a minimalist design and is made of high-quality white ABS plastic, making it blend perfectly with any interior decor. Additionally, the handset offers 3-level ring volume adjustment, allowing the device to be tailored to individual user needs, and a doorbell function, which eliminates the need for an additional chime installation.
The product is fully compatible with popular ACO systems such as CDNP, Inspiro, and Familio P/PV, making it a universal element for expanding existing installations. The ability to connect a second, independent camera is another advantage that allows for even broader monitoring of the entrance area. By choosing this model, you are investing in durability, ease of use, and aesthetics that will last for years.
Digital Video Intercom Handset LCD 4 inch Magnetic ACO System CDNP Inspiro Familio
Model: ACO INS-MPR/4
EAN: 6931240053546 SKU: 931053541
- 4-inch colour LCD display
- Magnetic handset docking mechanism (Magnetic Rest)
- Full compatibility with ACO CDNP, Inspiro, Familio P/PV systems
- 3-level ring volume adjustment with mute option
- Possibility to connect a second independent analogue camera
- Built-in connector for an additional doorbell button (chime function)
- Digital installation based on UTP cat. 5e or 6 twisted pair cable
- Made of high-quality white ABS plastic
Description
The ACO INS-MPR/4 digital video intercom is an advanced internal device that combines elegance, functionality, and modern digital technology. It is an ideal solution for those seeking a reliable communication system in multi-family buildings and single-family homes. The main advantage of this model is the built-in 4-inch colour LCD screen, which provides a clear and high-contrast view of the caller, significantly increasing the safety level of the residents.
One of the most innovative features of the handset is the magnetic docking mechanism. Thanks to the use of magnets, the handset always returns to its place, which eliminates the problem of improper hanging up and accidental line blocking. The device features a minimalist design and is made of high-quality white ABS plastic, making it blend perfectly with any interior decor. Additionally, the handset offers 3-level ring volume adjustment, allowing the device to be tailored to individual user needs, and a doorbell function, which eliminates the need for an additional chime installation.
The product is fully compatible with popular ACO systems such as CDNP, Inspiro, and Familio P/PV, making it a universal element for expanding existing installations. The ability to connect a second, independent camera is another advantage that allows for even broader monitoring of the entrance area. By choosing this model, you are investing in durability, ease of use, and aesthetics that will last for years.
Specification
Device type
Digital video intercom handset designed for multi-subscriber and single-family systems.
System compatibility
Full and native cooperation with advanced ACO control panels from the CDNP, Inspiro, and Familio P/PV series.
Display
High-quality 4-inch colour LCD screen, offering a bright and clear image for easy visitor identification.
Installation
Modern digital installation requiring the use of UTP category 5e or 6 computer twisted pair cable.
Mounting method
Surface-mounted design with a dedicated mounting base, allowing for aesthetic cable concealment.
Connectors and inputs
Equipped with a standard RJ-45 socket and traditional screw terminals for a stable connection.
Audio functions
Advanced sound processing system with 3-level call volume adjustment.
Video functions
Automatic preview activation upon call and the possibility to connect a second independent camera.
Handset mechanism
Innovative magnetic system ensuring perfect adherence of the handset to the device base.
Additional inputs
Integrated connector for an external doorbell button (doorbell function).
Power parameters
15V DC voltage required, power consumption in operating mode is 200mA (power supply not included).
Material
Housing made of high-impact ABS plastic resistant to UV radiation (does not yellow).
Operating conditions
Designed for indoor use in temperatures ranging from 10 °C to 40 °C.
Aesthetics
Classic white colour and modern design line matching any type of interior.
Software and configuration
The device operating system manages digital addressing in the ACO bus. Programming is intuitive, allowing for the assignment of a flat number directly in the device using jumpers or software configuration. The software supports control functions for external devices, such as gate drives or stair lighting. Image processing algorithms ensure that the displayed video is smooth and colours are naturally reproduced even in low external light conditions. The system also features a self-diagnostic function for the connection with the external panel and video signal transmission optimisation to eliminate interference.
Contents
1x INS-MPR/4 Video Intercom
1x Set of mounting plugs
1x User manual
Dimensions, Weight
Product dimensions: 40 x 104 x 284 mm (D x W x H)
Packaging dimensions: 35 x 225 x 295 mm (D x W x H)
Product weight: 350 g
Weight with packaging: 459 g
