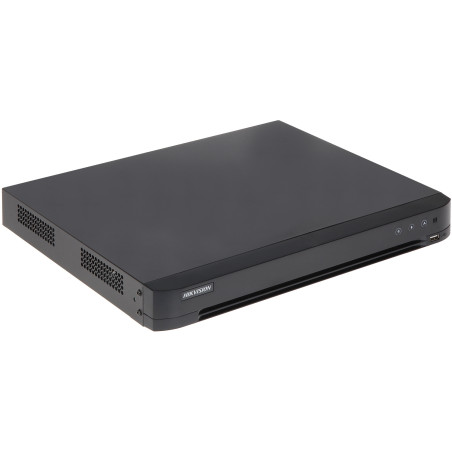

32-channel 5-in-1 Hybrid Recorder 4M-N 1080p H.265+ AcuSense Deep Learning Motion Detection 2.0 Hikvision IDS-7232HQHI-M2/S(E)
zł3,226.29
Tax included
The professional digital recorder IDS-7232HQHI-M2/S(E) is an advanced hybrid device that redefines the standards of modern monitoring. Thanks to support for five transmission standards: AHD, HD-CVI, HD-TVI, CVBS, and IP, the device provides unprecedented flexibility in designing and expanding security systems. The main advantage of the product is the implementation of AcuSense and Deep Learning technologies, which allow for intelligent filtering of false alarms by precisely recognizing human silhouettes and vehicles.
The device supports up to 32 analog channels in high resolution and additional IP channels, making it an ideal solution for large commercial facilities, warehouses, or office buildings. The use of modern H.265+ compression allows for significant hard drive space savings (support for up to 2x 10TB) while maintaining the highest image quality. An intuitive menu and extensive remote access capabilities via the Hik-Connect mobile app make system management simple and effective from anywhere in the world. A solid housing and a 3-year manufacturer's warranty confirm the highest quality of this recorder.
32-channel 5-in-1 Hybrid Recorder 4M-N 1080p H.265+ AcuSense Deep Learning Motion Detection 2.0
Model: Hikvision IDS-7232HQHI-M2/S(E)
EAN: 6931240036785 SKU: 931036782
- Support for 5 standards: AHD, HD-CVI, HD-TVI, CVBS, TCP/IP
- AcuSense technology - intelligent false alarm filtering
- Deep Learning analysis - human and vehicle recognition
- Efficient image compression H.265+ / H.265 / H.264+ / H.264
- Support for 32 BNC channels and additional IP cameras (up to 6 Mpx)
- Two SATA hard drive slots with a capacity of up to 10TB each
- Remote viewing via P2P cloud and Hik-Connect app
- Video outputs HDMI (4K), VGA and CVBS (BNC)
- Motion Detection 2.0 on all analog channels
- Intelligent IVS image analysis: intrusion, line crossing
Description
The professional digital recorder IDS-7232HQHI-M2/S(E) is an advanced hybrid device that redefines the standards of modern monitoring. Thanks to support for five transmission standards: AHD, HD-CVI, HD-TVI, CVBS, and IP, the device provides unprecedented flexibility in designing and expanding security systems. The main advantage of the product is the implementation of AcuSense and Deep Learning technologies, which allow for intelligent filtering of false alarms by precisely recognizing human silhouettes and vehicles.
The device supports up to 32 analog channels in high resolution and additional IP channels, making it an ideal solution for large commercial facilities, warehouses, or office buildings. The use of modern H.265+ compression allows for significant hard drive space savings (support for up to 2x 10TB) while maintaining the highest image quality. An intuitive menu and extensive remote access capabilities via the Hik-Connect mobile app make system management simple and effective from anywhere in the world. A solid housing and a 3-year manufacturer's warranty confirm the highest quality of this recorder.
Specification
Video standards
AHD, HD-CVI, HD-TVI, CVBS, TCP/IP (Hybrid)
Video inputs
32 pcs BNC - 75 Ω impedance
Video outputs
1 pc HDMI (4K), 1 pc VGA, 1 pc CVBS (BNC socket)
Audio support
Input: 1 pc CINCH (RCA); Output: 1 pc CINCH (RCA); Audio support via coaxial cable (selected camera models)
Image compression
H.265 / H.265+ / H.264 / H.264+ (high encoding efficiency)
Recording resolutions
TVI/AHD/CVI: 4M-N (1280x1440), 1080p (1920x1080), 1080N (960x1080), 720p (1280x720); CVBS: 960H, D1; IP: up to 6 Mpx (3072x2048)
Recording speed
Main stream: 4M-N/1080p @ 15 fps, 1080N/720p/960H/D1 @ 25 fps; IP: up to 25 fps
Operating modes
32x Analog (TVI/AHD/CVI/CVBS) + 8x IP (total up to 40 channels in extended IP mode)
Mass storage
2x SATA port, support for hard drives up to 10TB each (total 20TB)
Network interface
1x RJ-45 10/100/1000 Base-T (Gigabit Ethernet)
Software and Cloud
The free Hik-Connect mobile app (Android/iOS) enables instant live viewing, recording playback, and receiving push notifications about alarm events. iVMS-4200 PC software allows for comprehensive management of multiple recorders, configuration of advanced IVS functions, and data archiving. The system supports P2P technology, which eliminates the need for a static IP address and complex router configuration. The web interface accessible via a browser (e.g., IE) offers full control over image parameters, recording schedules, and network settings.
Intelligent image analysis
AcuSense technology: false alarm filtering (leaves, rain, animals) through human/vehicle object classification. IVS functions: line crossing, intrusion detection. Motion Detection 2.0 available on all channels.
Additional interfaces
RS-485 (PTZ control Pelco-D/P), 2x USB (1x 2.0 on front, 1x 3.0 on back)
Physical parameters
Dimensions: 380 x 330 x 52 mm; Weight: 2.12 kg (without HDD); Color: Black
Power supply
12V DC / 5A; Power consumption: ≤ 40 W (without drives)
Contents
1x Recorder IDS-7232HQHI-M2/S(E)
1x 12V 5A power adapter
1x USB computer mouse
1x Set of screws for drive mounting
1x SATA signal cables
Dimensions, Weight
Product dimensions: 330 x 380 x 52 mm (D x W x H)
Package dimensions: 390 x 440 x 120 mm (D x W x H)
Product weight: 2120 g
Weight with packaging: 3100 g
