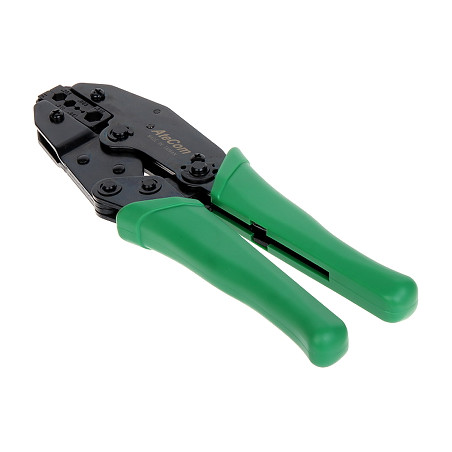

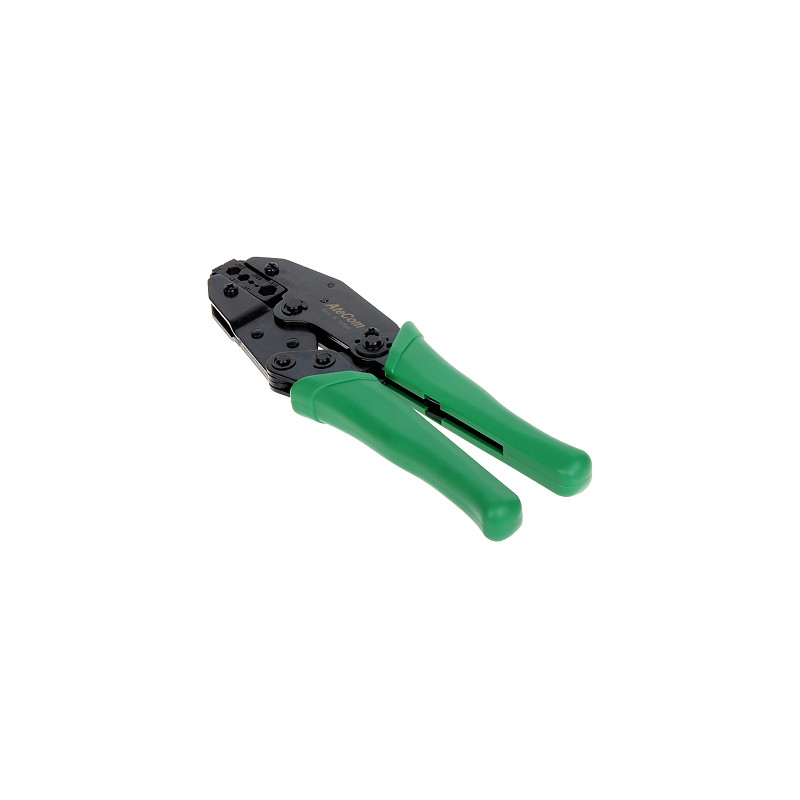

Professional Coaxial Connector Crimping Tool for RG58 RG59 RG6 H155 RF240 Antenna Installation Tool HT-336I
zł189.27
Tax included
The professional HT-336I crimping tool is an indispensable device for every installer of terrestrial television, satellite, and modern CCTV monitoring systems. The device has been designed for precise and durable crimping of connectors on a wide range of coaxial cables, such as the popular RG58, RG59, RG6, as well as specialized low-loss cables H-155, RF-5, and RF-240. Thanks to the use of the highest quality materials, including hardened steel and ergonomic PET plastic elements, the tool is characterized by exceptional longevity and resistance to intensive use in difficult installation conditions.
The main advantage of the HT-336I model is its immense versatility. Equipped with five precisely calibrated slots ranging from 1.70 mm to 8.00 mm, it allows for work with various types of connectors and cables, which eliminates the need to carry many separate tools in an installer's bag. The ergonomic handle design ensures a secure grip and minimizes hand fatigue during serial crimping of terminals, which is extremely important for large installations. The crimping mechanism guarantees full repeatability and the highest quality of connection, which is crucial for maintaining optimal signal parameters in high-frequency installations.
By choosing this crimping tool, you are investing in professionalism and reliability. It is a product dedicated to both professional installation companies and advanced amateurs who value build quality and precision of operation. The solid metal construction combined with a precise die ensures that every crimped connector holds firmly and stably, ensuring trouble-free operation of the entire installation for many years. This tool significantly speeds up the process of installing BNC, F, or TNC type terminals, guaranteeing the aesthetics and durability of the completed connection.
Professional Coaxial Connector Crimping Tool for RG58 RG59 RG6 H155 RF240 Antenna Installation Tool
Model: HT-336I
EAN: 6931240048719 SKU: 931048717
- Universal application for many types of coaxial cables
- Solid construction made of high-quality metal
- Ergonomic handles made of durable PET plastic
- Five precision crimping slots with different diameters
- High mechanical durability and wear resistance
- Ensures repeatability and precision of every crimp
- Ideal for BNC, F, TNC and other crimp connectors
Description
The professional HT-336I crimping tool is an indispensable device for every installer of terrestrial television, satellite, and modern CCTV monitoring systems. The device has been designed for precise and durable crimping of connectors on a wide range of coaxial cables, such as the popular RG58, RG59, RG6, as well as specialized low-loss cables H-155, RF-5, and RF-240. Thanks to the use of the highest quality materials, including hardened steel and ergonomic PET plastic elements, the tool is characterized by exceptional longevity and resistance to intensive use in difficult installation conditions.
The main advantage of the HT-336I model is its immense versatility. Equipped with five precisely calibrated slots ranging from 1.70 mm to 8.00 mm, it allows for work with various types of connectors and cables, which eliminates the need to carry many separate tools in an installer's bag. The ergonomic handle design ensures a secure grip and minimizes hand fatigue during serial crimping of terminals, which is extremely important for large installations. The crimping mechanism guarantees full repeatability and the highest quality of connection, which is crucial for maintaining optimal signal parameters in high-frequency installations.
By choosing this crimping tool, you are investing in professionalism and reliability. It is a product dedicated to both professional installation companies and advanced amateurs who value build quality and precision of operation. The solid metal construction combined with a precise die ensures that every crimped connector holds firmly and stably, ensuring trouble-free operation of the entire installation for many years. This tool significantly speeds up the process of installing BNC, F, or TNC type terminals, guaranteeing the aesthetics and durability of the completed connection.
Specification
Tool type
Manual crimping tool for coaxial connectors (Crimp Tool)
Model
HT-336I
Body material
High-grade hardened steel ensuring structural rigidity and die longevity
Handle material
PET (polyethylene terephthalate) plastic with high mechanical strength, excellent machinability, and anti-slip properties
Supported cable types
RG58, RG59, RG-174, RG6, H-155, RF-5, RF-240 and others with similar diameter parameters
Application
TV/SAT antenna installations, CCTV video monitoring systems, radio networks, WLAN systems, telecommunications
Slot dimension 1
0.255" - 6.46 mm (dedicated mainly to connectors for RG6 type cables)
Slot dimension 2
0.211" - 5.36 mm (dedicated to connectors for RG58 and RG59 type cables)
Slot dimension 3
0.093" - 2.36 mm (precision crimping of center pins of coaxial connectors)
Slot dimension 4
0.067" - 1.70 mm (crimping of the smallest contact elements and pins)
Slot dimension 5
0.315" - 8.00 mm (for connectors on cables with a larger outer diameter, e.g., RF-240)
Mechanism
Integrated gear increasing the clamping force, which allows for work using minimal physical force
Ergonomics and construction
Contoured handles ensuring comfort of work; construction resistant to deformation under high pressure forces
Warranty
2 years (24 months) based on proof of purchase
Software
N/A - The device is fully mechanical. It does not require the installation of drivers, mobile applications, or network configuration. The crimping process is performed manually through the operator's physical pressure on the tool handles, which translates into direct control over the quality of the electrical contact made.
Contents
1x HT-336I Crimping Tool
1x Original blister packaging
Dimensions, Weight
Product dimensions: 23 x 68 x 226 mm (D x W x H)
Packaging dimensions: 25 x 120 x 290 mm (D x W x H)
Product weight: 502 g
Weight with packaging: 546 g
