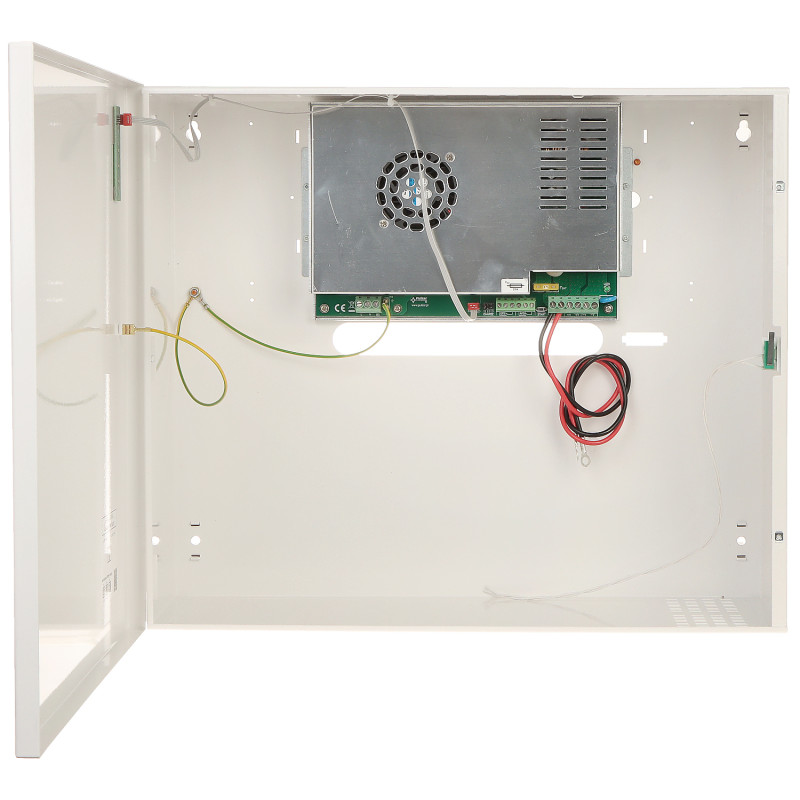

12V 20A switched-mode buffer power supply for alarm and access control systems Grade 2 IP20 276W PULSAR HPSG2-12V20A-E
zł819.18
Tax included
The HPSG2-12V20A-E switched-mode buffer power supply is a professional power device designed for the highest level of security in alarm systems (SSWiN) and access control (KD). The device is characterized by exceptional current efficiency reaching 20A, which allows for powering extensive installations consisting of many sensors, cameras, digital locks, and keypads. The power supply design is fully compliant with the rigorous EN50131-6:2017 and EN60839-11:2013 standards at Grade 2, which guarantees reliability in professional applications.
One of the key advantages of the product is an advanced energy management system that ensures uninterrupted power supply to devices even in the event of a mains voltage failure. The power supply automatically switches to battery operation, and after the AC power is restored, it intelligently recharges the battery. The user has the option to select the charging current (2A, 4A, or 8A), which allows for optimal matching to the capacity of the battery used (from 7Ah up to 65Ah). A solid, metal enclosure with forced fan cooling ensures stable operation even under heavy load, and numerous protections protect both the power supply and the devices connected to it against failures.
The product offers a wide range of diagnostic functions, including OC-type technical outputs informing about the lack of AC power (EPS) or battery failure (APS). Thanks to the START function, it is possible to start the system directly from the battery without the presence of the power grid. High energy efficiency at the 89% level minimizes heat loss, which translates into a longer service life of electronic components. This is an ideal solution for installers looking for uncompromising quality and full control over the emergency power system.
12V 20A switched-mode buffer power supply for alarm and access control systems Grade 2 IP20 276W
Model: PULSAR HPSG2-12V20A-E
EAN: 6931240087800 SKU: 931087803
- Compliance with EN50131-6 Grade 2 and EN60839-11 Grade 2 standards
- High current efficiency up to 20A at 13.8V DC
- Support for a wide range of batteries from 7Ah to 65Ah
- Adjustable battery charging current: 2A / 4A / 8A
- Advanced EPS and APS technical outputs for power status monitoring
- Built-in fan providing optimal forced cooling
- Cold start function (START) allowing operation without AC mains
- Complete protection package: SCP, OLP, OVP, UVP and tamper protection
- High energy efficiency up to 89%
- Robust metal enclosure with space for a large battery
Description
The HPSG2-12V20A-E switched-mode buffer power supply is a professional power device designed for the highest level of security in alarm systems (SSWiN) and access control (KD). The device is characterized by exceptional current efficiency reaching 20A, which allows for powering extensive installations consisting of many sensors, cameras, digital locks, and keypads. The power supply design is fully compliant with the rigorous EN50131-6:2017 and EN60839-11:2013 standards at Grade 2, which guarantees reliability in professional applications.
One of the key advantages of the product is an advanced energy management system that ensures uninterrupted power supply to devices even in the event of a mains voltage failure. The power supply automatically switches to battery operation, and after the AC power is restored, it intelligently recharges the battery. The user has the option to select the charging current (2A, 4A, or 8A), which allows for optimal matching to the capacity of the battery used (from 7Ah up to 65Ah). A solid, metal enclosure with forced fan cooling ensures stable operation even under heavy load, and numerous protections protect both the power supply and the devices connected to it against failures.
The product offers a wide range of diagnostic functions, including OC-type technical outputs informing about the lack of AC power (EPS) or battery failure (APS). Thanks to the START function, it is possible to start the system directly from the battery without the presence of the power grid. High energy efficiency at the 89% level minimizes heat loss, which translates into a longer service life of electronic components. This is an ideal solution for installers looking for uncompromising quality and full control over the emergency power system.
Specification
Power supply type
Switched-mode, buffer, professional
Input parameters
Voltage: 200 V ... 240 V AC, Frequency: 50/60 Hz
Output parameters
Buffer operation: 11.0 V ... 13.8 V DC; Battery operation: 10.0 V ... 13.8 V DC
Efficiency and power
Total current efficiency: 20 A; Total power: 276 W; Number of outputs: 3
Battery charging
Charging current selectable via jumpers: 2 A / 4 A / 8 A; Short-circuit and reverse connection protection
Battery compatibility
Supported capacities: 7Ah, 17Ah, 28Ah, 44Ah, 65Ah (12V); Maximum battery dimensions: 450 x 190 x 168 mm
System protections
Short-circuit (SCP), Overload (OLP), Overvoltage (OVP), Surge protection, Tamper (enclosure opening), UVP (deep discharge protection)
Signaling and control
Optical LED signaling of AC, DC, and battery status; Dynamic battery test; Circuit continuity and cell voltage monitoring
Technical outputs
EPS FLT - AC power failure; APS FLT - battery failure or missing battery (OC type)
Efficiency and cooling
Energy efficiency: ≤ 89%; Cooling: Forced (built-in thermally controlled fan)
Compliance with standards
EN 50131-6:2017 (Grade 2), EN 60839-11:2013 (Grade 2), PN-83/T-42106, CE-LVD: EN62368-1
Mechanical construction
Enclosure: DC01 steel sheet, 1mm; Color: White; Ingress protection: IP20
Environmental conditions
Operating temperature: -10 °C ... 40 °C; Relative humidity: 20 % ... 90 % (non-condensing)
Software and logic
The integrated microprocessor system of the HPSG2-12V20A-E power supply is responsible for advanced management of the battery charging and maintenance process. The firmware performs a dynamic load test every 5 minutes, verifying the internal resistance of the cells and circuit continuity. Monitoring algorithms continuously analyze the AC input voltage and DC output parameters, immediately activating OC-type technical outputs (EPS, APS) if anomalies are detected. The system protects the battery against deep discharge (UVP) and optimizes the charging current depending on the selected mode (2A/4A/8A), which significantly extends the life of the connected batteries.
Contents
1x Buffer power supply in a metal enclosure
1x Set of configuration jumpers
1x User manual PL/EN
Dimensions, Weight
Product dimensions: 173 x 465 x 395 mm (D x W x H)
Packaging dimensions: 210 x 475 x 405 mm (D x W x H)
Product weight: 6850 g
Weight with packaging: 7482 g
