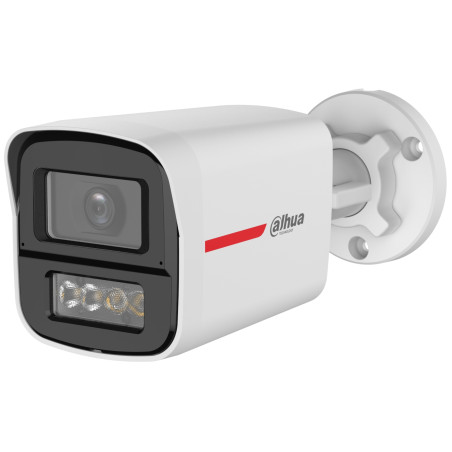

4-in-1 5MP WizColor Full-Color 2.8mm WDR 130dB IP67 Audio Microphone LED 50m AI-ISP DIP Switch Camera DAHUA HAC-HFW1549X-A-PRO-0
zł548.58
Tax included
The Dahua HAC-HFW1549X-A-PRO-0280B-DIP camera is a professional surveillance device that redefines the standards of high-resolution analog monitoring. Thanks to the use of innovative WizColor technology and an advanced AI-ISP processor, the camera offers unprecedented full-color image quality around the clock. It is an ideal solution for users seeking detail and reliability of evidence, even in extremely difficult lighting conditions. Full-color technology allows for the identification of clothing or vehicle colors at night, which is crucial for security systems.
The advantage of the device is its versatility – thanks to the DIP switch, the camera can operate in four standards: AHD, HD-CVI, HD-TVI, and traditional PAL. This allows for easy integration with almost any existing recording system. Additionally, the built-in microphone enables audio recording, which in the HD-CVI standard is transmitted directly over the coaxial cable, eliminating the need for additional audio cabling. This solution significantly reduces installation costs while increasing surveillance functionality.
The durable housing made of a combination of metal and plastic with an IP67 ingress protection rating guarantees trouble-free outdoor operation, protecting the electronics from rain, dust, and variable temperatures from -40°C to 60°C. The 130 dB WDR function ensures excellent visibility in high-contrast scenes, e.g., at building entrances where sunlight mixes with shadow. It is an intelligent tool that combines durability, modern image analytics, and ease of installation, forming the foundation of a modern CCTV system. By choosing this model, you are investing in security based on the latest achievements in artificial intelligence for image processing.
4-in-1 5MP WizColor Full-Color 2.8mm WDR 130dB IP67 Audio Microphone LED 50m AI-ISP DIP Switch Camera
Model: DAHUA HAC-HFW1549X-A-PRO-0280B-DIP
EAN: 6931240038215 SKU: 931038217
- 5 MP resolution (2960 x 1665) for crystal clear images
- WizColor and AI-ISP technology for 24/7 full-color imaging
- Wide-angle 2.8 mm lens with a 110-degree field of view
- White light illuminator (LED) with a range of up to 50 meters
- WDR 130 dB - excellent image dynamics in difficult lighting conditions
- Built-in microphone with audio support over coaxial cable (HD-CVI)
- 4-in-1 standard: AHD, HD-CVI, HD-TVI, PAL switchable via DIP
- IP67 ingress protection rating - full weather resistance
- Advanced features: 3D NR, AGC, BLC, HLC, Mirror, Privacy zones
- Wide operating temperature range from -40°C to 60°C
Description
The Dahua HAC-HFW1549X-A-PRO-0280B-DIP camera is a professional surveillance device that redefines the standards of high-resolution analog monitoring. Thanks to the use of innovative WizColor technology and an advanced AI-ISP processor, the camera offers unprecedented full-color image quality around the clock. It is an ideal solution for users seeking detail and reliability of evidence, even in extremely difficult lighting conditions. Full-color technology allows for the identification of clothing or vehicle colors at night, which is crucial for security systems.
The advantage of the device is its versatility – thanks to the DIP switch, the camera can operate in four standards: AHD, HD-CVI, HD-TVI, and traditional PAL. This allows for easy integration with almost any existing recording system. Additionally, the built-in microphone enables audio recording, which in the HD-CVI standard is transmitted directly over the coaxial cable, eliminating the need for additional audio cabling. This solution significantly reduces installation costs while increasing surveillance functionality.
The durable housing made of a combination of metal and plastic with an IP67 ingress protection rating guarantees trouble-free outdoor operation, protecting the electronics from rain, dust, and variable temperatures from -40°C to 60°C. The 130 dB WDR function ensures excellent visibility in high-contrast scenes, e.g., at building entrances where sunlight mixes with shadow. It is an intelligent tool that combines durability, modern image analytics, and ease of installation, forming the foundation of a modern CCTV system. By choosing this model, you are investing in security based on the latest achievements in artificial intelligence for image processing.
Specification
Standard
AHD, HD-CVI, HD-TVI, PAL
Resolution
5 MP - 2960 x 1665 @ 20 fps (TVI), 2880 x 1620 @ 25 fps (CVI), 2560 x 1440 @ 25 fps (AHD), 960H @ 25 fps (PAL)
Sensor
CMOS
Lens
2.8 mm
Field of view
110 °
LED illuminator range
50 m (white light)
Video output
AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω (DIP switchable)
Audio
Built-in microphone, audio support via coaxial cable (HD-CVI only)
Selected image features
WDR - 130 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), AGC (Automatic Gain Control), BLC/HLC (Backlight/Highlight Compensation), Mirror, Motion detection (4 zones), Privacy zones (8 zones), Lens distortion correction
WizColor and AI-ISP technology
WizColor combines AI-ISP with a large aperture to capture full-color, detailed shots at night with minimal motion blur, utilizing residual light sources. AI-ISP is a technology that allows the camera to adapt to the scene, creating high-quality images that reveal fine details of objects.
Software and Configuration
AI-ISP (Artificial Intelligence Image Signal Processing) is a breakthrough Dahua technology that uses deep learning algorithms to optimize image parameters in real-time. This system intelligently analyzes the scene, reducing digital noise and eliminating motion blur, which is particularly noticeable in low-light conditions. The WizColor software manages the signal to maximize the use of residual ambient light, ensuring natural colors without the need for excessive use of the LED illuminator. The control interface (OSD) available from the recorder level allows for precise configuration of functions such as privacy masks, motion detection, or mirror image, adapting the camera to the specific requirements of the location.
Power supply and Power consumption
12 V DC / 480 mA; Power consumption: ≤ 5.8 W
Housing and Ingress protection
Bullet, Plastic + Metal; Color: White + Black; Ingress protection: IP67; Anti-corrosion protection
Operating conditions
Temperature: -40 °C ... 60 °C; Humidity: < 95%
Warranty
3 years
Contents
1x Camera
1x Set of mounting plugs
1x Drilling template
1x User manual
Dimensions, Weight
Product dimensions: 187 x 75 x 82 mm (D x W x H)
Package dimensions: 220 x 115 x 105 mm (D x W x H)
Product weight: 350 g
Weight with packaging: 506 g
