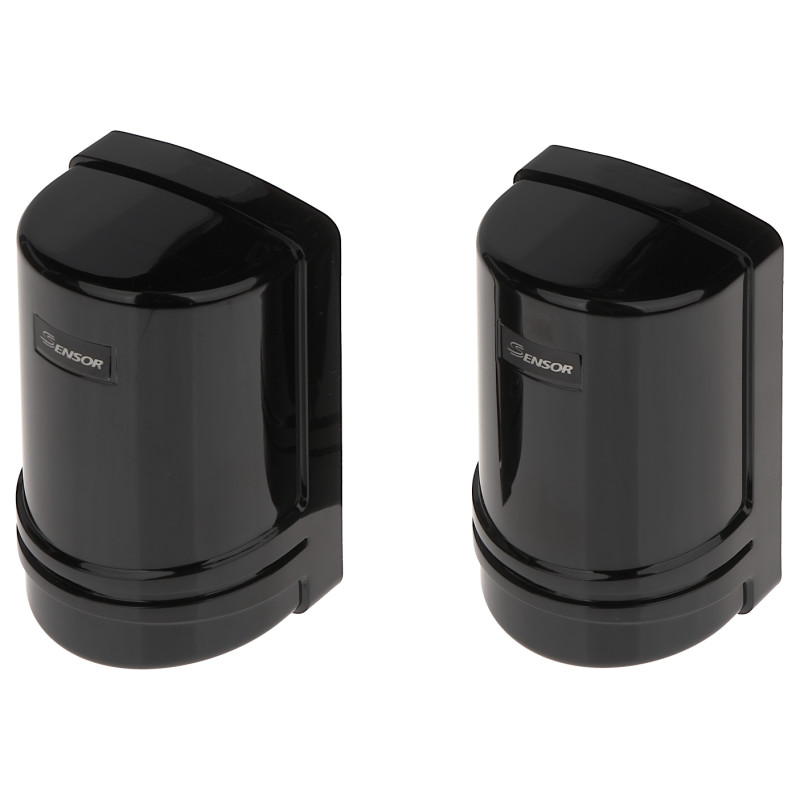

Infrared photocell for automatic gate 20m range TX RX set with angle adjustment VIDOS FT02
zł152.21
Tax included
The VIDOS FT02 photocell set is a professional solution designed to significantly increase the safety and functionality of modern gate automation systems. The set consists of a high-class transmitter (TX) and a precise receiver (RX), which together form an invisible yet extremely effective infrared barrier. The main task of the device is to monitor the entrance and detect any obstacles. If an object such as a car, person, or animal appears in the barrier's field of operation, the photocell reacts immediately, sending a signal to the control unit to stop or reverse the gate movement. Thanks to the use of a 940 nm wavelength beam, the system operates discreetly and is resistant to interference.
Product advantages:
- Exceptional reliability: The devices are designed for stable operation in a wide temperature range from -20°C to 50°C, making them an ideal choice for the climate.
- Impressive range: The ability to operate at a distance of up to 20 meters allows for effective protection of even very wide residential entrances and industrial gates.
- Installation flexibility: The unique beam angle adjustment function of up to 40 degrees significantly facilitates installation on uneven posts or in places where devices cannot be mounted perfectly in a straight line.
- Resistance to external conditions: A solid, highly sealed housing protects the sensitive electronics from moisture, rainfall, and intense UV radiation, which guarantees trouble-free operation for many years.
- Full versatility: The NO/NC relay output makes the FT02 photocells fully compatible with almost every gate drive control unit available on the market.
- Instant reaction: A response time of just 50 ms ensures the highest level of protection, eliminating the risk of collision.
By investing in the VIDOS FT02 model, you choose proven technology that protects your property and ensures the safety of household members. It is an essential element of every modern automation system, combining simplicity of installation with advanced optics.
Infrared photocell for automatic gate 20m range TX RX set with angle adjustment
Model: VIDOS FT02
EAN: 6931240042052 SKU: 931042057
- Complete set: transmitter (TX) and receiver (RX)
- Operating range up to 20 meters
- Beam angle adjustment in the range of 0° ... 40°
- Very fast response time: 50 ms
- NO/NC relay output compatible with most drives
- Resistance to harsh weather conditions and sunlight
- Wide supply voltage range: 10.5V - 24V DC
- Discrete 940 nm infrared beam
Description
The VIDOS FT02 photocell set is a professional solution designed to significantly increase the safety and functionality of modern gate automation systems. The set consists of a high-class transmitter (TX) and a precise receiver (RX), which together form an invisible yet extremely effective infrared barrier. The main task of the device is to monitor the entrance and detect any obstacles. If an object such as a car, person, or animal appears in the barrier's field of operation, the photocell reacts immediately, sending a signal to the control unit to stop or reverse the gate movement. Thanks to the use of a 940 nm wavelength beam, the system operates discreetly and is resistant to interference.
Product advantages:
- Exceptional reliability: The devices are designed for stable operation in a wide temperature range from -20°C to 50°C, making them an ideal choice for the climate.
- Impressive range: The ability to operate at a distance of up to 20 meters allows for effective protection of even very wide residential entrances and industrial gates.
- Installation flexibility: The unique beam angle adjustment function of up to 40 degrees significantly facilitates installation on uneven posts or in places where devices cannot be mounted perfectly in a straight line.
- Resistance to external conditions: A solid, highly sealed housing protects the sensitive electronics from moisture, rainfall, and intense UV radiation, which guarantees trouble-free operation for many years.
- Full versatility: The NO/NC relay output makes the FT02 photocells fully compatible with almost every gate drive control unit available on the market.
- Instant reaction: A response time of just 50 ms ensures the highest level of protection, eliminating the risk of collision.
By investing in the VIDOS FT02 model, you choose proven technology that protects your property and ensures the safety of household members. It is an essential element of every modern automation system, combining simplicity of installation with advanced optics.
Specification
Device type
Infrared barrier (photocell) for gate automation
Operating range
Adjustable from 1 meter up to a maximum of 20 meters
Beam angle and adjustment
Horizontal beam angle adjustment from 0° to 40° for easy alignment
Response time
Very short response time of 50 ms (milliseconds)
Power supply
10.5 V ... 24 V DC constant voltage / Current capacity min. 0.5 A
Current consumption
Transmitter (TX): 17.3 mA, Receiver (RX): 27.3 mA
Relay output
1x NO/NC output (normally open / normally closed)
Contact load capacity
Maximum 0.5 A / 30 V AC/DC
Detection technology
Passive infrared (PIR) with 940 nm wavelength
Operating temperature
Wide range from -20 °C to 50 °C
Housing dimensions
94 x 60 x 46 mm (identical for transmitter and receiver)
Component weight
Transmitter: 0.072 kg, Receiver: 0.075 kg
Design features
Moisture and sunlight resistant housing, dedicated for outdoor installation
Manufacturer / Brand
VIDOS
Warranty
3 years (36 months) from the date of purchase
Contents
1x Infrared transmitter TX
1x Infrared receiver RX
Set of mounting accessories
User manual in Polish
Dimensions, Weight
Product dimensions: 46 x 60 x 94 mm (D x W x H)
Package dimensions: 155 x 100 x 55 mm (D x W x H)
Product weight: 147 g
Weight with packaging: 210 g
