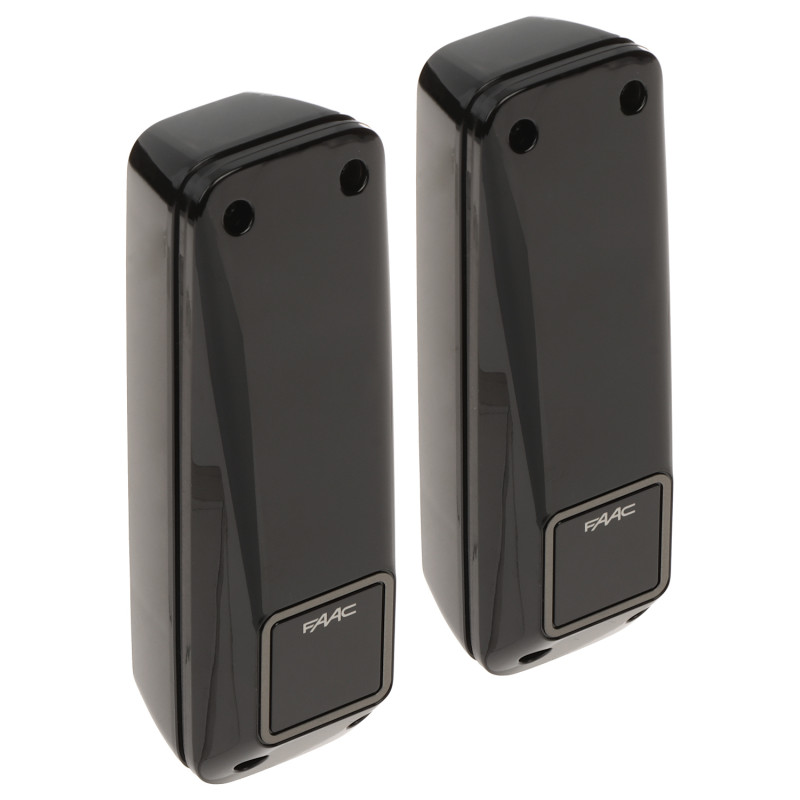

Infrared Photocells for Gate 20m Range Angle Adjustment IP54 Set Transmitter Receiver Safety FAAC FAAC-XP20D
zł403.44
Tax included
The FAAC-XP20D photocell set is a professional solution for gate automation safety systems, providing the highest level of protection for users and property. This model is characterized by exceptional reliability and precision, making it an ideal choice for both sliding and swing gates. The main task of the device is to create an invisible infrared barrier – when interrupted by an obstacle such as a car, pedestrian, or animal, the system immediately sends a signal to the control unit, resulting in the gate stopping or reversing. This minimizes the risk of collisions and damage.
One of the greatest advantages of this model is the advanced horizontal viewing angle adjustment of up to 180 degrees (plus/minus 90 degrees). This allows for mounting the photocells on posts that are not perfectly aligned, which significantly facilitates the installation process in difficult architectural conditions. The devices are designed to operate in variable weather conditions. The robust housing made of high-quality plastic provides IP54 protection, meaning resistance to dust and water splashes from any direction. Additionally, the electronics are protected against the adverse effects of sunlight, which prevents false alarms and extends the lifespan of the components.
Compact dimensions and an aesthetic black color ensure that the photocells blend discreetly with fence elements without disrupting their appearance. A fast response time of just 13 milliseconds guarantees an instantaneous system reaction to the presence of an obstacle. The device is compatible with a wide range of drives, especially from the FAAC series, which confirms its versatility and professional pedigree. By choosing this set, you are investing in peace of mind and the certainty that your gate operates in a predictable and safe manner for the surroundings.
Infrared Photocells for Gate 20m Range Angle Adjustment IP54 Set Transmitter Receiver Safety
Model: FAAC FAAC-XP20D
EAN: 6931240017203 SKU: 931017209
- Operating range up to 20 meters
- Horizontal angle adjustment ± 90° (total 180°)
- Fast response time of 13 ms
- Universal 24V AC/DC power supply
- IP54 protection class ensuring weather resistance
- NC type relay output
- Robust plastic housing
- Compatible with FAAC gate automation systems
- Surface mounting or on a dedicated column
- Resistance to sunlight interference
Description
The FAAC-XP20D photocell set is a professional solution for gate automation safety systems, providing the highest level of protection for users and property. This model is characterized by exceptional reliability and precision, making it an ideal choice for both sliding and swing gates. The main task of the device is to create an invisible infrared barrier – when interrupted by an obstacle such as a car, pedestrian, or animal, the system immediately sends a signal to the control unit, resulting in the gate stopping or reversing. This minimizes the risk of collisions and damage.
One of the greatest advantages of this model is the advanced horizontal viewing angle adjustment of up to 180 degrees (plus/minus 90 degrees). This allows for mounting the photocells on posts that are not perfectly aligned, which significantly facilitates the installation process in difficult architectural conditions. The devices are designed to operate in variable weather conditions. The robust housing made of high-quality plastic provides IP54 protection, meaning resistance to dust and water splashes from any direction. Additionally, the electronics are protected against the adverse effects of sunlight, which prevents false alarms and extends the lifespan of the components.
Compact dimensions and an aesthetic black color ensure that the photocells blend discreetly with fence elements without disrupting their appearance. A fast response time of just 13 milliseconds guarantees an instantaneous system reaction to the presence of an obstacle. The device is compatible with a wide range of drives, especially from the FAAC series, which confirms its versatility and professional pedigree. By choosing this set, you are investing in peace of mind and the certainty that your gate operates in a predictable and safe manner for the surroundings.
Specification
Standard
Infrared barrier TX/RX (Transmitter and Receiver)
Operating range
Up to 20 meters in optimal environmental conditions
Radiation angle
± 7 degrees at a distance of 20 meters and ± 13.5 degrees at a distance of 5 meters
Response time
Instantaneous 13 ms ensuring immediate stopping of the automation system
Power supply
Universal 24 V AC/DC (supports DC and AC current)
Power consumption
Transmitter: 20 mA, Receiver: 30 mA
Number of relay outputs
1 relay output
Output
1 x NC (Normally Closed)
Contact load capacity
Maximum 60 VA / 24 W
Horizontal adjustment
Wide range of angle adjustment ± 90 degrees (total 180 degrees of adjustment)
Mounting
Surface mounting directly on a wall/post or on a column
Housing
Made of high-quality plastic resistant to external conditions
Protection class
IP54 - protection against dust ingress and water splashes from any direction
Operating temperature
Wide temperature range from -20 °C to 55 °C
Color
Black (aesthetic finish)
Contents
1x Transmitter (TX)
1x Receiver (RX)
Mounting accessories
User manual
Dimensions, Weight
Product dimensions: 41 x 42 x 130 mm (D x W x H)
Package dimensions: 50 x 85 x 135 mm (D x W x H)
Product weight: 146 g
Weight with packaging: 188 g
