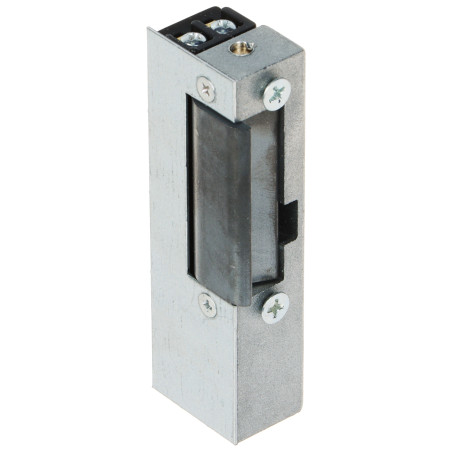

Asymmetric reinforced NC 8-14V DC low-current electric strike for left and right doors steel bolt 6000N BIRA EL1-005
zł159.24
Tax included
The electric strike is a key component of access control systems, and the EL1 series model stands out from the competition with its exceptional build quality. The device has been designed for the most demanding installations where reliability is a priority. Thanks to the use of an asymmetric housing and a reinforced steel strike, this product offers significantly higher resistance to forced entry than standard adjustable solutions. The lack of strike adjustment is a deliberate design choice here, which eliminates the weakest point of the mechanism, resulting in an impressive static strength of up to 6000N. It is an ideal solution for high-traffic doors, such as entrances to stairwells in multi-family buildings, office buildings, or public utility facilities.
Product advantages:
- Exceptional mechanical durability due to the use of a full steel bolt without weakening adjustment notches.
- Low-current coil allowing for long-term operation without the risk of overheating the actuator.
- Full installation versatility – the asymmetric design fits both left and right doors.
- Extreme pressure resistance (600 kg), which guarantees the highest level of property security.
- Wide compatibility with most intercom systems, video intercoms, and access control readers.
- Very long service life confirmed by factory tests at the level of 200,000 trouble-free opening cycles.
The product works perfectly in wooden, metal, and PVC joinery. Its compact dimensions allow for installation in narrow door frames, and the asymmetric structure makes it easy to adapt to specific installation conditions. By choosing this electric strike, you are investing in peace of mind and the certainty that the security system will operate flawlessly for many years, regardless of the intensity of use and operating conditions.
Asymmetric reinforced NC 8-14V DC low-current electric strike for left and right doors steel bolt 6000N
Model: BIRA EL1-005
EAN: 6931240042465 SKU: 931042462
- Reinforced steel strike without adjustment
- Very high mechanical strength up to 6000N
- Low-current coil (440mA at 12V DC)
- Asymmetric housing
- Universal: for left and right doors
- Permissible unlimited continuous operation time
- High durability: 200,000 operating cycles
- NC operating mode (normally closed)
Description
The electric strike is a key component of access control systems, and the EL1 series model stands out from the competition with its exceptional build quality. The device has been designed for the most demanding installations where reliability is a priority. Thanks to the use of an asymmetric housing and a reinforced steel strike, this product offers significantly higher resistance to forced entry than standard adjustable solutions. The lack of strike adjustment is a deliberate design choice here, which eliminates the weakest point of the mechanism, resulting in an impressive static strength of up to 6000N. It is an ideal solution for high-traffic doors, such as entrances to stairwells in multi-family buildings, office buildings, or public utility facilities.
Product advantages:
- Exceptional mechanical durability due to the use of a full steel bolt without weakening adjustment notches.
- Low-current coil allowing for long-term operation without the risk of overheating the actuator.
- Full installation versatility – the asymmetric design fits both left and right doors.
- Extreme pressure resistance (600 kg), which guarantees the highest level of property security.
- Wide compatibility with most intercom systems, video intercoms, and access control readers.
- Very long service life confirmed by factory tests at the level of 200,000 trouble-free opening cycles.
The product works perfectly in wooden, metal, and PVC joinery. Its compact dimensions allow for installation in narrow door frames, and the asymmetric structure makes it easy to adapt to specific installation conditions. By choosing this electric strike, you are investing in peace of mind and the certainty that the security system will operate flawlessly for many years, regardless of the intensity of use and operating conditions.
Specification
Device type
Asymmetric reinforced electric strike
Product series
Biratronik EL1 - professional line with increased mechanical strength
Housing construction
Asymmetric, made of high-quality metal alloys, reinforced steel bolt without adjustment to ensure maximum rigidity and resistance to forced entry
Power parameters
Wide operating voltage range from 8V to 14V DC, which allows for stable operation even during voltage drops on long power lines in extensive installations
Energy consumption
Low-current device, power consumption is only 440 mA at 12V DC, which minimizes the load on the system power supply and limits heat generation
Mechanical strength
The permissible static load acting on the strike is 6000 N (approx. 600 kg), which classifies the product in the group of high-security devices
Operating mode and logic
NC (Normally Closed) - opening occurs after applying voltage, no voltage blocks the passage; no memory function or latch lock for increased security
Installation compatibility
Universal design allowing for installation in left and right doors; ideal for wooden, metal, and PVC joinery
Application and purpose
Access control systems, intercoms, video intercoms in residential and commercial construction; dedicated to high-traffic areas
Additional electrical parameters
Coil resistance is 27 Ohm, which ensures optimal operating characteristics in standard low-voltage installations
Durability and operating cycles
The tested number of opening cycles is a minimum of 200,000, which guarantees many years of operation without the need for servicing
Special features and advantages
Permissible continuous operation time is unlimited; lack of clearance adjustment translates into significantly higher resistance to mechanical shocks
Environmental conditions
Device adapted for indoor use and in places sheltered from direct weather conditions
Warranty
2 years (24 months) provided by the manufacturer BIRA
Contents
1x Asymmetric electric strike EL1-005
Dimensions, Weight
Product dimensions: 28 x 20 x 90 mm (D x W x H)
Packaging dimensions: 28 x 35 x 97 mm (D x W x H)
Product weight: 210 g
Weight with packaging: 230 g
