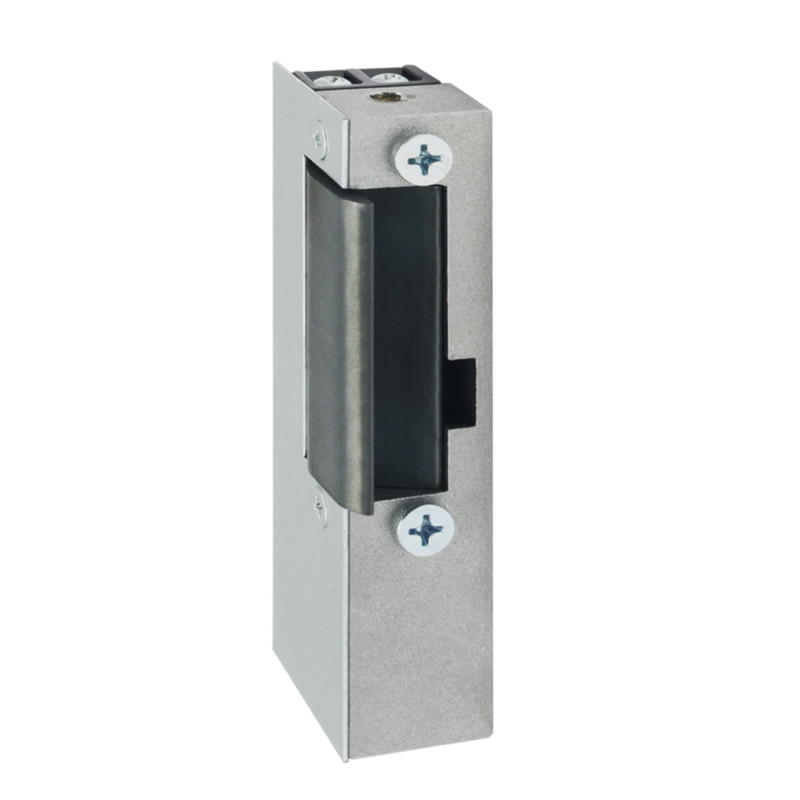

Asymmetric Reinforced NC Electric Strike 8-14V AC for Doors Gates and Cabinets BIRA EL1-001
zł148.51
Tax included
The EL1-001 electric strike by Biratronik is a high-class actuator designed for access control systems as well as intercom and video intercom installations. The device features an asymmetric housing, which allows for precise installation in various types of door frames. A key advantage of this model is the use of a reinforced steel strike that does not have an adjustment function. The lack of adjustment is a deliberate design choice in this case, which significantly increases the mechanical resistance of the bolt to breaking and operational wear, making it a much more durable solution compared to standard adjustable versions.
The product is widely used in securing wooden, metal, and PVC doors. Thanks to its versatility, it works perfectly not only in entrance doors but also in property gates and technical cabinets. It is a solution dedicated to high-traffic areas, such as multi-family buildings, office buildings, or commercial facilities, where reliability and durability are a priority.
Product advantages:
- Exceptional mechanical resistance to pressure up to 6000N, which guarantees a high level of security.
- High operational durability confirmed by tests at 200,000 opening cycles.
- Solid, steel construction resistant to harsh operating conditions.
- Can be installed in both right and left doors.
- Stable operation in a wide supply voltage range from 8V to 14V AC.
- Low-current operating characteristics, which reduces coil heating and power supply load.
- Renowned Polish manufacturer BIRA, ensuring high quality of workmanship and technical support.
By choosing the EL1-001 electric strike, you are investing in a proven solution that will ensure trouble-free operation of the security system for many years.
Asymmetric Reinforced NC Electric Strike 8-14V AC for Doors Gates and Cabinets
Model: BIRA EL1-001
EAN: 6931240068878 SKU: 931068874
- Asymmetric housing
- Operating mode: NC (Normally Closed - closed without power)
- Reinforced steel strike without adjustment
- High mechanical strength up to 6000 N
- Durability of 200,000 opening cycles
- Wide supply voltage range 8-14V AC
- Universal application: right and left doors
- Low-current coil with 13.2 Ohm resistance
Description
The EL1-001 electric strike by Biratronik is a high-class actuator designed for access control systems as well as intercom and video intercom installations. The device features an asymmetric housing, which allows for precise installation in various types of door frames. A key advantage of this model is the use of a reinforced steel strike that does not have an adjustment function. The lack of adjustment is a deliberate design choice in this case, which significantly increases the mechanical resistance of the bolt to breaking and operational wear, making it a much more durable solution compared to standard adjustable versions.
The product is widely used in securing wooden, metal, and PVC doors. Thanks to its versatility, it works perfectly not only in entrance doors but also in property gates and technical cabinets. It is a solution dedicated to high-traffic areas, such as multi-family buildings, office buildings, or commercial facilities, where reliability and durability are a priority.
Product advantages:
- Exceptional mechanical resistance to pressure up to 6000N, which guarantees a high level of security.
- High operational durability confirmed by tests at 200,000 opening cycles.
- Solid, steel construction resistant to harsh operating conditions.
- Can be installed in both right and left doors.
- Stable operation in a wide supply voltage range from 8V to 14V AC.
- Low-current operating characteristics, which reduces coil heating and power supply load.
- Renowned Polish manufacturer BIRA, ensuring high quality of workmanship and technical support.
By choosing the EL1-001 electric strike, you are investing in a proven solution that will ensure trouble-free operation of the security system for many years.
Specification
Device type
Professional electric strike designed for locking and releasing doors in access control systems.
Product series
Biratronik EL1 - reinforced line with increased mechanical resistance.
Operating mode
NC (Normally Closed) - the bolt remains locked in the de-energized state; opening occurs after applying an electrical pulse.
Rated voltage
Wide operating range from 8 V to 14 V AC (alternating current), which allows for compatibility with most intercom transformers.
Power consumption
Approximately 640 mA when powered by 12 V AC, which classifies the device as energy-efficient.
Mechanical strength
Resistance to static pressure acting on the strike is as high as 6000 N (Newtons), which corresponds to a mass of approximately 600 kg.
Mechanical durability
The device has been designed and tested for a minimum of 200,000 correct opening and closing cycles.
Strike construction
Made of high-grade steel, reinforced, fixed (no tongue adjustment), which eliminates play and increases structural rigidity.
Housing type
Asymmetric, requiring appropriate preparation of the mounting hole depending on the door direction.
Electrical parameters
Coil resistance is 13.2 Ohm, which ensures stable operating characteristics of the electromagnet.
Opening direction
Universal - the design allows for installation in left and right doors (after appropriate rotation).
Compatibility
Designed for installation in aluminum, steel, wooden profiles, and PVC joinery.
Application
Ideal for multi-family housing, access control systems in offices, and securing cabinets and lockers.
Special features
Low-current mechanism reducing the risk of power failure and overheating of the actuator.
Software
The device is a purely mechanical and electrical component; it does not have built-in firmware, a mobile application, or a digital interface. Control is performed by applying the appropriate supply voltage from an external controller, keypad, or intercom, which releases the mechanical lock of the strike and allows the door to be opened.
Contents
1x EL1-001 Electric strike
1x Technical documentation
Dimensions, Weight
Product dimensions: 27 x 20 x 90 mm (D x W x H)
Packaging dimensions: 97 x 35 x 28 mm (D x W x H)
Product weight: 220 g
Weight with packaging: 230 g
