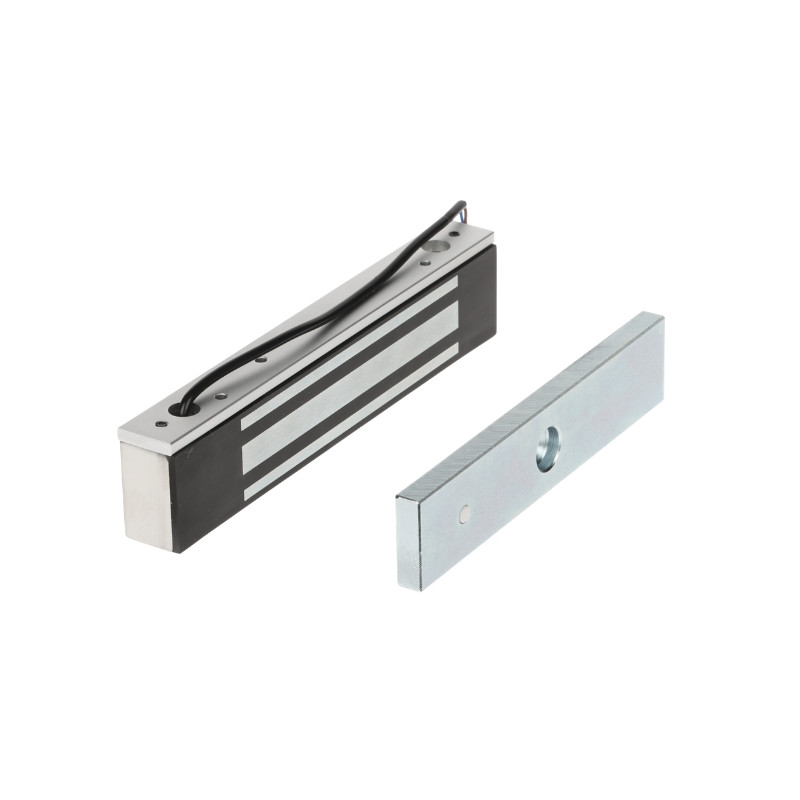

External waterproof electromagnetic lock 280kg 12V DC Fail-Safe for gates and entrance doors DANTOM DT-280W/12V
zł214.83
Tax included
The DT-280W/12V external electromagnetic lock is a professional actuator for access control systems, characterized by exceptional durability and resistance to external factors. The device is designed to operate in harsh conditions, which is confirmed by its fully waterproof housing, ideal for outdoor installation.
The main advantage of the lock is its enormous holding force of 280 kg, making it almost impossible to force open using physical strength. The design based on the phenomenon of electromagnetism eliminates the need for moving mechanical parts, such as latches or springs, which in traditional locks often fail or wear out due to corrosion and frost. As a result, the lock guarantees many years of maintenance-free operation even with very high traffic intensity.
The device operates in fail-safe mode, which means that in the event of a power failure (e.g., during a power outage or fire system activation), the door is automatically unlocked. This is a key feature from the point of view of fire safety and building evacuation. The installation of the lock is intuitive and consists of attaching the electromagnet to the door frame and the metal plate to the door leaf itself.
This product is widely used in securing entrance gates, garden wickets, and entrance doors to industrial, warehouse, and office facilities. Solid construction made of high-quality materials ensures an aesthetic appearance and high resistance to sabotage attempts. By choosing this model, you are investing in a proven solution that combines modern technology with ease of use and the highest safety standard in all weather conditions.
External waterproof electromagnetic lock 280kg 12V DC Fail-Safe for gates and entrance doors
Model: DANTOM DT-280W/12V
EAN: 6931240097762 SKU: 931097762
- High holding force up to 280 kg ensuring effective locking
- Waterproof design adapted for outdoor use
- Fail-Safe operating mode - unlocks when power is cut
- No mechanical parts increasing reliability
- Powered by standard 12V DC voltage
- High-quality corrosion-resistant construction
- Easy surface mounting on various types of doors and gates
- No residual magnetism after power disconnection
Description
The DT-280W/12V external electromagnetic lock is a professional actuator for access control systems, characterized by exceptional durability and resistance to external factors. The device is designed to operate in harsh conditions, which is confirmed by its fully waterproof housing, ideal for outdoor installation.
The main advantage of the lock is its enormous holding force of 280 kg, making it almost impossible to force open using physical strength. The design based on the phenomenon of electromagnetism eliminates the need for moving mechanical parts, such as latches or springs, which in traditional locks often fail or wear out due to corrosion and frost. As a result, the lock guarantees many years of maintenance-free operation even with very high traffic intensity.
The device operates in fail-safe mode, which means that in the event of a power failure (e.g., during a power outage or fire system activation), the door is automatically unlocked. This is a key feature from the point of view of fire safety and building evacuation. The installation of the lock is intuitive and consists of attaching the electromagnet to the door frame and the metal plate to the door leaf itself.
This product is widely used in securing entrance gates, garden wickets, and entrance doors to industrial, warehouse, and office facilities. Solid construction made of high-quality materials ensures an aesthetic appearance and high resistance to sabotage attempts. By choosing this model, you are investing in a proven solution that combines modern technology with ease of use and the highest safety standard in all weather conditions.
Specification
Device type
External electromagnetic lock (surface-mounted)
Holding force
280 kg (approx. 2800 N) - provides very high resistance to forced entry attempts
Rated voltage
12 V DC (Direct Current) - stable parameters
Power consumption
450 mA - optimized energy consumption while maintaining full holding force
Operating mode
Fail-safe (NC - normally closed when powered) - opening occurs after power cut, which is required in fire protection systems
Operating environment
Outdoor and indoor; full resistance to rain, snow, and moisture thanks to a sealed housing
Construction
Solid electromagnet block without moving parts, which eliminates friction and mechanical wear
Lock dimensions
222 x 48 x 26 mm - compact housing facilitating installation on the door frame
Metal plate dimensions
180 x 38 x 12 mm - precisely matched to the electromagnet face
Set weight
1.75 kg (total electromagnet and plate) - proves the solidity of the materials used
Selected features
Waterproof (IP), no residual magnetism (immediate release after power cut), quiet operation
Application
Gates, wickets, emergency doors, entrances to production halls and warehouses
Warranty
2 years (24 months) provided by authorized service
System integration
Full compatibility with access controllers, card readers, keypad locks, and intercom and alarm systems
Software and control
The device is a passive actuator and does not have its own software interface. Control is performed at the physical level via relay modules of host systems (e.g., access controller). Thanks to the simple current-voltage characteristic, the lock can be integrated with advanced building management systems (BMS) and mobile applications for remote door opening, provided the control system has such functionality. The lack of complex electronics inside the lock itself drastically increases its resistance to surges and electromagnetic interference in an industrial environment.
Contents
1x Electromagnetic lock (electromagnet)
1x Metal plate (armature)
1x Set of screws and mounting accessories
1x User manual and wiring diagram
Dimensions, Weight
Product dimensions: 26 x 222 x 48 mm (D x W x H)
Package dimensions: 60 x 265 x 65 mm (D x W x H)
Product weight: 1750 g
Weight with packaging: 1900 g
