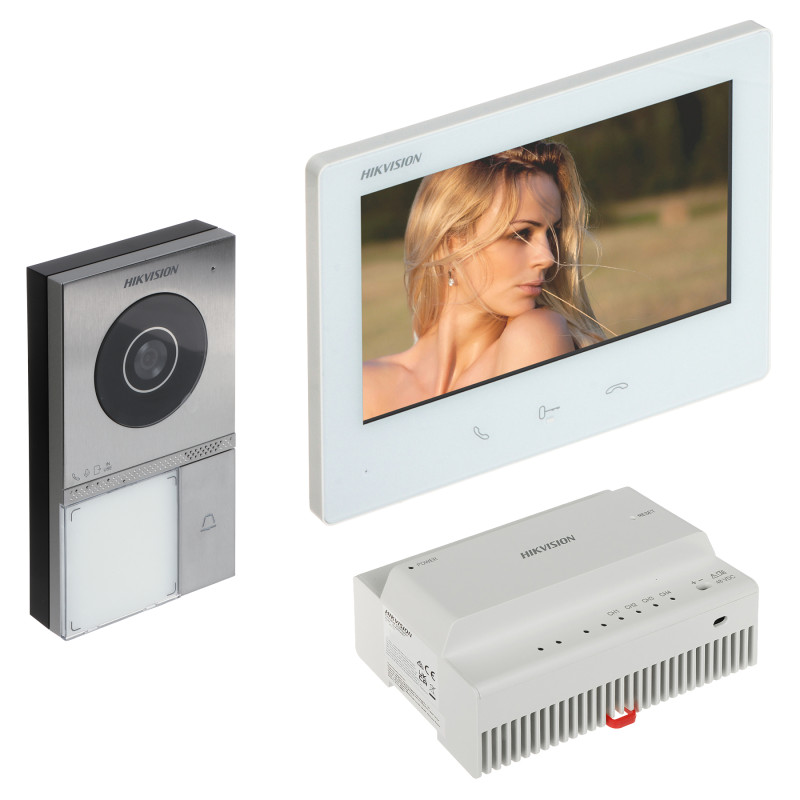

HD 2-Wire Video Intercom Kit 7 Inch Touch Monitor WiFi RFID Reader IP65 IK08 Hik-Connect System Hikvision DS-KIS705EY
zł2,457.54
Tax included
This modern and highly functional video intercom kit is the perfect solution for those seeking safety and convenience in daily use. The system, based on 2-wire technology, allows for the use of existing cabling infrastructure, making it an excellent choice for both new buildings and the modernization of old intercom installations. The heart of the kit is an elegant indoor panel with a 7-inch capacitive touch screen, which provides a crystal-clear HD image and intuitive operation of all system functions.
The advantages of this solution are invaluable. Thanks to the built-in Wi-Fi module, the system integrates with a mobile application, allowing you to answer calls and open the gate from anywhere in the world. The door station is equipped with a 2 MP camera with a 135-degree wide viewing angle, which guarantees full visibility of people standing in front of the entrance, even in difficult lighting conditions thanks to the integrated IR illuminator. A solid metal housing with an IP65 ingress protection rating and IK08 mechanical resistance ensures reliable operation of the device for many years, protecting it against weather conditions and vandalism.
An additional advantage is the built-in RFID proximity reader operating in the 13.56 MHz standard, which allows for quick and convenient entrance opening using cards or key fobs. The system also offers advanced audio features, such as noise suppression and echo cancellation, which translates into the highest quality of calls. The ability to expand with a microSD memory card up to 128 GB allows for automatic saving of photos and voice messages from visitors you missed while away. By choosing this kit, you are investing in peace of mind, modern design, and technology that significantly improves the standard of living and the safety of your family.
HD 2-Wire Video Intercom Kit 7 Inch Touch Monitor WiFi RFID Reader IP65 IK08 Hik-Connect System
Model: Hikvision DS-KIS705EY
EAN: 6931240093078 SKU: 931093073
- Complete video intercom system in 2-wire HD technology
- Monitor with 7-inch high-resolution capacitive touch screen
- Door station with 2 MP camera and ultra-wide 135° viewing angle
- Built-in Wi-Fi module for support via the Hik-Connect mobile app
- Integrated RFID card and key fob reader (13.56 MHz S50)
- High resistance to external conditions (IP65) and impacts (IK08)
- Two-way audio communication with noise and echo reduction
- Ability to save photos and voice messages on a microSD card
- 48V DC system power supply via a dedicated bus switch
- Easy surface mounting using the included protective housing
Description
This modern and highly functional video intercom kit is the perfect solution for those seeking safety and convenience in daily use. The system, based on 2-wire technology, allows for the use of existing cabling infrastructure, making it an excellent choice for both new buildings and the modernization of old intercom installations. The heart of the kit is an elegant indoor panel with a 7-inch capacitive touch screen, which provides a crystal-clear HD image and intuitive operation of all system functions.
The advantages of this solution are invaluable. Thanks to the built-in Wi-Fi module, the system integrates with a mobile application, allowing you to answer calls and open the gate from anywhere in the world. The door station is equipped with a 2 MP camera with a 135-degree wide viewing angle, which guarantees full visibility of people standing in front of the entrance, even in difficult lighting conditions thanks to the integrated IR illuminator. A solid metal housing with an IP65 ingress protection rating and IK08 mechanical resistance ensures reliable operation of the device for many years, protecting it against weather conditions and vandalism.
An additional advantage is the built-in RFID proximity reader operating in the 13.56 MHz standard, which allows for quick and convenient entrance opening using cards or key fobs. The system also offers advanced audio features, such as noise suppression and echo cancellation, which translates into the highest quality of calls. The ability to expand with a microSD memory card up to 128 GB allows for automatic saving of photos and voice messages from visitors you missed while away. By choosing this kit, you are investing in peace of mind, modern design, and technology that significantly improves the standard of living and the safety of your family.
Specification
System compatibility
HIKVISION 2-wire - EY series (HD two-wire system)
Camera parameters
Sensor: 2 MP; Viewing angle: 135 °; IR illuminator: Yes (automatic); Video compression: H.264
Door station functions
Call button: 1 pc. (configurable for 2); RFID reader: 13.56 MHz S50; Tamper detection: Yes (detachment from the surface); Addressing: Rotary switches
Door station interfaces
Alarm inputs: 2 pcs.; Relay outputs: 1 x NO/NC; Lock control: Pulse output 20V/4A + Relay output 30V DC/2A
Indoor panel - Screen
Type: 7" Capacitive touch screen; Resolution: 1024 x 600 px; Buttons: Touch function buttons
Memory and recording
Internal memory: 128 MB; Memory card support: MicroSD up to 128 GB; Functions: Automatic photos, voice messages
Audio communication
Built-in microphone and speakers; Two-way communication; Noise suppression and echo cancellation
Network connectivity
Wi-Fi: IEEE 802.11 b/g/n; App cooperation: Hik-Connect (Android/iOS)
Bus switch
Number of ports: 4 x HIKVISION 2-wire; Mounting: DIN rail (TS-35); Housing: Plastic
Outdoor panel construction
Material: Metal; Color: Black; Ingress protection: IP65; Resistance class: IK08
Mounting housing
Type: Surface-mounted; Material: Powder-coated steel; Color: Silver; Dimensions: 190 x 109 x 46 mm
Power supply and consumption
System power supply: 48V DC (2-wire); Station power consumption: < 6W; Monitor power consumption: ≤ 5W
Operating conditions
Station operating temperature: -40 °C ... 60 °C; Monitor operating temperature: -10 °C ... 50 °C
Hik-Connect software
The Hik-Connect application is an advanced tool for managing security systems from mobile devices. It allows users to remotely view the video intercom camera image in real-time, answer audio-video calls, and remotely open the gate or door from anywhere in the world with Internet access. The application offers a push notification system, so the user is immediately informed about a doorbell call. Additionally, it allows for viewing the event history, saved photos, and video recordings. The interface is intuitive and available in Polish, which significantly increases the comfort of daily system use.
General data
Supported languages: Polish, English, and others; Warranty: 3 years; SAP Code: 305305966
Contents
1x Outdoor panel (Video intercom)
1x Indoor panel (7" monitor)
1x Surface-mounted housing
1x 2-wire switch
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 20 x 190 x 138 mm (D x W x H)
Package dimensions: 135 x 290 x 230 mm (D x W x H)
Product weight: 1280 g
Weight with packaging: 1972 g
