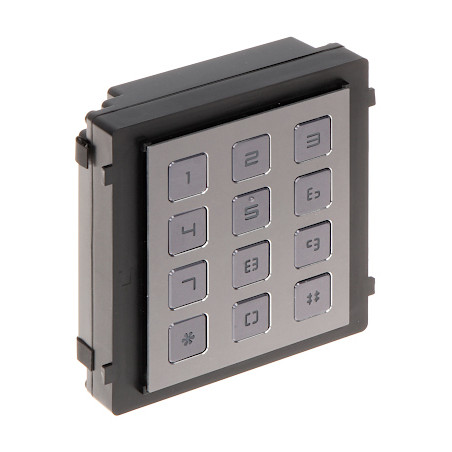

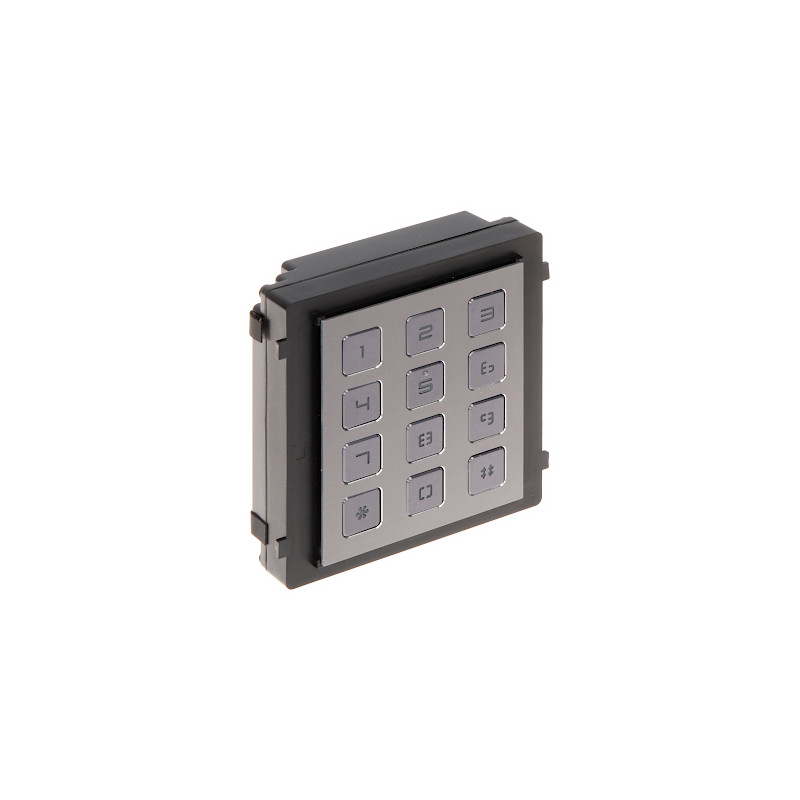

Keypad module for IP video intercom modular system backlit IP65 IK07 Hikvision DS-KD-KP
zł861.00
Tax included
The DS-KD-KP keypad module is an advanced component that expands the functionality of the Hikvision modular video intercom system. The device has been designed for users who value convenience and security. Thanks to the use of high-quality materials, such as aluminium and durable plastic, the module is characterised by exceptional durability and resistance to harsh weather conditions, which is confirmed by the IP65 ingress protection rating and IK07 mechanical resistance class.The main advantage of the DS-KD-KP module is the ability to open a door or gate using a PIN code, which eliminates the need for a physical key or proximity card. The keypad features large, legible buttons that are also backlit, which significantly facilitates device operation after dark. The Hikvision modular system allows for any configuration of the external panel, adapting it to the individual needs of the resident or facility administrator.Installation of the device is extremely simple and takes place in dedicated surface-mounted or flush-mounted housings from the DS-KD-ACF and DS-KD-ACW series. The module connects to the main unit via a simple interface, and power is drawn directly from the camera module, which simplifies the wiring of the entire system. It is an ideal solution for single-family homes, offices, and modern housing estates where aesthetics and reliability count. By choosing this product, you gain the certainty of operation in a wide temperature range from -40°C to 60°C, which guarantees stable performance all year round, regardless of the weather.Additionally, this module is fully compatible with the Hikvision ecosystem, which allows for integration with video surveillance and alarm systems. The aesthetic, silver finish makes the entrance panel look modern and professional on any facade. The solid construction protects against vandalism, and precise workmanship ensures that the buttons do not jam even after many years of intensive use. This is an investment in comfort and security at the highest level, which will work in any conditions.
Keypad module for IP video intercom modular system backlit IP65 IK07
Model: Hikvision DS-KD-KP
EAN: 6931240093207 SKU: 931093202
- Large, legible buttons for easy operation
- LED keypad backlight for better visibility at night
- High IP65 ingress protection rating
- IK07 mechanical resistance class
- Made of aluminium and durable plastic
- Full compatibility with the Hikvision modular system
- Wide operating temperature range from -40°C to 60°C
Description
The DS-KD-KP keypad module is an advanced component that expands the functionality of the Hikvision modular video intercom system. The device has been designed for users who value convenience and security. Thanks to the use of high-quality materials, such as aluminium and durable plastic, the module is characterised by exceptional durability and resistance to harsh weather conditions, which is confirmed by the IP65 ingress protection rating and IK07 mechanical resistance class.
The main advantage of the DS-KD-KP module is the ability to open a door or gate using a PIN code, which eliminates the need for a physical key or proximity card. The keypad features large, legible buttons that are also backlit, which significantly facilitates device operation after dark. The Hikvision modular system allows for any configuration of the external panel, adapting it to the individual needs of the resident or facility administrator.Installation of the device is extremely simple and takes place in dedicated surface-mounted or flush-mounted housings from the DS-KD-ACF and DS-KD-ACW series. The module connects to the main unit via a simple interface, and power is drawn directly from the camera module, which simplifies the wiring of the entire system. It is an ideal solution for single-family homes, offices, and modern housing estates where aesthetics and reliability count. By choosing this product, you gain the certainty of operation in a wide temperature range from -40°C to 60°C, which guarantees stable performance all year round, regardless of the weather.Additionally, this module is fully compatible with the Hikvision ecosystem, which allows for integration with video surveillance and alarm systems. The aesthetic, silver finish makes the entrance panel look modern and professional on any facade. The solid construction protects against vandalism, and precise workmanship ensures that the buttons do not jam even after many years of intensive use. This is an investment in comfort and security at the highest level, which will work in any conditions.Specification
Compatibility
DS-KD8003-IME1, DS-KD8003-IME2
Purpose
Expansion of the modular video intercom system with a numeric keypad
Installation
In dedicated housings of the DS-KD-ACF (flush-mounted) and DS-KD-ACW (surface-mounted) series
Material
Aluminium + Plastic
Ingress protection rating
IP65
Mechanical resistance class
IK07
Backlight
Yes, backlit keypad buttons
Keypad
12 physical buttons (0-9, *, #)
Power supply
Supplied by the main module DS-KD8003-IME1 or DS-KD8003-IME2
Power consumption
≤ 2 W
Operating temperature
-40 °C ... 60 °C
Ambient humidity
10 ... 95 % (non-condensing)
Colour
Silver
SAP / Manufacturer code
305301207 / DS-KD-KP
Software and Management
The device integrates with the system managed by the Hik-Connect mobile application and the iVMS-4200 client software. The Hik-Connect application enables remote call answering, real-time camera image preview, and remote entrance opening. The iVMS-4200 software is a comprehensive security management system that allows for full configuration of video intercom parameters, access code management, schedule creation, and event archiving. The interface is intuitive and available in Polish, which allows for easy system administration even by people without special technical knowledge. The system supports push notifications on mobile devices, informing about every attempt to establish a connection or security breach. Thanks to the P2P cloud, remote access configuration does not require a public IP address.
Contents
1x DS-KD-KP keypad module
1x Mounting accessories
1x Quick start guide
Dimensions, Weight
Product dimensions: 34 x 100 x 98 mm (D x W x H)
Packaging dimensions: 80 x 155 x 155 mm (D x W x H)
Product weight: 270 g
Weight with packaging: 404 g
