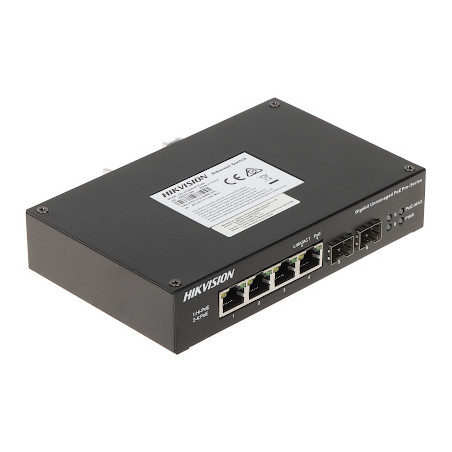

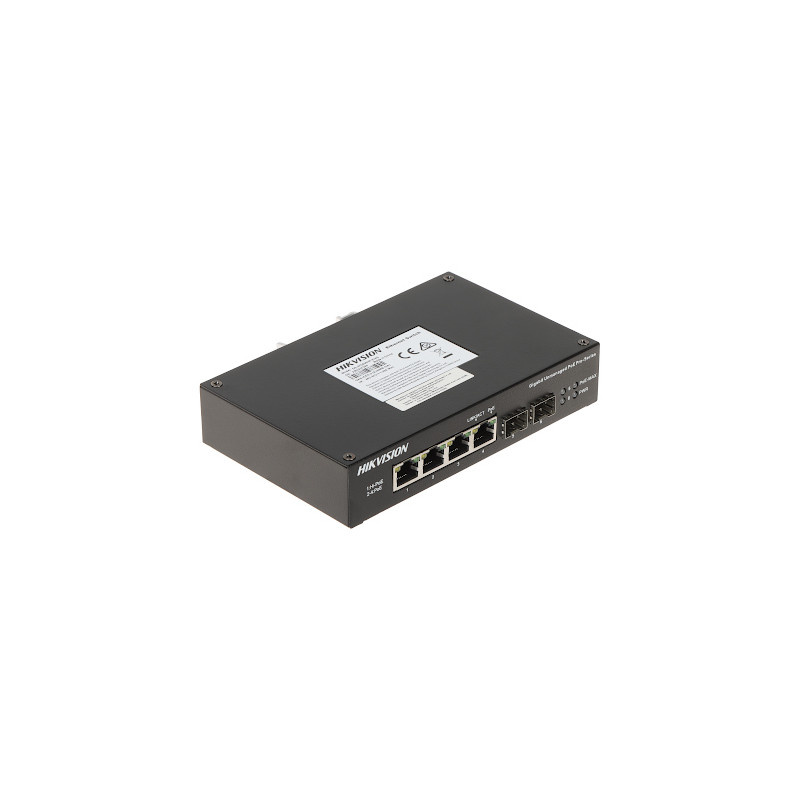

4-port Gigabit SFP Hi-PoE 60W Watchdog PoE Switch with Port Isolation DIN Hikvision DS-3T0506HP-E/HS
zł814.26
Tax included
The DS-3T0506HP-E/HS PoE switch is a professional and highly efficient network device designed by the global leader in security systems – Hikvision. This 4-port desktop switch, with DIN rail mounting capability, is an ideal solution for modern IP surveillance installations as well as extensive office and home networks. Thanks to Gigabit Ethernet (10/100/1000 Mbps) support on all LAN ports, the device guarantees fast and stable data transmission without delays.
A key advantage of the DS-3T0506HP-E/HS model is the support for Hi-PoE technology on the first port, which allows for delivering power up to 60W. This solution is dedicated to demanding devices such as PTZ cameras or advanced access points. The remaining three ports support the PoE standard (802.3af/at) with up to 30W per port, while maintaining a total power budget of 60W. Additionally, the switch is equipped with two SFP (Uplink) ports, which enable integration with fiber optic backbones, essential for long-distance data transmission.
The device features a range of intelligent functions, such as PoE Watchdog, which automatically monitors the status of connected devices and restarts the power supply if no response is detected. Extend mode allows for data and power transmission up to 300 meters, which significantly facilitates installation planning in large facilities. The solid metal housing and wide operating temperature range (from -30°C to 65°C) make the switch resistant to harsh environmental conditions. By choosing the DS-3T0506HP-E/HS, you are investing in security, reliability, and the highest quality of network transmission.
4-port Gigabit SFP Hi-PoE 60W Watchdog PoE Switch with Port Isolation DIN
Model: Hikvision DS-3T0506HP-E/HS
EAN: 6931240018392 SKU: 931018399
- 4 x 10/100/1000 Base-TX RJ45 ports with PoE support
- 1 x Hi-PoE port supporting up to 60W power (802.3bt standard)
- 2 x 1000 Base-X SFP ports dedicated for Uplink connections
- PoE Watchdog function – automatic restart of unresponsive devices
- Extend mode – data and power transmission up to 300m (ports 3 and 4)
- Port isolation for increased network security and stability
- High surge protection up to 6kV on PoE ports
- Robust metal housing designed for 35mm DIN rail mounting
- Wide operating temperature range from -30°C to +65°C
- 48V DC / 1.35A power adapter included
Description
The DS-3T0506HP-E/HS PoE switch is a professional and highly efficient network device designed by the global leader in security systems – Hikvision. This 4-port desktop switch, with DIN rail mounting capability, is an ideal solution for modern IP surveillance installations as well as extensive office and home networks. Thanks to Gigabit Ethernet (10/100/1000 Mbps) support on all LAN ports, the device guarantees fast and stable data transmission without delays.
A key advantage of the DS-3T0506HP-E/HS model is the support for Hi-PoE technology on the first port, which allows for delivering power up to 60W. This solution is dedicated to demanding devices such as PTZ cameras or advanced access points. The remaining three ports support the PoE standard (802.3af/at) with up to 30W per port, while maintaining a total power budget of 60W. Additionally, the switch is equipped with two SFP (Uplink) ports, which enable integration with fiber optic backbones, essential for long-distance data transmission.
The device features a range of intelligent functions, such as PoE Watchdog, which automatically monitors the status of connected devices and restarts the power supply if no response is detected. Extend mode allows for data and power transmission up to 300 meters, which significantly facilitates installation planning in large facilities. The solid metal housing and wide operating temperature range (from -30°C to 65°C) make the switch resistant to harsh environmental conditions. By choosing the DS-3T0506HP-E/HS, you are investing in security, reliability, and the highest quality of network transmission.
Specification
Standards and protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab
LAN ports
4 x RJ45 10/100/1000 Base-TX (1 x Hi-PoE 802.3af/at/bt + 3 x PoE 802.3af/at)
Uplink ports
2 x SFP 1000 Base-X (Gigabit)
Transmission speed
10 / 100 / 1000 Mbps for LAN ports; 1000 Mbps for SFP ports
PoE output power
Port 1: max. 60 W (Hi-PoE); Ports 2-4: max. 30 W per port; Total budget: 60 W
Transmission range
Extend Off: 100 m (1000 Mbps); Extend On: 300 m (10 Mbps on ports 3 and 4)
MAC address table
2k - automatic address learning and aging
Software and intelligent functions
The device has built-in software managing the PoE Watchdog (PD Alive) function. This system continuously analyzes the activity of connected PoE devices. If no data transmission or no response from the camera is detected (device hang), the software automatically restarts the power supply on the specific port. This process allows for self-repair of network errors without human intervention, which is crucial in 24/7 surveillance systems. Additionally, the software supports port isolation, which prevents broadcast storms and increases data security within the network.
Security
6 kV surge protection for PoE ports; Auto MDI/MDI-X detection
LED indicators
Power, Link/Act, PoE, PoE Max, SFP (status of ports 5 and 6)
Power supply
48 V DC / 1.35 A (external power adapter included); Power consumption: max. 65 W
Construction
Metal housing, sealed, suitable for 35 mm DIN rail or flat surface mounting
Environmental conditions
Operating temperature: -30 °C ... 65 °C; Humidity: 5% ... 95% (non-condensing)
Certificates and codes
CE, FCC, RoHS; SAP Code: 301801602
Contents
1x PoE Switch DS-3T0506HP-E/HS
1x 48V/1.35A power adapter
1x User manual
Dimensions, Weight
Product dimensions: 32 x 158 x 104 mm (D x W x H)
Package dimensions: 110 x 225 x 130 mm (D x W x H)
Product weight: 360 g
Weight with packaging: 996 g
