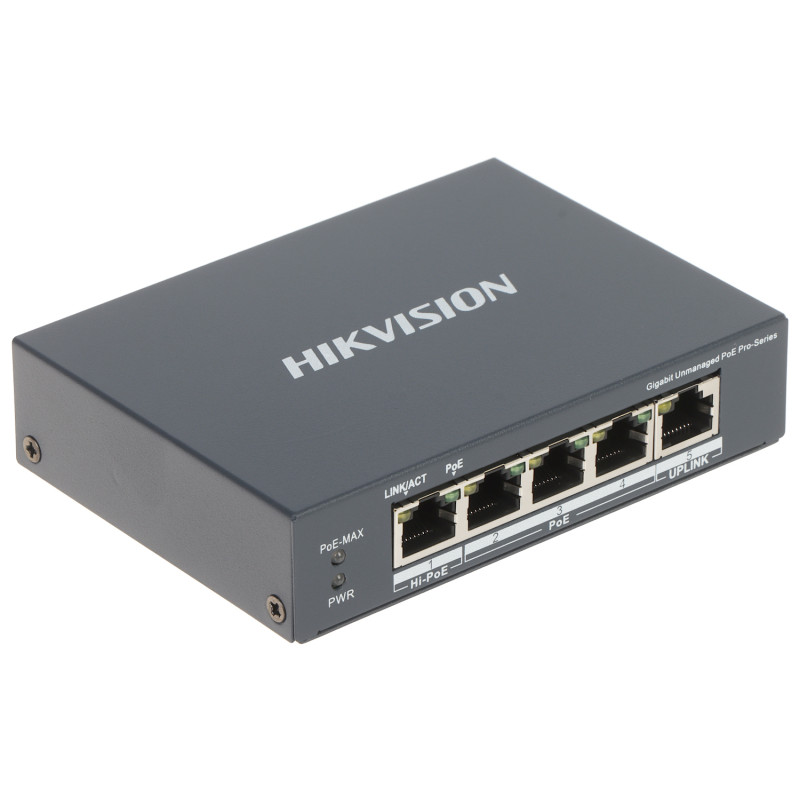

4-Port Gigabit Hi-PoE 60W Network Switch Desktop Extend 300m Watchdog Port Isolation Hikvision DS-3E0505HP-E
zł430.50
Tax included
A professional desktop network switch that serves as the foundation for modern IP monitoring systems and extensive office and home networks. The device offers four gigabit ports with Power over Ethernet support, including one Hi-PoE port with up to 60W of power, allowing for direct powering of demanding devices such as PTZ cameras or advanced access points. Thanks to gigabit throughput on all ports, the switch ensures lightning-fast data exchange without latency, which is crucial for 4K high-resolution image transmission.
The main advantage of the device is the intelligent Extend mode, which allows for signal and power transmission over an impressive distance of up to 300 meters, significantly reducing installation costs by eliminating the need for additional signal repeaters. Additionally, the PoE Watchdog function constantly monitors the status of connected devices and, if no response is detected, automatically restarts the power on the given port, ensuring system continuity without technician intervention. The robust metal housing not only protects the electronics from mechanical damage but also dissipates heat perfectly, ensuring stable operation across a wide temperature range. Port isolation increases network security by preventing unauthorized access between end devices. This is a reliable solution for anyone who values high-quality transmission and easy Plug and Play configuration.
The use of 802.3af/at/bt standards makes the switch compatible with a wide range of network devices, and the automatic MDI/MDI-X detection function eliminates the need for crossover cables. The device is ready to work immediately out of the box, offering the stability and performance required in professional CCTV installations.
4-Port Gigabit Hi-PoE 60W Network Switch Desktop Extend 300m Watchdog Port Isolation
Model: Hikvision DS-3E0505HP-E
EAN: 6931240010198 SKU: 931010190
- 4 x 10/100/1000 Base-TX RJ45 ports with PoE support
- 1 x 10/100/1000 Base-TX RJ45 Uplink port
- Hi-PoE (802.3bt) support on port 1 with up to 60W power
- Extend mode allowing transmission up to 300m (10 Mbps)
- PoE Watchdog function - automatic restart of unresponsive devices
- Port isolation for increased network security
- 6 kV surge protection for PoE ports
- Robust metal desktop housing
- Plug and Play technology - no configuration required
- 48V DC power adapter included
Description
A professional desktop network switch that serves as the foundation for modern IP monitoring systems and extensive office and home networks. The device offers four gigabit ports with Power over Ethernet support, including one Hi-PoE port with up to 60W of power, allowing for direct powering of demanding devices such as PTZ cameras or advanced access points. Thanks to gigabit throughput on all ports, the switch ensures lightning-fast data exchange without latency, which is crucial for 4K high-resolution image transmission.
The main advantage of the device is the intelligent Extend mode, which allows for signal and power transmission over an impressive distance of up to 300 meters, significantly reducing installation costs by eliminating the need for additional signal repeaters. Additionally, the PoE Watchdog function constantly monitors the status of connected devices and, if no response is detected, automatically restarts the power on the given port, ensuring system continuity without technician intervention. The robust metal housing not only protects the electronics from mechanical damage but also dissipates heat perfectly, ensuring stable operation across a wide temperature range. Port isolation increases network security by preventing unauthorized access between end devices. This is a reliable solution for anyone who values high-quality transmission and easy Plug and Play configuration.
The use of 802.3af/at/bt standards makes the switch compatible with a wide range of network devices, and the automatic MDI/MDI-X detection function eliminates the need for crossover cables. The device is ready to work immediately out of the box, offering the stability and performance required in professional CCTV installations.
Specification
LAN Ports
4 x RJ45 10/100/1000 Base-TX (1 x Hi-PoE 802.3af/at/bt + 3 x PoE 802.3af/at)
Uplink Ports
1 x RJ45 10/100/1000 Base-TX
Transmission Speed
10 / 100 / 1000 Mbps - LAN & PoE ports and Uplink port
Maximum Output Power
60 W on Hi-PoE port (Port 1), 30 W on PoE ports (Ports 2-4)
Maximum Total Power
60 W (total PoE budget)
MAC Address Table
2k - ensures smooth address handling in local networks
Operating Modes - Range
Extend Off: 100 m at 1000 Mbps; Extend On: 300 m at 10 Mbps (Ports 3, 4)
Intelligent Functions
PoE Watchdog / PD Alive - monitoring and automatic device restart; Port isolation
Security
6 kV surge protection on PoE ports; Kensington-lock compatibility
LED Indicators
Power, Link/Act, PoE, PoE Max - full control of device operating status
Certificates and Standards
CE, FCC, RoHS; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Housing and Mounting
Metal desktop housing ensuring optimal passive cooling
Power Supply and Consumption
Power supply: 48 V DC / 1.36 A (power adapter included); Power consumption: max. 65 W
Operating Conditions
Operating temperature: -10 °C ... 40 °C; Humidity: 5% - 95% (non-condensing)
Software
The device features built-in firmware with intelligent power management and transmission algorithms. The PoE Watchdog (PD Alive) function is an advanced self-diagnostic mechanism that analyzes traffic on power-supplying ports in real-time. If the software detects that a connected IP camera has frozen, it automatically performs a power cycle (hard reset), restoring the device to operation. Additionally, the software supports intelligent port isolation (VLAN), which prevents the spread of broadcast storms and increases data security within the local network. Optimization algorithms in Extend mode automatically adjust signal modulation parameters to maintain a stable 10 Mbps connection over a distance of up to 300 meters, which is a unique feature of the switch's physical layer control software.
Contents
1x PoE Switch
1x 48V DC Power Adapter
1x User Manual
Dimensions, Weight
Product dimensions: 88 x 121 x 28 mm (D x W x H)
Package dimensions: 105 x 230 x 115 mm (D x W x H)
Product weight: 260 g
Weight with packaging: 834 g
