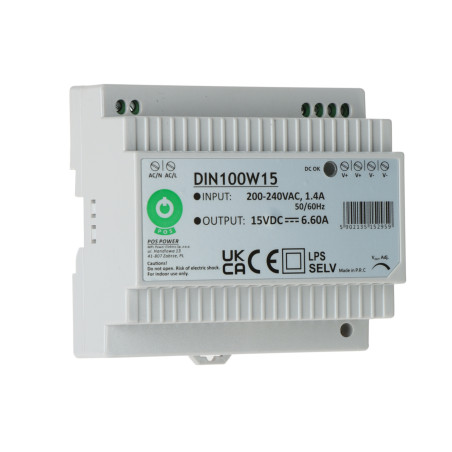

DIN rail switching power supply 15V DC 6.6A 99W voltage regulation TS35 mounting stabilized efficient industrial POS DIN100W15
zł150.86
Tax included
A professional switching power supply designed for mounting on a standard TS35/7.5 or 15 DIN rail is the reliable heart of any automation system. The device has been designed for operation in demanding industrial conditions, offering a stable 15V DC output voltage with an impressive current capacity of 6.6A. With a total power of 99W, this power supply will easily handle extensive video surveillance installations, alarm systems, or PLC controllers.
One of the key advantages of this model is the wide output voltage adjustment range from 13.5V to 17V. This feature is invaluable in situations where receivers are located at a significant distance from the power source – increasing the voltage allows for effective compensation of drops on long cable lines, ensuring ideal operating parameters for end devices.
The power supply design places great emphasis on safety and durability. It features a full package of protections: short-circuit, overload, overvoltage, and advanced thermal protection. The device is resistant to high ambient temperatures, maintaining full efficiency even at 50°C, and can handle temperatures up to 70°C for short periods. High energy efficiency, exceeding 88%, means the power supply generates minimal heat, which directly translates into energy savings and longer trouble-free operation of the entire system.
DIN rail mounting is fast and intuitive, and the dual output terminals allow for aesthetic and safe cable connection without the need for additional distribution blocks. The robust housing protects the interior against mechanical damage, and the compact dimensions allow for optimal use of space in the control cabinet. It is an ideal choice for installers looking for a compromise between high power and reliability in daily operation.
DIN rail switching power supply 15V DC 6.6A 99W voltage regulation TS35 mounting stabilized efficient industrial
Model: POS DIN100W15
EAN: 6931240022191 SKU: 931022197
- Mounting on standard DIN rail TS35/7.5 or 15
- Wide input voltage range 90-264V AC
- Output voltage adjustment 13.5V - 17V DC
- High energy efficiency above 88%
- Complete protection system: SCP, OLP, OVP, OTP
- Two output terminals for easy installation
- Resistance to high operating temperatures up to 70°C
Description
A professional switching power supply designed for mounting on a standard TS35/7.5 or 15 DIN rail is the reliable heart of any automation system. The device has been designed for operation in demanding industrial conditions, offering a stable 15V DC output voltage with an impressive current capacity of 6.6A. With a total power of 99W, this power supply will easily handle extensive video surveillance installations, alarm systems, or PLC controllers.
One of the key advantages of this model is the wide output voltage adjustment range from 13.5V to 17V. This feature is invaluable in situations where receivers are located at a significant distance from the power source – increasing the voltage allows for effective compensation of drops on long cable lines, ensuring ideal operating parameters for end devices.
The power supply design places great emphasis on safety and durability. It features a full package of protections: short-circuit, overload, overvoltage, and advanced thermal protection. The device is resistant to high ambient temperatures, maintaining full efficiency even at 50°C, and can handle temperatures up to 70°C for short periods. High energy efficiency, exceeding 88%, means the power supply generates minimal heat, which directly translates into energy savings and longer trouble-free operation of the entire system.
DIN rail mounting is fast and intuitive, and the dual output terminals allow for aesthetic and safe cable connection without the need for additional distribution blocks. The robust housing protects the interior against mechanical damage, and the compact dimensions allow for optimal use of space in the control cabinet. It is an ideal choice for installers looking for a compromise between high power and reliability in daily operation.
Specification
Power supply type
Switching - an advanced electronic circuit using pulse-width modulation (PWM) technique for efficient electrical energy conversion.
Input voltage
90 ... 264 V AC - universal input voltage range allowing operation in networks with different voltage standards worldwide.
Output voltage
15 V DC - stabilized DC voltage with low ripple, ideal for sensitive electronic circuits.
Output voltage regulation
13.5 ... 17 V - a precision potentiometer located on the front panel allows adjusting the voltage to the specific requirements of the receiver.
Current capacity
6.6 A - maximum continuous current that the power supply can deliver to the load without the risk of overheating or damage.
Power supply power
99 W - total output power of the device, providing a large energy reserve for extensive automation systems.
Number of outputs
2 pcs. - duplicated screw terminals for positive and negative poles, which significantly facilitates bridging and connecting multiple devices.
Efficiency
> 88 % - high energy efficiency coefficient, which means lower power consumption and less heat emission into the control cabinet.
Housing type
DIN - compact housing made of high-quality plastic, adapted for mounting on TS35/7.5 and TS35/15 rails.
Short-circuit protection
Yes - advanced protection system that immediately cuts off power if a short circuit is detected in the output circuit.
Overload protection
Yes - Hiccup type protection or current limiting, protecting the power supply from the effects of connecting too large a load.
Overvoltage protection
Yes - output voltage lockout above a safe level, protecting powered devices from damage.
Thermal protection
Yes - built-in temperature sensor that turns off the power supply if the critical internal temperature is exceeded.
Operating conditions
Temperature -20 °C ... 50 °C, Relative humidity 45 ... 85 % - wide temperature range allowing installation in unheated outdoor cabinets.
Contents
1x DIN100W15 POS switching power supply
1x Complete technical documentation in Polish
1x CE declaration of conformity
Dimensions, Weight
Product dimensions: 56 x 93 x 100 mm (D x W x H)
Package dimensions: 65 x 105 x 105 mm (D x W x H)
Product weight: 302 g
Weight with packaging: 333 g
