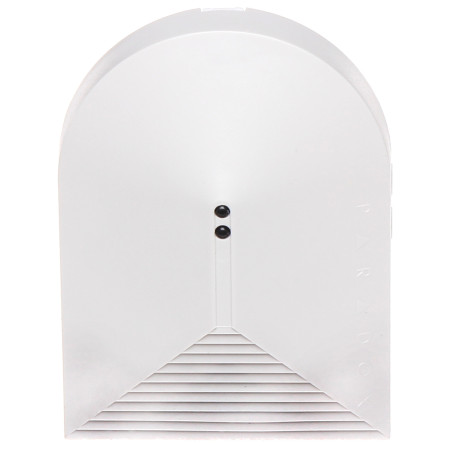

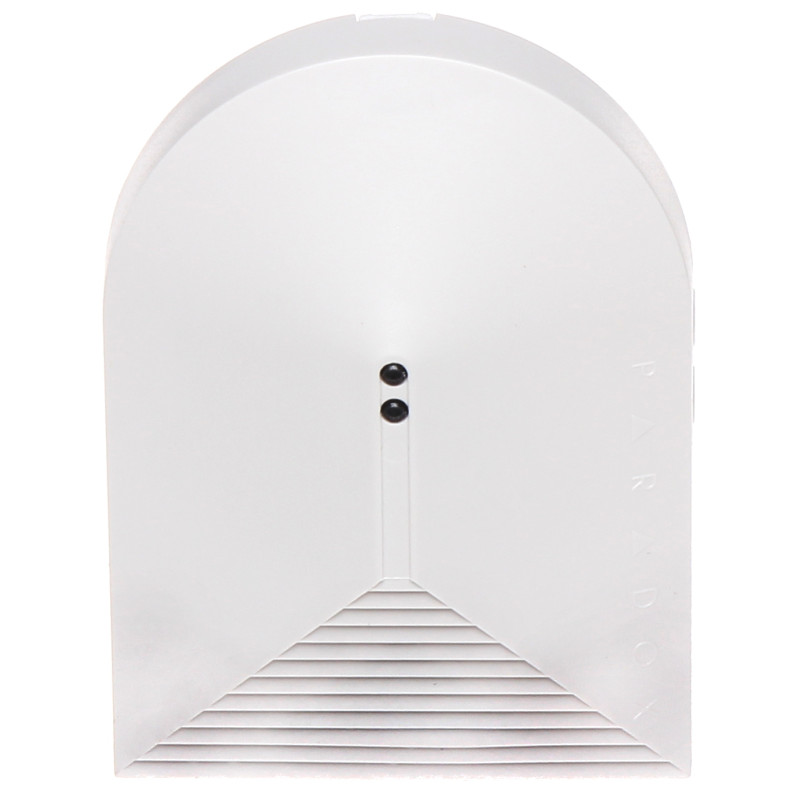

Microprocessor acoustic glass break detector 9m range BUS wired alarm white PARADOX DG457-P2C
zł176.09
Tax included
The professional DG457-P2C acoustic detector by Paradox is an advanced device designed for protecting glass surfaces in alarm systems. Its operation is based on precise, dual-path acoustic signal analysis, which drastically minimizes the risk of false alarms. The device reacts only when it registers a sequence of two sounds: a low-frequency shock wave (impact sound) and a high-frequency glass breaking sound. As a result, accidental impacts on the glass or ambient noise will not trigger unnecessary intervention by security services.
The product's advantages are numerous and significant for the security of the facility. First of all, the detector offers a wide detection range of up to 9 meters, which allows for effective protection of multiple windows or display cases with a single device. It is fully compatible with the Paradox BUS system, which significantly simplifies wiring and configuration in complex installations. Additionally, the built-in self-diagnostic function constantly monitors the performance of components, ensuring the highest level of reliability. The device effectively detects the breakage of various types of glass, including plate, tempered, and laminated, making it an extremely versatile solution for private homes, offices, and commercial facilities. The aesthetic white housing with compact dimensions ensures that the detector blends discreetly into any interior decor without compromising its aesthetics. Choosing this model is a guarantee of stable operation and high effectiveness in detecting burglary attempts through glazing.
Microprocessor acoustic glass break detector 9m range BUS wired alarm white
Model: PARADOX DG457-P2C
EAN: 6931240016107 SKU: 931016107
- Advanced microprocessor-based dual-path signal analysis
- Detection of plate, tempered, and laminated glass breakage
- Full compatibility with Paradox BUS systems
- Wide detection range up to 9 meters
- Built-in device self-diagnostic function
- High immunity to false alarms through frequency analysis
- LED status indication
- Tamper protection
- Compact and aesthetic white housing
Description
The professional DG457-P2C acoustic detector by Paradox is an advanced device designed for protecting glass surfaces in alarm systems. Its operation is based on precise, dual-path acoustic signal analysis, which drastically minimizes the risk of false alarms. The device reacts only when it registers a sequence of two sounds: a low-frequency shock wave (impact sound) and a high-frequency glass breaking sound. As a result, accidental impacts on the glass or ambient noise will not trigger unnecessary intervention by security services.
The product's advantages are numerous and significant for the security of the facility. First of all, the detector offers a wide detection range of up to 9 meters, which allows for effective protection of multiple windows or display cases with a single device. It is fully compatible with the Paradox BUS system, which significantly simplifies wiring and configuration in complex installations. Additionally, the built-in self-diagnostic function constantly monitors the performance of components, ensuring the highest level of reliability. The device effectively detects the breakage of various types of glass, including plate, tempered, and laminated, making it an extremely versatile solution for private homes, offices, and commercial facilities. The aesthetic white housing with compact dimensions ensures that the detector blends discreetly into any interior decor without compromising its aesthetics. Choosing this model is a guarantee of stable operation and high effectiveness in detecting burglary attempts through glazing.
Specification
Detection type
Acoustic glass break detector
Operating range
Adjustable in two stages: 9 meters for high level and 4.5 meters for low level
Signal analysis method
Advanced microprocessor-based dual-path analysis: detection of shock wave (low frequency) and glass breaking sound (high frequency)
System compatibility
Operation in conventional mode (relay) or using the Paradox BUS (e.g., Digiplex EVO systems)
Supported glass types
Plate glass (float), tempered glass, laminated (safety) glass
Sensitivity adjustment
Yes, built-in potentiometer allowing precise adjustment of sensitivity to the acoustic conditions of the room
Alarm signaling
Optical via LED and sending a signal to the alarm control panel via relay or BUS
Power supply electrical parameters
Operating voltage: 9 V ... 16 V DC; Current consumption: maximum 35 mA
Relay contact load
Maximum 150 mA / 28 V DC (resistive load)
Diagnostic functions
Built-in self-diagnostic function checking the correct operation of electronic circuits after power-up
Environmental conditions
Operating temperature: from -20 °C to 50 °C; Designed for indoor use
Housing construction
Made of high-quality white plastic; Dimensions: 66 x 90 x 25 mm
Tamper protection
Tamper switch reacting to the opening of the device housing
Software and interface
The DG457-P2C device uses advanced software for Digital Signal Processing (DSP). This algorithm is designed to compare the amplitude, duration, and frequency of received sounds in real-time with patterns stored in the processor's memory. Thanks to this, the detector can precisely identify the unique acoustic signature of breaking glass while ignoring other loud household noises. In BUS operation mode, the software allows for full integration with Digiplex EVO systems, which enables the installer to perform quick diagnostics, remote testing, and sensitivity setting changes directly from the control panel or service software, without the need for physical access to the detector.
Contents
1x DG457-P2C acoustic detector
1x Set of mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 25 x 66 x 90 mm (D x W x H)
Packaging dimensions: 28 x 93 x 69 mm (D x W x H)
Product weight: 56 g
Weight with packaging: 74 g
