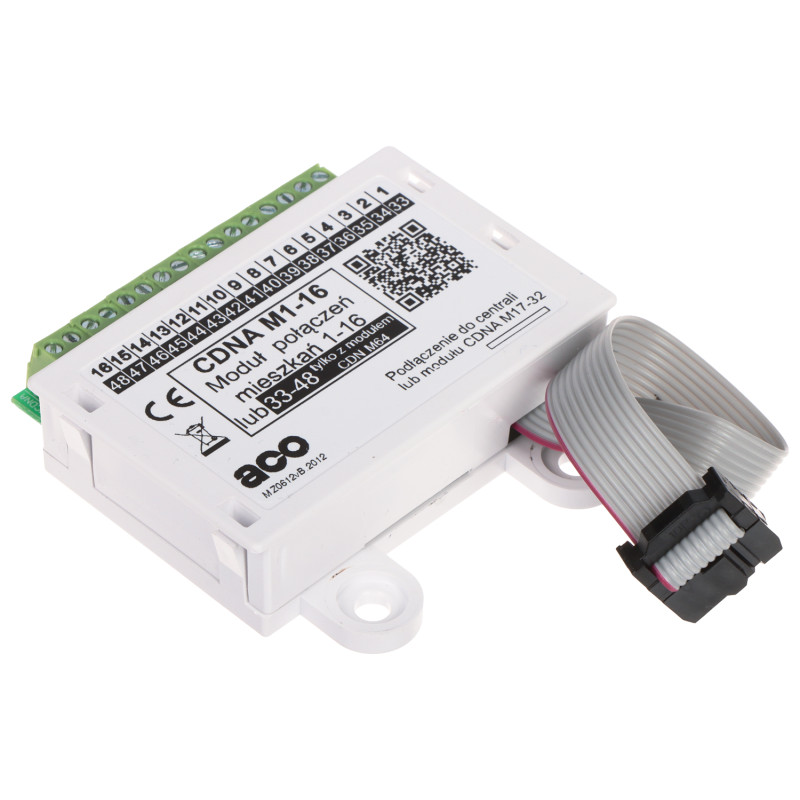

Calling module for analog doorphone control panel 16 subscribers CDN system multi-wire installation accessories ACO CDNA-M1-16
zł183.39
Tax included
The CDNA-M1-16 calling module is a professional expansion device designed by the renowned company ACO, a leader in the field of doorphone systems. This product is a key component of advanced CDN series doorphone systems, which are widely used in multi-family housing, office buildings, and public utility facilities. The main task of the module is to enable efficient communication and calling for up to 16 independent subscribers (apartments or offices).
One of the most important advantages of this module is its versatility in terms of installation types. The device works seamlessly with traditional analog systems based on a 4, 5, and 6-wire structure. Thanks to this, the CDNA-M1-16 module is an excellent choice not only for new investments but also as a modernization element in older buildings where existing cable infrastructure must be preserved.
Installation of the module is extremely simple and fast, which every professional installer will appreciate. The use of high-quality ARK screw terminals guarantees a durable and secure wire connection, minimizing the risk of failures resulting from poor contact. The compact housing with dimensions of 71 x 70 x 19 mm allows for easy placement of the module inside the doorphone control panel or in standard installation boxes, which significantly optimizes mounting space.
The product is characterized by exceptional reliability and resistance to intensive use. Precise workmanship with attention to technical details translates into a clear call signal without interference, which directly affects the comfort of residents. By choosing an ACO module, the user receives a guarantee of the highest quality confirmed by the manufacturer's many years of experience in the security systems market. It is an investment that ensures the stability of the entire doorphone system for many years, raising the standard of safety and convenience in every facility.
Calling module for analog doorphone control panel 16 subscribers CDN system multi-wire installation accessories
Model: ACO CDNA-M1-16
EAN: 6931240092637 SKU: 931092637
- Support for up to 16 subscribers (call lines)
- Full compatibility with the ACO CDN system
- Support for 4, 5 and 6-wire analog installations
- Quick installation thanks to ARK screw terminals
- Compact dimensions for easy installation inside control panels
- High-quality workmanship ensuring a clear signal
- Product from a Polish manufacturer of doorphone systems
Description
The CDNA-M1-16 calling module is a professional expansion device designed by the renowned company ACO, a leader in the field of doorphone systems. This product is a key component of advanced CDN series doorphone systems, which are widely used in multi-family housing, office buildings, and public utility facilities. The main task of the module is to enable efficient communication and calling for up to 16 independent subscribers (apartments or offices).
One of the most important advantages of this module is its versatility in terms of installation types. The device works seamlessly with traditional analog systems based on a 4, 5, and 6-wire structure. Thanks to this, the CDNA-M1-16 module is an excellent choice not only for new investments but also as a modernization element in older buildings where existing cable infrastructure must be preserved.
Installation of the module is extremely simple and fast, which every professional installer will appreciate. The use of high-quality ARK screw terminals guarantees a durable and secure wire connection, minimizing the risk of failures resulting from poor contact. The compact housing with dimensions of 71 x 70 x 19 mm allows for easy placement of the module inside the doorphone control panel or in standard installation boxes, which significantly optimizes mounting space.
The product is characterized by exceptional reliability and resistance to intensive use. Precise workmanship with attention to technical details translates into a clear call signal without interference, which directly affects the comfort of residents. By choosing an ACO module, the user receives a guarantee of the highest quality confirmed by the manufacturer's many years of experience in the security systems market. It is an investment that ensures the stability of the entire doorphone system for many years, raising the standard of safety and convenience in every facility.
Specification
Device type
Calling module / Apartment connection module
Product series
ACO CDN
Compatibility
ACO CDNA series doorphone control panels
Number of supported subscribers
Maximum 16 premises / uniphones
Installation type
Analog multi-wire (4, 5 or 6 wires)
System input
1x Dedicated connector for connection with the control panel main unit
Subscriber outputs
16x ARK screw terminals (call lines)
Connection method
Screw terminals ensuring secure electrical contact
Application
Expansion of doorphone systems in multi-family housing
Mounting location
Inside the doorphone control panel or dedicated mounting box
Construction
PCB printed circuit board with high-quality electronic components
Power supply
Powered directly from the CDNA control panel bus
Operating conditions
Standard conditions for doorphone devices mounted indoors
Manufacturer warranty
24 months (2 years)
Control logic and software
The device works with the system logic of the ACO CDN control panel. Although the module is a hardware component, its operation is closely integrated with the control panel's firmware, which manages addressing and call priorities. The system ensures collision-free transmission of the ringing signal to the selected recipient. Integration allows for programming of premises numbering and assigning them to the physical outputs of the module, which significantly facilitates the management of a large structure of residents within one communication riser. The module supports advanced audio and call signal switching functions without introducing distortion, which is crucial for maintaining high sound quality in analog systems.
Contents
1x CDNA-M1-16 calling module
1x Installation manual
Dimensions, Weight
Product dimensions: 19 x 71 x 70 mm (D x W x H)
Packaging dimensions: 20 x 75 x 70 mm (D x W x H)
Product weight: 45 g
Weight with packaging: 45 g
