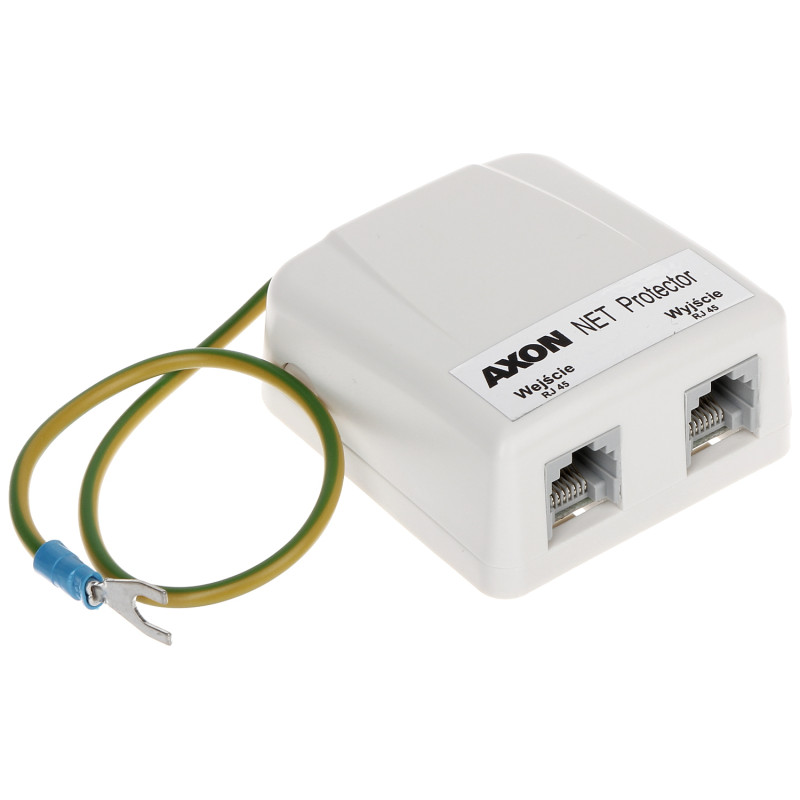

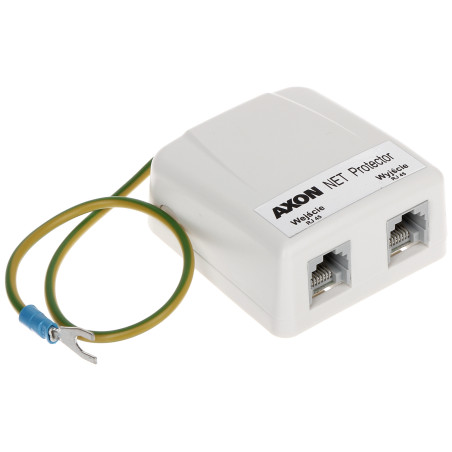

LAN RJ45 surge protector 4-pair Ethernet Gigabit PoE surge protection AXON AXON-NET-PROTECTOR
zł174.72
Tax included
AXON-NET-PROTECTOR is a professional device designed to provide comprehensive surge protection for devices operating in 10/100/1000 Mbps Ethernet networks. It is an essential solution for installations exposed to atmospheric discharges and surges induced in network cables. The device is characterized by high efficiency due to the protection of all eight wires (four pairs) of the twisted pair cable.
The main advantages of the product are primarily its versatility and ease of installation. Thanks to the use of standard RJ45 sockets, plugging the surge protector into an existing infrastructure is quick and does not require specialized tools. A key element of the design is the discharge of electrical charges directly to the ground via a dedicated PE protective wire. This ensures the safety not only of the end devices themselves, such as IP cameras, switches, or routers, but also of the entire network structure.
Using the AXON-NET-PROTECTOR significantly reduces the risk of costly failures and downtime in monitoring systems and computer networks. The solid, white plastic housing makes the device aesthetically blend into RACK cabinets and installation boxes. It is a product of the Polish brand AXON, known for its reliability and high-quality protective components. Remember that for full effectiveness, the surge protector must be connected to a properly executed and functional grounding system. Investing in surge protection is a fraction of the costs generated by replacing damaged electronics after a storm or power grid failure.
LAN RJ45 surge protector 4-pair Ethernet Gigabit PoE surge protection
Model: AXON AXON-NET-PROTECTOR
EAN: 6931240041383 SKU: 931041380
- Protection of all 4 pairs of twisted pair cable (8 wires)
- Effective discharge of charges to the ground via PE wire
- Standard RJ45 (8P8C) sockets for easy connection
- Compliance with the rigorous PN-EN61643-21 standard
- Compact and durable white plastic housing
- Simple Plug & Play installation without configuration
- Designed for 10/100/1000 Mbps Ethernet networks and IP CCTV systems
Description
AXON-NET-PROTECTOR is a professional device designed to provide comprehensive surge protection for devices operating in 10/100/1000 Mbps Ethernet networks. It is an essential solution for installations exposed to atmospheric discharges and surges induced in network cables. The device is characterized by high efficiency due to the protection of all eight wires (four pairs) of the twisted pair cable.
The main advantages of the product are primarily its versatility and ease of installation. Thanks to the use of standard RJ45 sockets, plugging the surge protector into an existing infrastructure is quick and does not require specialized tools. A key element of the design is the discharge of electrical charges directly to the ground via a dedicated PE protective wire. This ensures the safety not only of the end devices themselves, such as IP cameras, switches, or routers, but also of the entire network structure.
Using the AXON-NET-PROTECTOR significantly reduces the risk of costly failures and downtime in monitoring systems and computer networks. The solid, white plastic housing makes the device aesthetically blend into RACK cabinets and installation boxes. It is a product of the Polish brand AXON, known for its reliability and high-quality protective components. Remember that for full effectiveness, the surge protector must be connected to a properly executed and functional grounding system. Investing in surge protection is a fraction of the costs generated by replacing damaged electronics after a storm or power grid failure.
Specification
Rated voltage
5 V - DC voltage at which the device operates in standby mode without interfering with the network signal.
Maximum voltage
6 V - Voltage threshold above which the protective elements are activated and the surge is limited.
Line-to-line protection level
40 V ... 1 kV/µs - The voltage value to which the impulse between signal wires is limited when a surge occurs.
Line-to-ground protection voltage
600 V ... 1 kV/µs - Insulation and charge discharge efficiency, protecting against breakdown to the device ground.
Nominal discharge current (line-to-line)
20 A (10/1000µs) - The device's ability to safely discharge surge current with energy defined by the standard.
Nominal discharge current (line-to-ground)
20 A (10/1000µs) - Parameter defining resistance to discharge currents directed directly to the PE protective wire.
Protected wire pairs
1-2, 3-6, 4-5, 7-8 - Full protection covers all eight wires of a standard UTP/FTP cable, protecting data and PoE power.
Socket type
RJ45 (8P8C) - Standard, high-quality network sockets ensuring a secure mechanical and electrical connection.
Housing
Plastic - Made of durable ABS material, providing galvanic isolation and protection against mechanical damage.
Color
White - Neutral and aesthetic color scheme facilitating device identification in patch cabinets and installations.
Standard
Compliant with PN-EN61643-21 - Guarantee of meeting rigorous European safety standards for surge protectors.
Weight
0.052 kg - Lightweight design allowing installation in places with limited load capacity or directly on cable bundles.
Dimensions
67 x 60 x 29 mm - Compact dimensions allowing for significant space savings inside system enclosures and cabinets.
Warranty
2 years - Period of full manufacturer warranty protection, confirming high quality of workmanship and component reliability.
Contents
1x AXON-NET-PROTECTOR surge protector
1x User manual in Polish
Dimensions, Weight
Product dimensions: 29 x 67 x 60 mm (D x W x H)
Package dimensions: 45 x 110 x 70 mm (D x W x H)
Product weight: 52 g
Weight with packaging: 72 g
