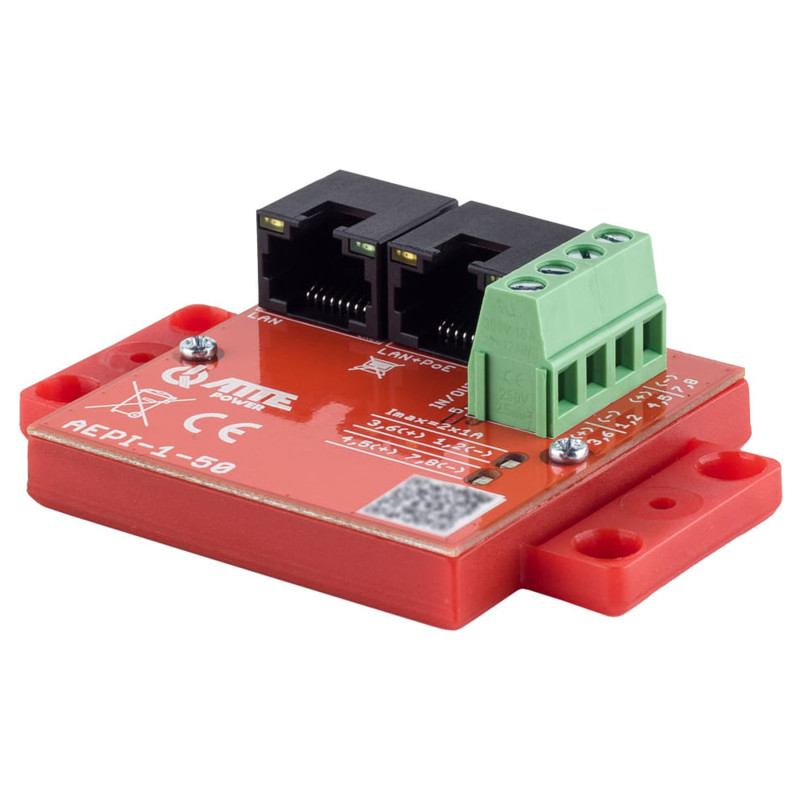

Gigabit PoE Injector 90W Passive 802.3af/at RJ45 for IP Cameras and LAN Networks ATTE AEPI-1-50
zł161.18
Tax included
AEPI-1-50 is an advanced gigabit PoE injector, which is a key component in modern IP monitoring systems and professional telecommunications networks. This device has been designed for maximum performance and reliability, offering full support for data transmission at 10/100/1000 Mbps standards. As a result, the user can enjoy lightning-fast data transfer without any delays, which is critical for 4K high-resolution cameras, video conferencing systems, or other devices requiring high network bandwidth.
One of the most important advantages of this model is its huge output power, reaching up to 90 W. This allows for powering even the most demanding end devices, such as external PTZ cameras equipped with powerful infrared illuminators, advanced Wi-Fi 6 access points, or network terminals. The adapter is fully compatible with PoE 802.3af/at standards and PoE PASSIVE systems, making it an extremely versatile solution for installers.
An innovative solution used in the AEPI-1-50 are independent screw terminals. They allow for precise selection of twisted pair pairs and the transmission of two different voltage levels between two AEPI-1-50 adapters, which opens up completely new possibilities in designing non-standard and complex power installations while maintaining full gigabit speed. A solid housing made of high-quality plastic in a distinctive red color ensures durability and easy identification among cables, and compact dimensions facilitate installation in junction boxes, RACK cabinets, or cable ducts. The device operates stably in a wide temperature range from -25°C to +50°C, which guarantees operational reliability in various environmental conditions. By choosing this product, you are investing in a professional solution that significantly simplifies cabling, reduces installation costs, and ensures stable power continuity for your network infrastructure.
Gigabit PoE Injector 90W Passive 802.3af/at RJ45 for IP Cameras and LAN Networks
Model: ATTE AEPI-1-50
EAN: 6931240037058 SKU: 931037053
- Gigabit transmission speed 10/100/1000 Mbps
- Very high output power up to 90W
- Compliance with IEEE 802.3af and IEEE 802.3at standards
- Support for PoE PASSIVE power supply
- Independent screw terminals for power connection
- Possibility to transmit two different voltages via one twisted pair cable
- LED optical signaling of power presence
- Compact and durable plastic housing
- Wide operating temperature range from -25°C to +50°C
- Easy installation and integration with existing systems
Description
AEPI-1-50 is an advanced gigabit PoE injector, which is a key component in modern IP monitoring systems and professional telecommunications networks. This device has been designed for maximum performance and reliability, offering full support for data transmission at 10/100/1000 Mbps standards. As a result, the user can enjoy lightning-fast data transfer without any delays, which is critical for 4K high-resolution cameras, video conferencing systems, or other devices requiring high network bandwidth.
One of the most important advantages of this model is its huge output power, reaching up to 90 W. This allows for powering even the most demanding end devices, such as external PTZ cameras equipped with powerful infrared illuminators, advanced Wi-Fi 6 access points, or network terminals. The adapter is fully compatible with PoE 802.3af/at standards and PoE PASSIVE systems, making it an extremely versatile solution for installers.
An innovative solution used in the AEPI-1-50 are independent screw terminals. They allow for precise selection of twisted pair pairs and the transmission of two different voltage levels between two AEPI-1-50 adapters, which opens up completely new possibilities in designing non-standard and complex power installations while maintaining full gigabit speed. A solid housing made of high-quality plastic in a distinctive red color ensures durability and easy identification among cables, and compact dimensions facilitate installation in junction boxes, RACK cabinets, or cable ducts. The device operates stably in a wide temperature range from -25°C to +50°C, which guarantees operational reliability in various environmental conditions. By choosing this product, you are investing in a professional solution that significantly simplifies cabling, reduces installation costs, and ensures stable power continuity for your network infrastructure.
Specification
PoE Standards
Full support for IEEE 802.3af and IEEE 802.3at (PoE+) standards as well as PoE PASSIVE systems, ensuring maximum compatibility with a wide range of network devices from various manufacturers.
Transmission Speed
Support for 10 Mbps, 100 Mbps, and 1000 Mbps (Gigabit Ethernet) standards, which guarantees smooth transmission of high-density data without performance loss.
Output Power
The maximum total output power of the device is up to 90 W, which allows for stable power supply to devices with very high energy consumption, such as PTZ cameras.
Input Voltage
Wide input voltage range from 10 V to 56 V DC, which allows for flexible adjustment of the external power source to the specific requirements of a given installation.
Output Voltage
The voltage at the PoE port output is directly dependent on the voltage supplied to the device input (Vout = Vin), which simplifies the design of the power system.
Input Connectors
The device is equipped with one standard RJ-45 socket for data signal (LAN) and two independent sets of screw terminals for connecting DC power.
Output Connectors
One RJ-45 output socket (LAN + PoE) transmitting an integrated data signal and electrical power directly to the end device via a single cable.
Operation Signaling
Built-in LED signaling diodes allow for instant device status diagnostics and verification of the presence of supply voltage at the output port.
Twisted Pair Configuration
Unique functionality allowing for the transmission of two different voltage levels; input 1 powers pairs 1-2 and 3-6, while input 2 powers pairs 4-5 and 7-8.
Housing Construction
Made of high-quality, mechanically resistant red plastic, which facilitates quick identification of the module in the mounting cabinet.
Ingress Protection Class
IP20 protection rating, which ensures protection against access to hazardous parts and foreign objects with a diameter greater than 12.5 mm (indoor use).
Operating Temperature
The device is adapted to work in a wide range of ambient temperatures from -25 degrees Celsius to +50 degrees Celsius, which ensures stability in difficult conditions.
Protections
The product does not have built-in surge protection; to protect the electronics, it is recommended to use dedicated external protection modules.
Application
An ideal solution for powering IP monitoring cameras, VoIP systems, Wi-Fi access points, and other network devices requiring power via UTP cable.
Contents
1x Professional PoE power adapter AEPI-1-50 ATTE
1x Quick start guide in Polish
Dimensions, Weight
Product dimensions: 23 x 73 x 51 mm (D x W x H)
Package dimensions: 53 x 125 x 85 mm (D x W x H)
Product weight: 30 g
Weight with packaging: 62 g
