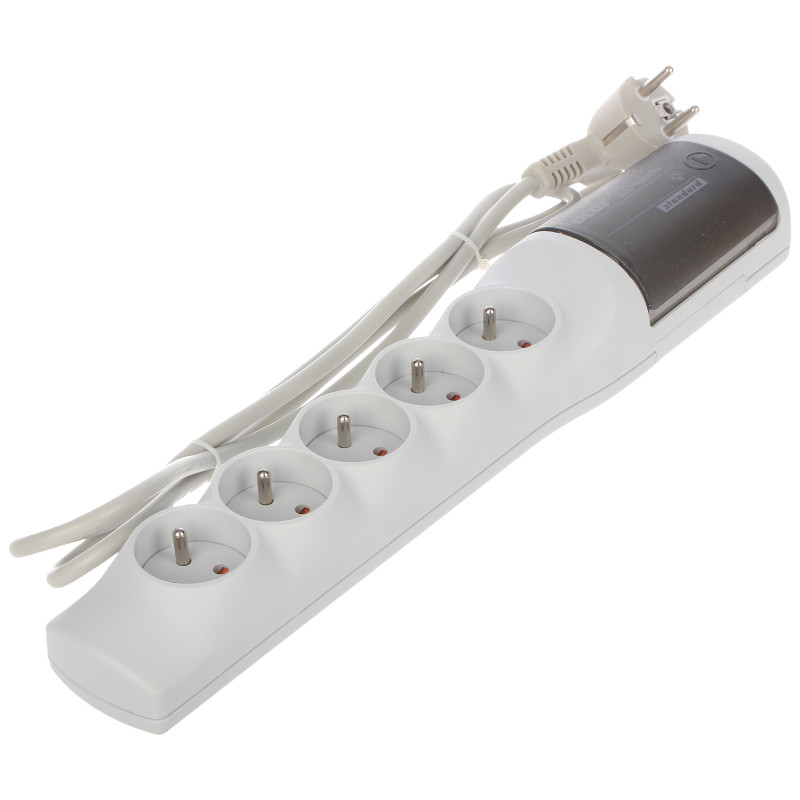

Surge protection power strip 5 sockets 1.45m mains filter automatic fuse 2300W 10A protection ACAR ACAR-XPROTECTOR
zł155.88
Tax included
A power strip is an essential piece of equipment for every modern computer workstation and home multimedia entertainment centre. This device effectively and measurably reduces the risk of damage to valuable electronic equipment, such as desktop computers, laptops, LED/OLED TVs, game consoles, or advanced audio sets, which are particularly sensitive to sudden and unforeseen surges occurring in the power grid.
Thanks to the use of a professional surge protection circuit based on a high-quality varistor, the product constitutes the first and most important line of defence against the destructive effects of atmospheric discharges and power grid failures. The main advantage of the strip is its high functionality combined with uncompromising attention to user and property safety. It is equipped with five mains sockets with an earthing pin, which allows for the simultaneous and safe connection of multiple devices with a total power of up to 2300W.
The illuminated, double-pole switch not only makes it easier to locate the device in the dark but also plays a key informational role, signalling the presence of voltage in the sockets. The use of an automatic time-delay fuse eliminates the cumbersome necessity of replacing traditional fuse links – in the event of an overload, simply switch the fuse back on after removing the cause of the failure. The housing made of high-quality plastic with self-extinguishing properties ensures that even in extreme situations, the device will not contribute to the spread of fire, making it an ideal choice for offices and homes.
Surge protection power strip 5 sockets 1.45m mains filter automatic fuse 2300W 10A protection
Model: ACAR ACAR-XPROTECTOR
EAN: 6931240044599 SKU: 931044590
- Effective surge protection for computers and AV equipment
- 5 mains sockets with earthing pin
- 10A automatic time-delay fuse
- Double-pole illuminated power switch
- Housing made of high-resistance self-extinguishing plastic
- Short response time of the protection circuit below 25ns
- Convenient 1.45-meter power cord
- Voltage presence indication in sockets
Description
A power strip is an essential piece of equipment for every modern computer workstation and home multimedia entertainment centre. This device effectively and measurably reduces the risk of damage to valuable electronic equipment, such as desktop computers, laptops, LED/OLED TVs, game consoles, or advanced audio sets, which are particularly sensitive to sudden and unforeseen surges occurring in the power grid.
Thanks to the use of a professional surge protection circuit based on a high-quality varistor, the product constitutes the first and most important line of defence against the destructive effects of atmospheric discharges and power grid failures. The main advantage of the strip is its high functionality combined with uncompromising attention to user and property safety. It is equipped with five mains sockets with an earthing pin, which allows for the simultaneous and safe connection of multiple devices with a total power of up to 2300W.
The illuminated, double-pole switch not only makes it easier to locate the device in the dark but also plays a key informational role, signalling the presence of voltage in the sockets. The use of an automatic time-delay fuse eliminates the cumbersome necessity of replacing traditional fuse links – in the event of an overload, simply switch the fuse back on after removing the cause of the failure. The housing made of high-quality plastic with self-extinguishing properties ensures that even in extreme situations, the device will not contribute to the spread of fire, making it an ideal choice for offices and homes.
Specification
Rated voltage
230 V AC / 50 Hz - The device is fully adapted for operation in standard European AC power grids, ensuring stable power supply for all connected home and office receivers.
Total maximum current
10 A - Defines the upper limit of current that can safely flow through the strip without the risk of damaging its internal current paths or triggering protection mechanisms.
Maximum total load
2300 W - The total power of all devices connected to the five sockets should not exceed this value, which allows for the safe powering of computer and AV sets.
Surge protection circuit response time
< 25 ns - Extremely short response time of the varistor, which allows for almost instantaneous suppression of dangerous voltage spikes, protecting sensitive electronics from destruction.
Number of mains sockets
5 sockets with 10A/250V protective contact - Each socket is equipped with an earthing pin, which is necessary for the proper operation of surge filters and user safety.
Automatic time-delay fuse
10 A / 250 V - Effectively protects against the effects of short circuits and overloads; unlike fuse links, after triggering, it is enough to press it again to restore power.
Leakage current
< 0.5 mA - A very low leakage current value indicates excellent insulation quality and safety of use of the strip in all home conditions.
Nominal voltage of the surge protection circuit
250 V / 50 Hz - Parameter defining the continuous operating voltage at which the protection circuit remains ready to intercept surge impulses.
Surge protection level
≤ 1.3 kV (L/N) - The maximum voltage that can appear at the strip output during protection activation, which is a safe value for most switching power supplies.
Nominal discharge current
1 kA (L/N) - (8/20µs) - The device's ability to repeatedly dissipate the energy of typical mains surges without losing its protective properties.
Switch
Double-pole, illuminated - Allows for the physical disconnection of both power wires (phase and neutral), which guarantees no power consumption by devices in standby mode and full safety.
Maximum discharge current
4.5 kA (L/N) - (8/20µs) - The limit value of surge current that the strip is able to withstand at once, protecting connected equipment from the effects of nearby discharges.
Power cable length
1.45 m - The optimal length of the H05VV-F type cable allows for convenient placement of the strip under a desk or behind a cabinet, ensuring aesthetics and order in cabling.
Housing
Made of self-extinguishing plastic - Made of materials with high thermal resistance, which do not support flame in case of failure, increasing the fire safety of the facility.
Manufacturer's warranty
2 years - Period of full technical and warranty support, confirming the high quality of workmanship and reliability of the electronic components used.
Contents
1x Surge protection power strip
1x User manual in Polish
Dimensions, Weight
Product dimensions: 52 x 365 x 65 mm (D x W x H)
Packaging dimensions: 55 x 405 x 100 mm (D x W x H)
Product weight: 510 g
Weight with packaging: 600 g
