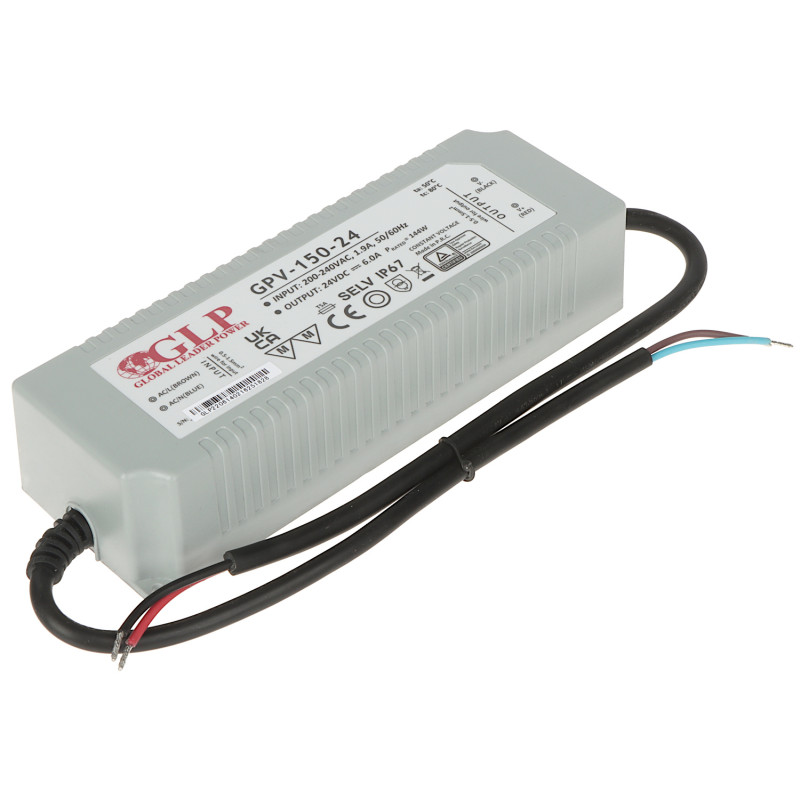

Hermetic waterproof IP67 switching power supply 24V DC 6A 144W for LED and CCTV monitoring GLP 24V/6A/GPV
zł167.54
Tax included
The hermetic switching power supply GLP 24V/6A/GPV is a high-quality power device designed for operation in harsh environmental conditions. Thanks to its IP67 ingress protection rating, the power supply is completely resistant to dust and short-term immersion in water, making it an ideal solution for outdoor installations, LED lighting systems, CCTV monitoring, and industrial automation. The housing made of durable plastic provides excellent insulation and protection against mechanical damage.
The device is characterized by high efficiency at the 89% level, which translates into lower energy losses and limited heat emission. The power supply offers a stable 24V DC output voltage at a maximum current of 6A, providing a total power of 144W. A key advantage is the series of built-in protections: overload, short-circuit, overvoltage, and thermal, which guarantee the safety of both the power supply itself and the connected receivers.
Please note that for continuous operation (24h), it is recommended to use a load not exceeding 80% of the maximum current to ensure the longevity of the components. The product has a 3-year manufacturer's warranty, which confirms its reliability. Compact dimensions of 203x70x45 mm and mounting holes facilitate installation on walls or other flat surfaces. The power supply operates in a wide temperature range from -20°C to +70°C, allowing its use in diverse climatic zones. Choosing this model is a guarantee of stable power supply and trouble-free system operation for years.
Hermetic waterproof IP67 switching power supply 24V DC 6A 144W for LED and CCTV monitoring
Model: GLP 24V/6A/GPV
EAN: 6931240010136 SKU: 931010134
- High IP67 ingress protection rating ensuring water resistance
- Output power 144W at 24V DC voltage
- High energy efficiency at 89%
- Wide input voltage range 180-277V AC
- Complete protection set: short-circuit, overload, overvoltage, thermal
- Durable plastic housing with mounting brackets
- Long 3-year warranty period
Description
The hermetic switching power supply GLP 24V/6A/GPV is a high-quality power device designed for operation in harsh environmental conditions. Thanks to its IP67 ingress protection rating, the power supply is completely resistant to dust and short-term immersion in water, making it an ideal solution for outdoor installations, LED lighting systems, CCTV monitoring, and industrial automation. The housing made of durable plastic provides excellent insulation and protection against mechanical damage.
The device is characterized by high efficiency at the 89% level, which translates into lower energy losses and limited heat emission. The power supply offers a stable 24V DC output voltage at a maximum current of 6A, providing a total power of 144W. A key advantage is the series of built-in protections: overload, short-circuit, overvoltage, and thermal, which guarantee the safety of both the power supply itself and the connected receivers.
Please note that for continuous operation (24h), it is recommended to use a load not exceeding 80% of the maximum current to ensure the longevity of the components. The product has a 3-year manufacturer's warranty, which confirms its reliability. Compact dimensions of 203x70x45 mm and mounting holes facilitate installation on walls or other flat surfaces. The power supply operates in a wide temperature range from -20°C to +70°C, allowing its use in diverse climatic zones. Choosing this model is a guarantee of stable power supply and trouble-free system operation for years.
Specification
Power supply type
Switching - modern design based on a high-frequency converter, ensuring high efficiency and stability of output parameters
Supply voltage
180 ... 277 V AC - wide input voltage range allowing for stable operation even during fluctuations in the power grid
Frequency range
47 ... 63 Hz - standard support for grid frequencies
Output voltage
24 V DC - stabilized DC voltage ideal for LED systems and automation
Output voltage tolerance
± 5 % - precise voltage regulation ensuring the safety of receivers
Power supply current capacity
6 A - maximum output current allowing for powering devices with high power consumption
Power supply power
144 W - high total power of the device
Efficiency
89 % - high energy efficiency minimizing device heating
Number of outputs
1 pc. - single output channel led out by wires
Protections
Overload (protects against excessive current draw), Short-circuit (automatic disconnection in case of a short circuit), Overvoltage (protection against voltage spikes), Thermal (shutdown after exceeding safe operating temperature)
Selected features
Protection class II (double insulation, does not require grounding), Housing adapted for wall mounting thanks to integrated brackets
Housing type
Plastic - lightweight and durable construction, Waterproof - full protection against moisture
Ingress protection rating
IP67 - complete dust tightness and protection against the effects of short-term immersion in water (up to 30 min at a depth of 1m)
Operating temperature
-20 °C ... 70 °C - possibility of operation in extreme thermal conditions
Warranty
3 years - long warranty protection period testifying to the high quality of components
Contents
1x Switching power supply 24V/6A/GPV
1x User manual
Dimensions, Weight
Product dimensions: 203 x 70 x 45 mm (D x W x H)
Packaging dimensions: 280 x 90 x 55 mm (D x W x H)
Product weight: 1020 g
Weight with packaging: 1088 g
