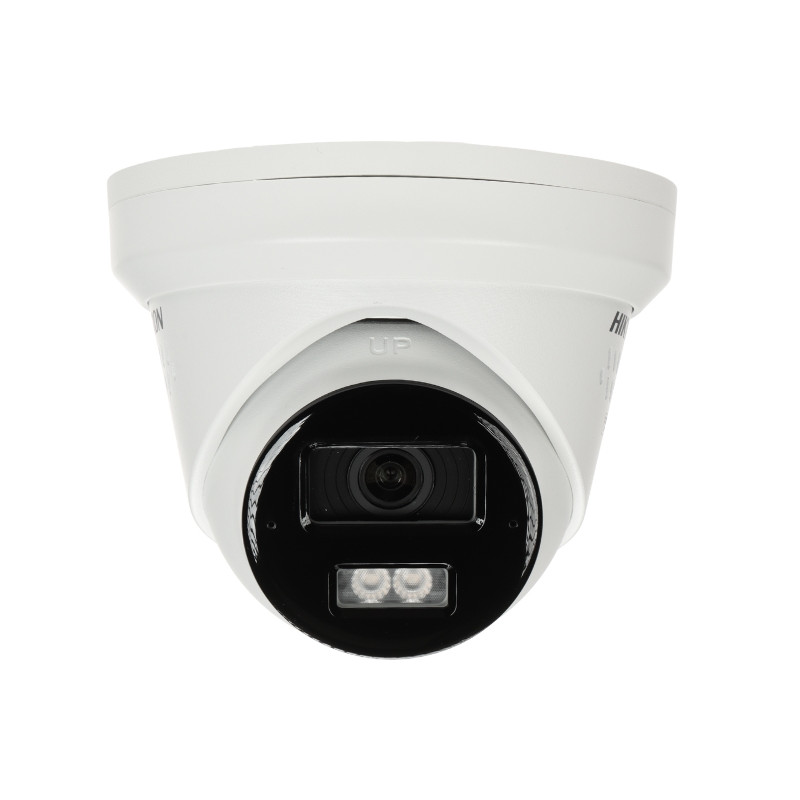

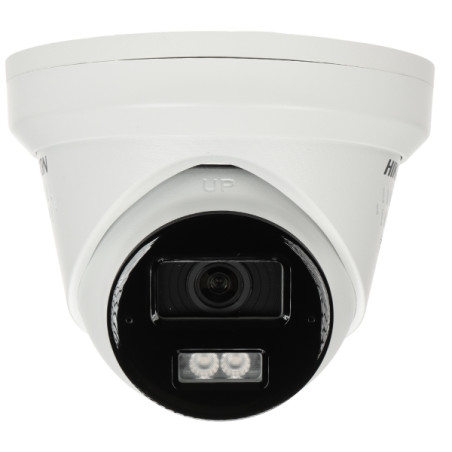

4 Mpx IP Camera with 2.8-4 mm motorized lens Smart Hybrid Light AcuSense 3.0 IP67 NEMA 4X

Model: Hikvision DS-2CD2343G2-LIZ2UY/SL(2.8/4MM)

EAN: 6931240099346 SKU: 931099349

• Resolution 4 Mpx (2688 x 1520)
• Smart Hybrid Light technology (IR + white light up to 30 m)
• Motorized lens 2.8–4 mm
• AcuSense 3.0 analytics (human and vehicle classification)
• Active deterrence (light + sound)
• Built-in dual microphone and 2 W speaker
• IP67 ingress protection and NEMA 4X anti-corrosion rating
• Micro SD card support up to 512 GB
• H.265+ compression
• PoE or 12 V DC power supply

Description

DS-2CD2343G2-LIZ2UY/SL(2.8/4MM) is an advanced 4 Mpx IP camera designed for professional video surveillance systems. The device is equipped with a high-class motorized varifocal lens of 2.8–4 mm, which allows for precise adjustment of the viewing angle to installation requirements. A key advantage of the camera is the Smart Hybrid Light technology, which enables intelligent switching between an infrared (IR) illuminator and white light (LED) with a range of up to 30 meters. As a result, the camera provides a clear image in total darkness, and in the event of an intruder detection, it automatically turns on the white light, which acts as a deterrent.

Specification

Standard

IP

Resolution

2688 x 1520 - 4 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p

Sensor

1/3" Progressive Scan CMOS

Lens

2.8 - 4 mm (motorized)

Viewing angle

99.3° @ 2.8 mm, 80° @ 4 mm

Illuminator range

IR up to 30 m, White light (LED) up to 30 m

Image compression

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Audio

Built-in dual microphone, built-in 2 W speaker, two-way audio support, noise and echo reduction

Intelligent analysis

AcuSense 3.0: human and vehicle classification, line crossing, intrusion, region entrance/exit, face recognition

Additional features

Smart Hybrid Light, active deterrence (light/sound), WDR 120 dB, 3D-DNR, BLC/HLC, ROI, ANR, NAS support, privacy masks (4), ICR filter

Software

The camera works with the Hik-Connect application (Android/iOS) and iVMS-4200 software for PC. The applications allow for live view, playback of recordings from an SD card or recorder, configuration of image parameters, management of alarm events (push notifications), and support for two-way audio communication. Access is possible via P2P cloud or directly via ports (8000/80). The Web Server allows for full configuration via a browser.

Network interface

10/100 Mb/s (RJ-45), ONVIF

Power supply

PoE (802.3at), 12 V DC / 1.34 A

Operating conditions

-30 °C ... 60 °C, IP67, NEMA 4X

Contents

1x IP Camera DS-2CD2343G2-LIZ2UY/SL(2.8/4MM)

Dimensions, Weight

Product dimensions: 127 x 127 x 96 mm (D x W x H)

Packaging dimensions: 150 x 150 x 145 mm (D x W x H)

Product weight: 590 g

Weight with packaging: 802 g

Zum Download

• CE Declaration
• SAFETY COMPLIANCE
