EAN: 6931240047538 SKU: 931047536

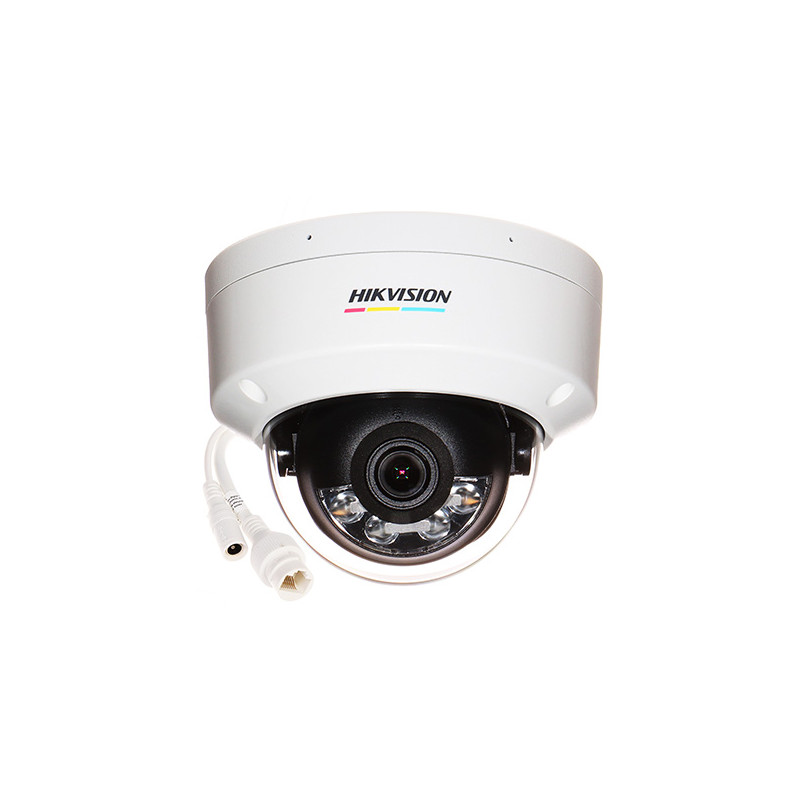

The DS-2CD1127G2H-LIU 2.8MM PL IP camera is an advanced monitoring device that utilizes an efficient H.265+ / H.265 / H.264+ / H.264 image compression algorithm, ensuring clear and smooth data transmission at 1080p resolution. Thanks to the 1/2.8" Progressive Scan CMOS sensor, the camera offers high image quality even in difficult lighting conditions. The device features Smart Hybrid Light technology, which allows for intelligent switching between infrared IR mode and white light LED illuminator. In Smart mode, the white light activates automatically upon detecting an object in the monitored area, which significantly improves image detail at night. The camera has a robust, vandal-proof housing with an IP67 ingress protection rating and IK08 mechanical resistance class, making it an ideal solution for outdoor installations. PoE 802.3af power supply significantly simplifies installation by eliminating the need for additional power cables. A built-in microphone with noise and echo reduction allows for audio recording, and intelligent motion detection with human and vehicle classification minimizes the number of false alarms. This is a reliable solution for professional CCTV systems.
Standard
IP
Resolution
1920 x 1080 1080p, 1280 x 720 720p
Sensor
1/2.8" Progressive Scan CMOS
Lens
2.8 mm
Viewing angle
96 °
IR / LED illuminator range
30 m / 30 m
Image compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Audio
Built-in microphone, audio transmission over network, AAC compatibility, noise and echo reduction
Software and Interface
The camera has a built-in WEB server allowing for full configuration via a browser. Remote operation is carried out through free Hik-Connect applications Android/iOS and iVMS-4200 software for PC. These applications allow for live view, recording playback, motion detection configuration, privacy zones, and management of intelligent image analysis functions. Access is possible directly via ports 8000 or a secure P2P cloud, which eliminates the need for a public IP address. The system supports the ONVIF protocol, ensuring compatibility with recorders from other manufacturers.
Selected features
Smart Hybrid Light, D-WDR, 3D-DNR, ROI, BLC, HLC, Intelligent motion detection human/vehicle, privacy zones, sabotage detection
Power supply
PoE 802.3af, 12V DC / 500mA
Ingress protection and resistance class
IP67, IK08
Operating temperature
-30 °C ... 60 °C
Housing
Dome, Metal + Plastic, white color
Contents
1x IP Camera, user manual, mounting accessories
Dimensions, Weight
Product dimensions: 121 x 121 x 98 mm D x W x H
Package dimensions: 155 x 150 x 145 mm D x W x H
Product weight: 480 g
Weight with packaging: 638 g
