- New

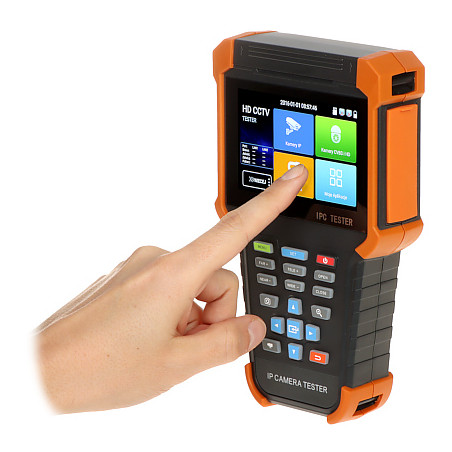

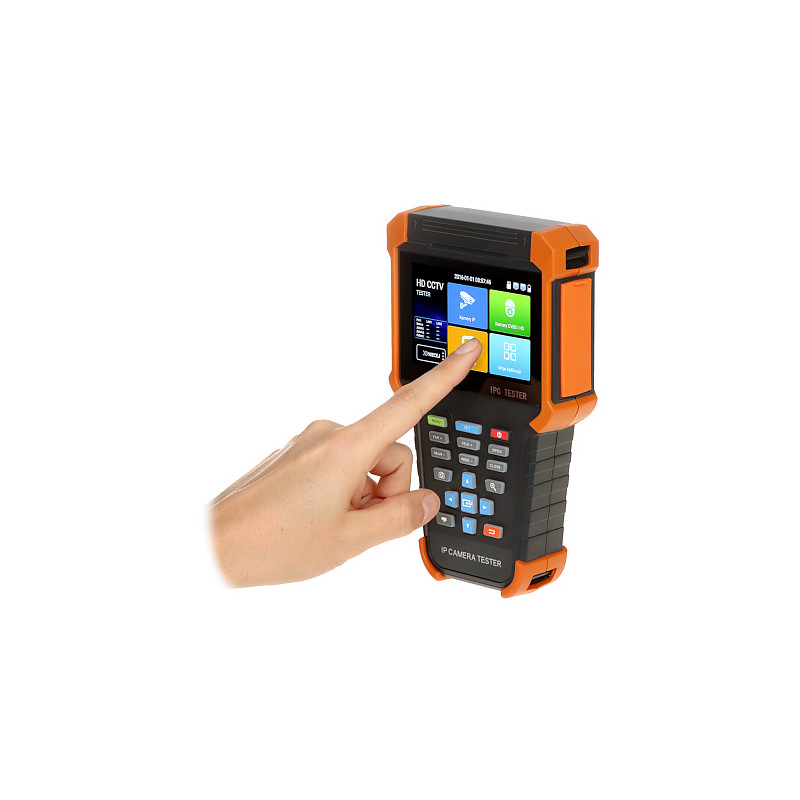

4 inch 4K Multifunctional CCTV Tester with Touchscreen for IP AHD HD-CVI HD-TVI CVBS Cameras CS-HB-30H
zł1,965.54
Tax included
The CS-HB-30H multifunctional CCTV tester is a professional tool essential for every video surveillance system installer. The device has been designed for maximum mobility and efficiency during service and commissioning work. The tester supports a wide range of video standards, including modern high-resolution AHD, HD-CVI, HD-TVI systems and classic analog CVBS cameras, as well as advanced IP cameras with resolutions up to 4K. Equipped with a clear, 4-inch capacitive touchscreen with a resolution of 800x480 pixels, it provides intuitive operation of the graphical menu.
The device's advantages include a built-in Wi-Fi module, support for PTZ protocols for controlling PTZ cameras, and advanced network diagnostic functions such as an IP address scanner, PING test, or switch port detection. The tester also has a built-in 12V DC and 48V PoE power source, which allows for direct powering of cameras during tests without the need for external power supplies. Thanks to the built-in web browser and support for many mobile applications from camera manufacturers (e.g., Hikvision, Dahua, Tiandy), the installer has full control over the system directly from the tester level. A solid construction, low weight, and the included carrying bag make it an indispensable piece of equipment for every professional involved in CCTV installations.
4 inch 4K Multifunctional CCTV Tester with Touchscreen for IP AHD HD-CVI HD-TVI CVBS Cameras
Model: CS-HB-30H
EAN: 6931240095850 SKU: 931095850
- Support for IP (up to 4K), AHD, HD-CVI, HD-TVI and CVBS cameras
- 4-inch capacitive touchscreen
- Built-in 12V DC and 48V PoE power supply for cameras
- Network testing: PING, IP scanner, UTP cable test
- Support for over 30 PTZ control protocols (RS-485)
- Built-in 2.4 GHz Wi-Fi module
- Video recording to micro SD card
- Built-in LED flashlight
Description
The CS-HB-30H multifunctional CCTV tester is a professional tool essential for every video surveillance system installer. The device has been designed for maximum mobility and efficiency during service and commissioning work. The tester supports a wide range of video standards, including modern high-resolution AHD, HD-CVI, HD-TVI systems and classic analog CVBS cameras, as well as advanced IP cameras with resolutions up to 4K. Equipped with a clear, 4-inch capacitive touchscreen with a resolution of 800x480 pixels, it provides intuitive operation of the graphical menu.
The device's advantages include a built-in Wi-Fi module, support for PTZ protocols for controlling PTZ cameras, and advanced network diagnostic functions such as an IP address scanner, PING test, or switch port detection. The tester also has a built-in 12V DC and 48V PoE power source, which allows for direct powering of cameras during tests without the need for external power supplies. Thanks to the built-in web browser and support for many mobile applications from camera manufacturers (e.g., Hikvision, Dahua, Tiandy), the installer has full control over the system directly from the tester level. A solid construction, low weight, and the included carrying bag make it an indispensable piece of equipment for every professional involved in CCTV installations.
Specification
Video standard
AHD (up to 8 Mpx), HD-CVI (up to 8 Mpx), HD-TVI (up to 8 Mpx), TCP/IP (4K), CVBS (PAL/NTSC)
Display
4 inches, capacitive touchscreen, resolution 800 x 480 px
Inputs/Outputs
1x BNC Video Input, 2x LAN Port (PoE compatible), 1x Mini Jack Audio Input
Serial ports
RS-485, support for over 30 protocols (Pelco-D/P, Hikvision, Dahua, Samsung, Bosch and others)
Network tests
UTP cable connection test, PING test, IP address scanner, switch port detection
Software and applications
The tester has a built-in operating system with access to advanced diagnostic tools. It supports mobile applications from manufacturers: iVMS-4500 HD, EZView, gDMSS HD Lite, XMEye, Safire EasyView, Tiandy tool, and dedicated test tools (DH test tool, Hik test tool, UNV Test Tool, HuaWei Tool). The built-in Google Chrome browser allows for full configuration of IP cameras via the web interface. The 'Tester Play' function allows for projecting the tester's screen onto a phone or computer in real-time. The software also offers a bitrate calculator, virtual IPC, and advanced RS-485 serial port monitoring.
Power supply
Li-Poly battery 7.4V / 4000mAh (up to 6h of operation), 12V DC / 3A output, 48V PoE output (25.5W)
Additional functions
Built-in flashlight, video recording to micro SD card, Wi-Fi hotspot, calculator
Operating temperature
-10 °C ... 50 °C
Humidity
30 % ... 90 %
Supported languages
Polish, English, Czech, French, Spanish, German, Portuguese, Russian, Turkish, Italian
Warranty
2 years
Contents
1x CCTV Tester CS-HB-30H
1x Power adapter
1x Carrying bag
Set of connection cables
Dimensions, Weight
Product dimensions: 47 x 208 x 125 mm (D x W x H)
Packaging dimensions: 100 x 250 x 180 mm (D x W x H)
Product weight: 600 g
Weight with packaging: 1200 g
