- New
AWS-1242 Antenna Amplifier AMS AWS-1242
zł206.80
Tax included
The AWS-1242 antenna amplifier is a professional device designed for distributing television signals in home antenna installations. It is a reliable solution that allows for effective signal amplification, ensuring high image and sound quality on all connected receivers. The device is characterized by a solid construction and ease of installation, making it an ideal choice for both professional installers and individual users.
One of the key advantages of this model is the ability to power additional preamplifiers directly through the signal input, which is achieved using a jumper. The maximum current that can be drawn by an additional amplifier is 100 mA, providing great flexibility in system expansion. Additionally, the amplifier is equipped with a precise gain controller, allowing for optimal adjustment of the signal level to the conditions of a given antenna installation. This helps to avoid signal overdriving, which is crucial for achieving clear reception.
The device can be powered directly from the included power supply or via the output using an appropriate separator. This is a Polish product, which guarantees high manufacturing quality and compliance with European technical standards. The AWS-1242 amplifier is a guarantee of stability and durability, confirmed by a 3-year manufacturer's warranty.

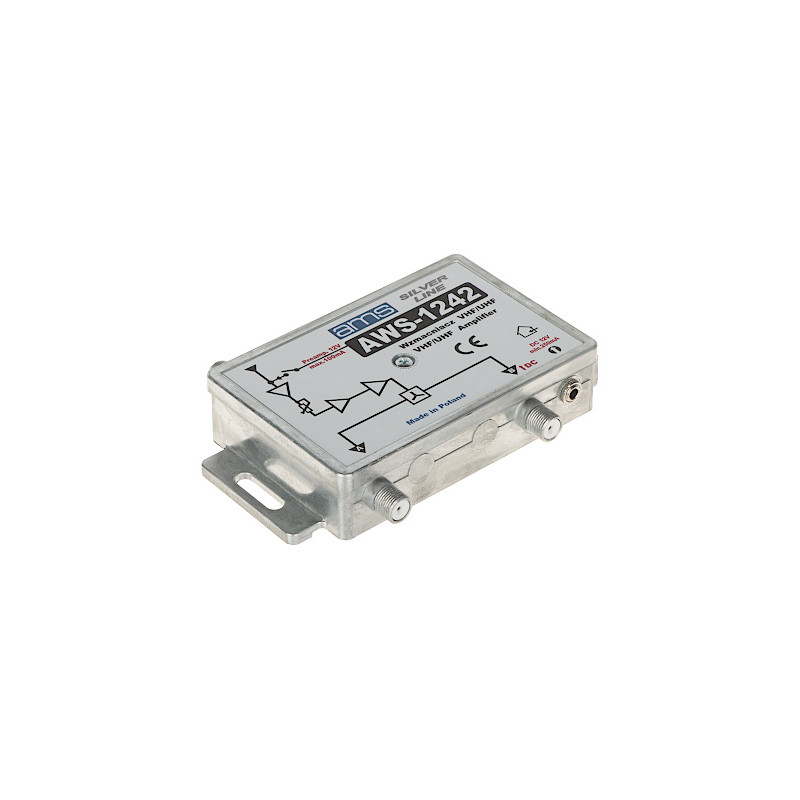

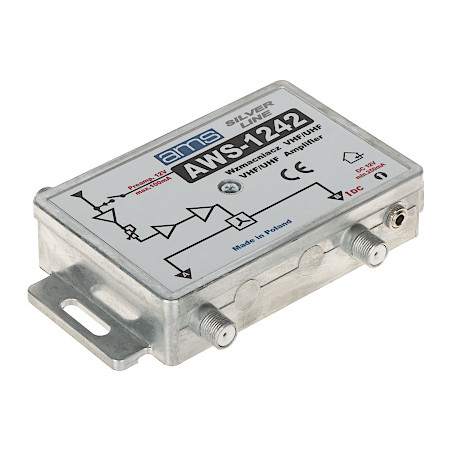

AWS-1242 Antenna Amplifier
Model: AMS AWS-1242
EAN: 6931240054642 SKU: 931054641
- Frequency range: 87 MHz ... 790 MHz
- 1 input / 2 outputs
- Gain adjustment in the range of 0 ... 12 dB
- Possibility to power preamplifiers via the input
- Built-in band-pass filter
- 12V DC power supply included
- Solid F-type housing
- Polish product
Description
The AWS-1242 antenna amplifier is a professional device designed for distributing television signals in home antenna installations. It is a reliable solution that allows for effective signal amplification, ensuring high image and sound quality on all connected receivers. The device is characterized by a solid construction and ease of installation, making it an ideal choice for both professional installers and individual users.
One of the key advantages of this model is the ability to power additional preamplifiers directly through the signal input, which is achieved using a jumper. The maximum current that can be drawn by an additional amplifier is 100 mA, providing great flexibility in system expansion. Additionally, the amplifier is equipped with a precise gain controller, allowing for optimal adjustment of the signal level to the conditions of a given antenna installation. This helps to avoid signal overdriving, which is crucial for achieving clear reception.
The device can be powered directly from the included power supply or via the output using an appropriate separator. This is a Polish product, which guarantees high manufacturing quality and compliance with European technical standards. The AWS-1242 amplifier is a guarantee of stability and durability, confirmed by a 3-year manufacturer's warranty.
Specification
Frequency range
87 MHz ... 790 MHz
Number of inputs/outputs
1 / 2
Input / output impedance
75 Ω
Connector type
F
Gain
25 / 28 dB ± 2 dB
Gain adjustment
0 ... 12 dB ± 1 dB
Noise figure
≤ 4 dB
Maximum output level
105 dBµV (2kTV)
IMA3 60dB
99 dBµV
IMA2 60dB
86 dBµV
Return loss
≥ 10 dB
Preamplifier power supply
Yes (via input)
Key features
Built-in band-pass filter 87 ... 790 MHz
Operating temperature
-25 °C ... 55 °C
Power supply
12 V DC / 250 mA (power supply included)
Contents
1x AWS-1242 antenna amplifier
1x 12V DC power supply
Dimensions, Weight
Product dimensions: 26 x 125 x 88 mm (D x W x H)
Packaging dimensions: 75 x 140 x 115 mm (D x W x H)
Product weight: 300 g
Weight with packaging: 458 g
