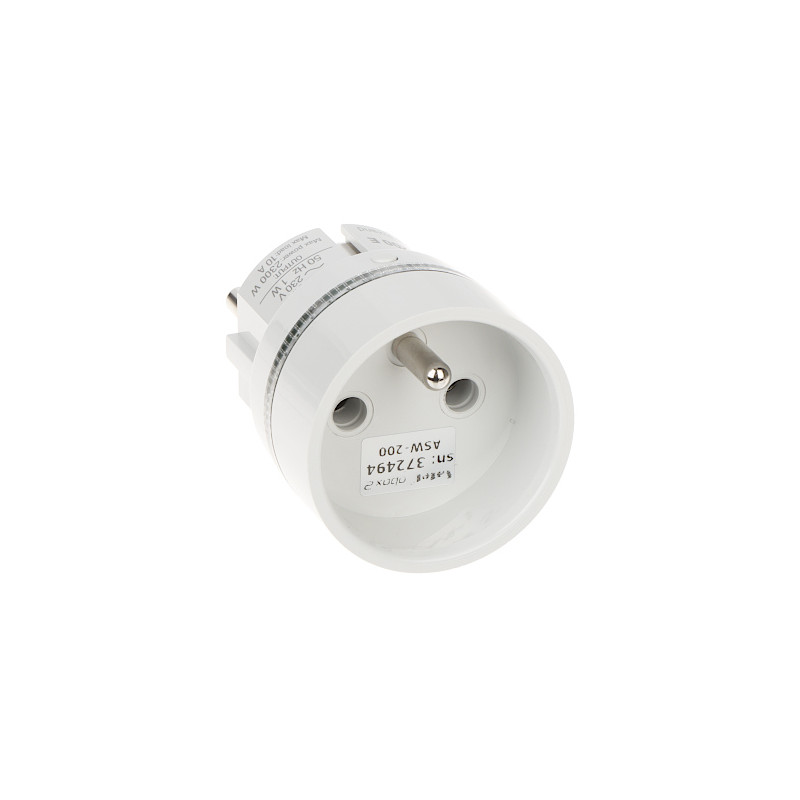

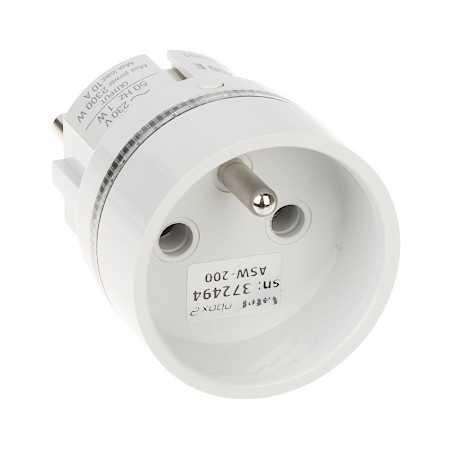

BE WAVE 2300W 10A Smart Power Socket SATEL ASW-200-E-W
zł310.58
Tax included
The ASW-200-E-W smart power socket is an advanced device designed for remote control of household appliance power supply. Thanks to integration with the BE WAVE wireless system, the user gains full control over connected receivers via a mobile app, remote control, or keypad. The device communicates with the system controller via reliable ABAX2 technology, which ensures connection stability and data transmission security through AES encryption. The socket offers a maximum load of up to 2300W, allowing for the operation of a wide range of household electrical appliances.
The device's advantages include compact dimensions that do not block adjacent sockets, and intuitive operation. The user can utilize three operating modes: automatic, remote, and manual, providing flexibility in energy management. The built-in ON/OFF button allows for quick power switching directly on the housing. An additional benefit is the LED indicator providing information on power consumption, as well as advanced overload and thermal protections that safeguard connected equipment against failures. The BE WAVE system, which includes the socket, is a comprehensive smart home solution that combines home automation with intruder protection, offering the user peace of mind and convenience in daily use.
BE WAVE 2300W 10A Smart Power Socket
Model: SATEL ASW-200-E-W
EAN: 6931240053454 SKU: 931053455
- Remote control of electrical appliances via the BE WAVE app
- Wireless communication using ABAX2 technology (868 MHz)
- Bidirectional encrypted radio communication (AES)
- Maximum load 2300W (10A)
- Three operating modes: Auto, remote, manual
- Built-in ON/OFF button
- Overload and thermal protection
- LED power consumption indicator
- Remote update and configuration
Description
The ASW-200-E-W smart power socket is an advanced device designed for remote control of household appliance power supply. Thanks to integration with the BE WAVE wireless system, the user gains full control over connected receivers via a mobile app, remote control, or keypad. The device communicates with the system controller via reliable ABAX2 technology, which ensures connection stability and data transmission security through AES encryption. The socket offers a maximum load of up to 2300W, allowing for the operation of a wide range of household electrical appliances.
The device's advantages include compact dimensions that do not block adjacent sockets, and intuitive operation. The user can utilize three operating modes: automatic, remote, and manual, providing flexibility in energy management. The built-in ON/OFF button allows for quick power switching directly on the housing. An additional benefit is the LED indicator providing information on power consumption, as well as advanced overload and thermal protections that safeguard connected equipment against failures. The BE WAVE system, which includes the socket, is a comprehensive smart home solution that combines home automation with intruder protection, offering the user peace of mind and convenience in daily use.
Specification
Rated voltage
230V AC, 50/60Hz
Maximum total load
2300W
Total maximum current
10A
Power consumption
0.73W (standby mode), max. 1.37W
Number of power sockets
1 pc.
Socket / plug type
CEE 7/5 (EURO) / CEE 7/7
Earthing
Yes
Frequency band
868.0 MHz ... 868.6 MHz (ABAX2)
Communication range
< 1000m in open area
Software
The device works with Smart-Hub series controllers and the dedicated BE WAVE app available for Android and iOS systems. The app enables full smart home management, including remote socket control, operating status preview, schedule configuration, and remote firmware updates for the device. The BE WAVE system provides advanced reading analysis, intruder protection, and automated event response, making the app the central point for managing security and automation in the facility.
Selected features
Remote update and configuration, AES encrypted communication, anti-jamming protection, LED signaling, thermal and overload protection.
Environmental class
II (EN 50130-5)
Operating temperature
-10°C ... 55°C
Humidity
max. 93% ± 3%
Contents
1x ASW-200-E-W Smart Socket
Dimensions, Weight
Product dimensions: 45 x 45 x 67 mm (D x W x H)
Packaging dimensions: 80 x 55 x 50 mm (D x W x H)
Product weight: 60 g
Weight with packaging: 80 g
