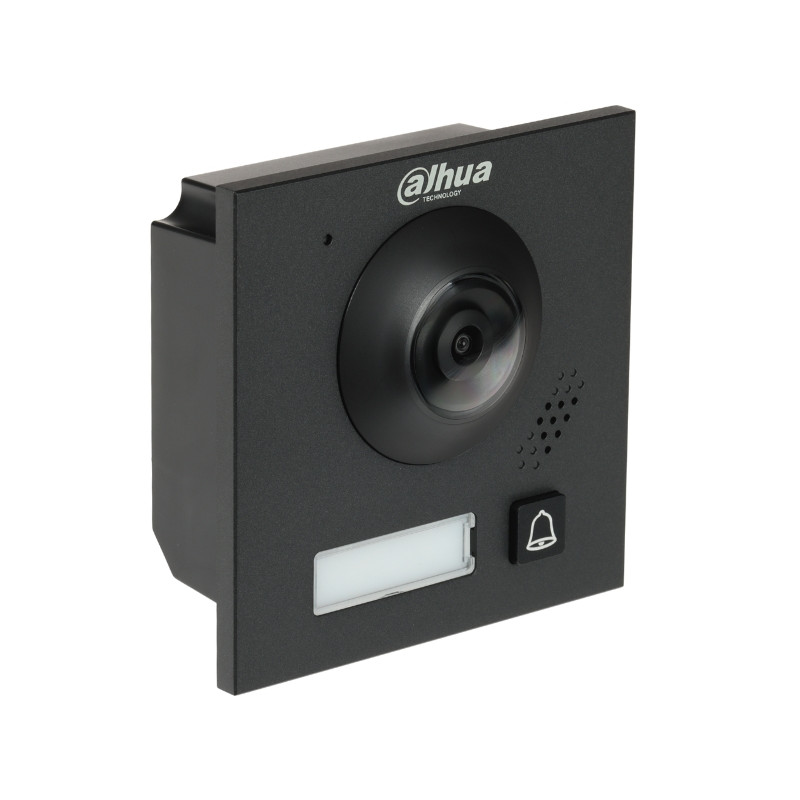

2 Mpx IP outdoor video intercom 168.6 degrees with intercom function and WDR 120 dB DAHUA VTO4201FB-P1
zł1,559.91
Tax included
The VTO4201FB-P1 IP video intercom is an advanced solution for modern access control systems, designed for high image quality and reliability. The device is equipped with a 1/2.9-inch 2 Mpx sensor, which provides a clear and detailed view of visitors. Thanks to an extremely wide viewing angle of 168.6 degrees, the panel allows for monitoring a large area in front of the entrance, eliminating blind spots. The housing made of durable aluminum with IP65 ingress protection and IK07 mechanical resistance guarantees long-term operation in harsh weather conditions and protection against vandalism.
The device's advantages include advanced image enhancement features such as WDR 120 dB, which effectively handles strong backlighting, and 3D-DNR, which reduces digital noise for a clear image even in low light. The panel supports two-way voice communication with noise and echo cancellation, which significantly improves conversation comfort. The device offers flexible power options (PoE or 12V DC) and easy integration with Dahua systems. Thanks to support for Micro SD cards up to 256GB, local storage of recordings is possible. It is an ideal choice for single-family homes, offices, and commercial facilities where high quality and security are required.
2 Mpx IP outdoor video intercom 168.6 degrees with intercom function and WDR 120 dB
Model: DAHUA VTO4201FB-P1
EAN: 6931240066225 SKU: 931066226
- 2 Mpx CMOS sensor
- Wide viewing angle 168.6°
- Video compression H.265 / H.264
- WDR 120 dB for excellent image quality
- 3D-DNR noise reduction
- Built-in IR illuminator
- Micro SD card support up to 256GB
- IP65 ingress protection and IK07 mechanical resistance
- PoE or 12V DC power supply
- DMSS mobile app support
Description
The VTO4201FB-P1 IP video intercom is an advanced solution for modern access control systems, designed for high image quality and reliability. The device is equipped with a 1/2.9-inch 2 Mpx sensor, which provides a clear and detailed view of visitors. Thanks to an extremely wide viewing angle of 168.6 degrees, the panel allows for monitoring a large area in front of the entrance, eliminating blind spots. The housing made of durable aluminum with IP65 ingress protection and IK07 mechanical resistance guarantees long-term operation in harsh weather conditions and protection against vandalism.
The device's advantages include advanced image enhancement features such as WDR 120 dB, which effectively handles strong backlighting, and 3D-DNR, which reduces digital noise for a clear image even in low light. The panel supports two-way voice communication with noise and echo cancellation, which significantly improves conversation comfort. The device offers flexible power options (PoE or 12V DC) and easy integration with Dahua systems. Thanks to support for Micro SD cards up to 256GB, local storage of recordings is possible. It is an ideal choice for single-family homes, offices, and commercial facilities where high quality and security are required.
Specification
Sensor
1/2.9", 2 Mpx CMOS
Viewing angle
168.6°
Video compression method
H.265 / H.264
IR illuminator
Yes
Compatibility
DAHUA
Mobile phone access
Port: 37777 or cloud access (P2P); Android/iOS: Free DMSS application. The DMSS application allows for remote live view from the video intercom camera, conducting two-way audio conversations with the caller, remote door lock opening, and receiving push notifications about events. The application offers an intuitive interface, support for P2P cloud, which eliminates the need for port forwarding on the router, and the ability to view recordings saved on the device's memory card.
Selected features
WDR - 120 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), automatic ICR filter (day/night), Micro SD card support up to 256GB, RS-485 interface, alarm output, 12V DC/600mA power output, door status detection, lock control, tamper detection.
Power supply
PoE (802.3af/at), 12V DC / 2A
Power consumption
≤ 5 W
Housing
Aluminum
Ingress protection class
IP65
Mechanical protection class
IK07
Operating temperature
-30 °C ... 60 °C
Supported languages
Polish, English
Contents
1x VTO4201FB-P1 video intercom
Dimensions, Weight
Product dimensions: 49 x 100 x 100 mm (D x W x H)
Package dimensions: 75 x 190 x 165 mm (D x W x H)
Product weight: 290 g
Weight with packaging: 470 g
