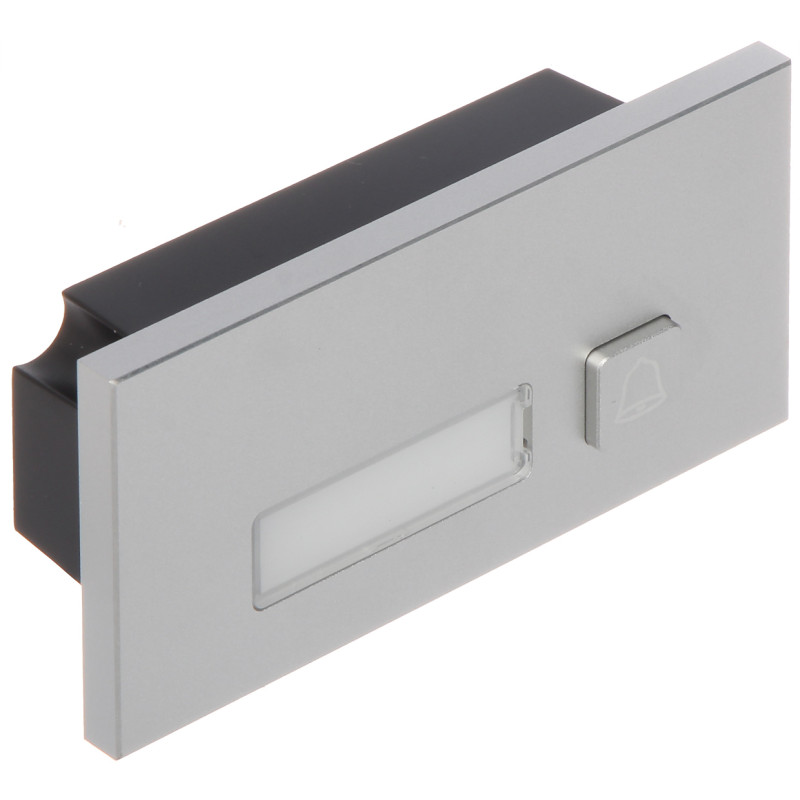

1-button keypad module for modular IP video intercom system panel mounting accessories DAHUA VTO4202F-MB1
zł257.34
Tax included
The VTO4202F-MB1 module is a professional extension for modular video intercom systems, designed for maximum functionality and durability. The device is dedicated to working with the camera module, allowing for the creation of a complete outdoor panel with a single call button. It is an ideal solution for single-family homes, offices, and service points where reliable communication with visitors is required.
The main advantage of the product is its solid, vandal-proof construction with an IK07 rating, which effectively protects the device against mechanical damage. The housing, made of a combination of metal and plastic in an elegant silver color, not only looks great but also exhibits high resistance to harsh weather conditions, as confirmed by the IP65 ingress protection rating. As a result, the module can be safely mounted outdoors, ensuring long-term and trouble-free operation.
Installation of the module is fast and intuitive thanks to the cascade component connection system. Power is drawn directly from the main unit, which simplifies the wiring structure and eliminates the need for additional power supplies. The module is characterized by very low energy consumption, which translates into economical operation of the entire video intercom system.
By choosing this module, you are investing in a proven solution from a global leader in security systems. The device offers not only high build quality but also full integration with modern IP technologies, including support for mobile applications and remote management. This is a guarantee of security, convenience, and modern design at the entrance to your facility. The modular system allows for future expansion with additional readers or buttons, making it an extremely flexible solution.
1-button keypad module for modular IP video intercom system panel mounting accessories
Model: DAHUA VTO4202F-MB1
EAN: 6931240088326 SKU: 931088328
- Single mechanical call button
- Full compatibility with VTO4202F-P camera module
- High IP65 ingress protection rating (when sealed)
- IK07 mechanical impact resistance
- Elegant housing made of metal and plastic
- 5V DC cascade power supply from the main module
- Wide operating temperature range from -20°C to +60°C
Description
The VTO4202F-MB1 module is a professional extension for modular video intercom systems, designed for maximum functionality and durability. The device is dedicated to working with the camera module, allowing for the creation of a complete outdoor panel with a single call button. It is an ideal solution for single-family homes, offices, and service points where reliable communication with visitors is required.
The main advantage of the product is its solid, vandal-proof construction with an IK07 rating, which effectively protects the device against mechanical damage. The housing, made of a combination of metal and plastic in an elegant silver color, not only looks great but also exhibits high resistance to harsh weather conditions, as confirmed by the IP65 ingress protection rating. As a result, the module can be safely mounted outdoors, ensuring long-term and trouble-free operation.
Installation of the module is fast and intuitive thanks to the cascade component connection system. Power is drawn directly from the main unit, which simplifies the wiring structure and eliminates the need for additional power supplies. The module is characterized by very low energy consumption, which translates into economical operation of the entire video intercom system.
By choosing this module, you are investing in a proven solution from a global leader in security systems. The device offers not only high build quality but also full integration with modern IP technologies, including support for mobile applications and remote management. This is a guarantee of security, convenience, and modern design at the entrance to your facility. The modular system allows for future expansion with additional readers or buttons, making it an extremely flexible solution.
Specification
System compatibility
The module is fully compatible with the Dahua IP video intercom camera main unit, model VTO4202F-P. It is an integral part of the VTO4202F series modular entry system.
Number of call buttons
The device is equipped with 1 mechanical doorbell button, which is characterized by high operating quality, clear tactile feedback, and backlighting for easy operation after dark.
Power supply and communication
The module is powered by 5V DC. Energy and data are transmitted directly from the main module or the previous module in the series via a dedicated system connector.
Power consumption
The device is extremely energy-efficient; power consumption in operating mode does not exceed 1W, which minimizes the load on the system power supply and allows for the connection of multiple modules.
Housing construction
Made of high-quality metal alloy and durable plastic. This ensures structural rigidity, corrosion resistance, and an aesthetic appearance for years.
Aesthetics and color
The silver finish gives the device a modern, elegant look that matches most contemporary intercom systems and facades.
IP ingress protection class
The device has an IP65 protection rating. The manufacturer recommends additional sealing of the contact between the housing and the mounting surface (e.g., with silicone) for full protection against moisture.
IK mechanical resistance
The module meets the IK07 standard, which means high resistance to mechanical impacts and attempts at damage by third parties, which is crucial in outdoor systems.
Environmental conditions
A wide operating temperature range from -20 degrees Celsius to +60 degrees Celsius allows for stable device operation in extreme weather conditions.
Operating humidity
The device can operate in an environment with a relative humidity of 10% to 90% (non-condensing), which ensures reliability in humid climates.
Mounting method
Designed for mounting in dedicated VTM series frames and housings (flush or surface mounted), which allows for aesthetic concealment of connections and stable seating.
Communication interface
Dedicated multi-pin connector for cascade connections inside the modular panel, ensuring fast data and power transfer between sections.
Warranty
The product is covered by a full 3-year manufacturer's warranty, which confirms the high quality of workmanship and reliability of electronic components.
Software and configuration
The module integrates with the firmware of the VTO main unit. System management is carried out via an intuitive Web Service interface available from a web browser or using professional SmartPSS software. The system allows for remote button configuration, firmware updates, and full connection diagnostics. Cooperation with the DMSS (Digital Mobile Surveillance System) mobile application enables receiving video calls in real-time, two-way voice communication, and remote opening of the electric strike from anywhere in the world. The application also offers push notifications about calls, event log viewing, and integration with other Dahua devices, such as IP cameras or NVR recorders, ensuring a coherent and secure Smart Home ecosystem.
Contents
1x VTO4202F-MB1 keypad module
1x Set of mounting screws
1x Edge gasket
1x Cascade connection cable
Dimensions, Weight
Product dimensions: 31 x 50 x 100 mm (D x W x H)
Packaging dimensions: 55 x 140 x 155 mm (D x W x H)
Product weight: 110 g
Weight with packaging: 178 g
