- New

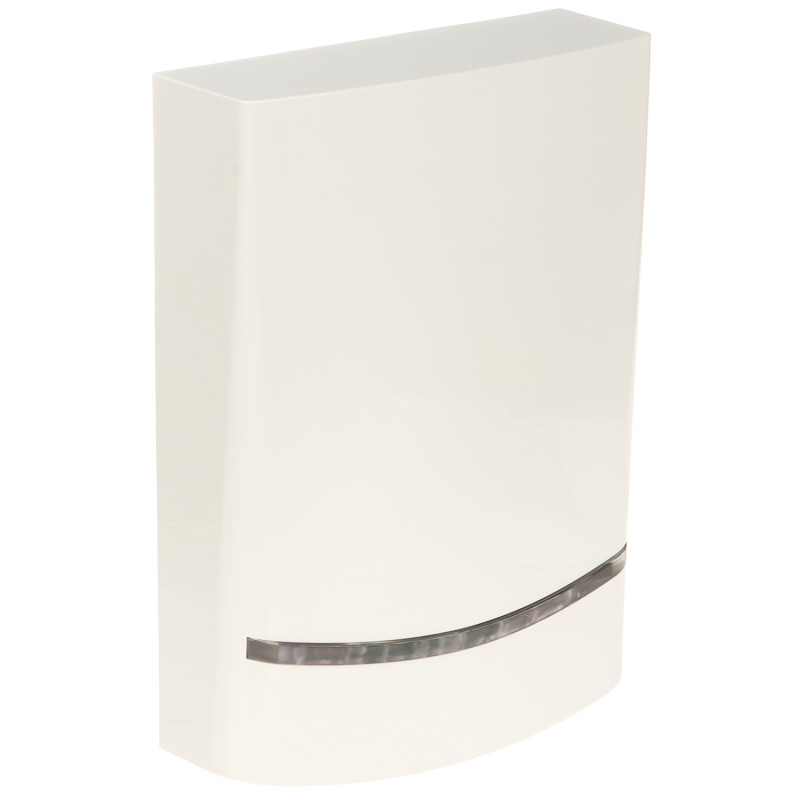

External LED Piezo Optical-Acoustic Siren Grade 2 IP54 Red Intruder Alarm AMC SV-BLADE-01/RED
zł179.01
Tax included
The SV-BLADE-01/RED external siren is an advanced optical-acoustic device that serves as a key component of any professional intrusion and robbery alarm system (SSWiN). The product has been designed to ensure maximum safety and reliability in harsh outdoor conditions. The main task of the siren is to effectively deter intruders and inform the surroundings about a breach of the protected zone by generating a loud sound signal and intense light flashes.
The heart of the device is an efficient piezoelectric transducer that generates sound with an intensity of up to 100 dB, which guarantees excellent audibility even in a noisy urban environment. Optical signaling is provided by modern, super-bright red LEDs, which are characterized by low power consumption and exceptional longevity. Thanks to the use of high-impact polycarbonate for the housing, the siren is extremely resistant to mechanical damage, acts of vandalism, and changing weather conditions such as rain, snow, or UV radiation.
One of the greatest advantages of the SV-BLADE-01/RED model is its versatility in mounting and configuration. The device can operate as a standard siren powered directly from the alarm control panel, but it also has a dedicated space for an optional backup battery (12V 2.2Ah). This solution ensures continuity of signaling even in the event of a deliberate power cut by an intruder. Additionally, an advanced tamper system protects the device against unauthorized opening of the housing and attempts to tear it off the wall, making it a solution that meets rigorous Grade 2 safety standards. The aesthetic, modern design ensures that the siren blends perfectly with the facades of modern residential and commercial buildings.
External LED Piezo Optical-Acoustic Siren Grade 2 IP54 Red Intruder Alarm
Model: AMC SV-BLADE-01/RED
EAN: 6931240021637 SKU: 931021633
- Acoustic signaling via an efficient piezoelectric transducer
- Optical signaling based on super-bright LEDs
- Compliance with the rigorous EN 50131-4 (Grade 2) standard
- High mechanical resistance thanks to a polycarbonate housing
- Dual tamper protection (opening and removal)
- Capability to operate with its own backup power supply (space for a battery)
- Watchdog function for monitoring system readiness status
- IP54 ingress protection rating allowing for outdoor operation
- Wide supply voltage range from 11V to 15V DC
- Aesthetic appearance and durable UV-resistant coloring
Description
The SV-BLADE-01/RED external siren is an advanced optical-acoustic device that serves as a key component of any professional intrusion and robbery alarm system (SSWiN). The product has been designed to ensure maximum safety and reliability in harsh outdoor conditions. The main task of the siren is to effectively deter intruders and inform the surroundings about a breach of the protected zone by generating a loud sound signal and intense light flashes.
The heart of the device is an efficient piezoelectric transducer that generates sound with an intensity of up to 100 dB, which guarantees excellent audibility even in a noisy urban environment. Optical signaling is provided by modern, super-bright red LEDs, which are characterized by low power consumption and exceptional longevity. Thanks to the use of high-impact polycarbonate for the housing, the siren is extremely resistant to mechanical damage, acts of vandalism, and changing weather conditions such as rain, snow, or UV radiation.
One of the greatest advantages of the SV-BLADE-01/RED model is its versatility in mounting and configuration. The device can operate as a standard siren powered directly from the alarm control panel, but it also has a dedicated space for an optional backup battery (12V 2.2Ah). This solution ensures continuity of signaling even in the event of a deliberate power cut by an intruder. Additionally, an advanced tamper system protects the device against unauthorized opening of the housing and attempts to tear it off the wall, making it a solution that meets rigorous Grade 2 safety standards. The aesthetic, modern design ensures that the siren blends perfectly with the facades of modern residential and commercial buildings.
Specification
Device type
External optical-acoustic siren
Acoustic signaling
Piezoelectric transducer; 100 dB @ 1 m, 85 dB @ 3 m
Optical signaling
Super-bright LEDs; red color
Power parameters
13.8 V DC (range 11 V ... 15 V DC); powered from an external source
Current consumption
Maximum 150 mA during alarm
Certification and Standards
EN 50131-4:2010, Grade 2, Environmental Class IV
Tamper protection
Detection of housing opening and removal from the surface
Watchdog functionality
Optional optical signaling of system standby mode
Material and Durability
High-impact polycarbonate; high impact resistance
Ingress protection rating
IP54 - protection against dust and water splashes
Operating temperature range
-25 °C ... 55 °C
Battery support
Space for internal 12V / 2.2Ah battery (max dimensions 185x72x34mm or 99x72x52mm)
Dimensions and Weight
295 x 210 x 70 mm; weight 0.77 kg
Finish and Color
White housing, red lens; UV resistance
Control logic and Software
The internal control software of the siren is responsible for precise management of alarm sequences and real-time monitoring of the device status. Algorithms implemented in the device's processor allow for intelligent filtering of power supply interference, which eliminates the risk of false alarms. A key element of the logic is the Watchdog function, which continuously monitors the correct operation of the microprocessor and automatically restarts the system if an error is detected, ensuring uninterrupted readiness for operation. The software also allows for the configuration of optional optical signaling for standby mode, which serves a preventive role by indicating an active protection system. Additionally, the system manages the charging process and monitors the status of the optional backup battery, protecting it from deep discharge and ensuring maximum cell life. The entire logic has been optimized for minimal power consumption, which is crucial in backup power systems.
Contents
1x SV-BLADE-01/RED Siren
1x Set of mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 70 x 210 x 295 mm (D x W x H)
Packaging dimensions: 80 x 215 x 300 mm (D x W x H)
Product weight: 770 g
Weight with packaging: 864 g
