- New

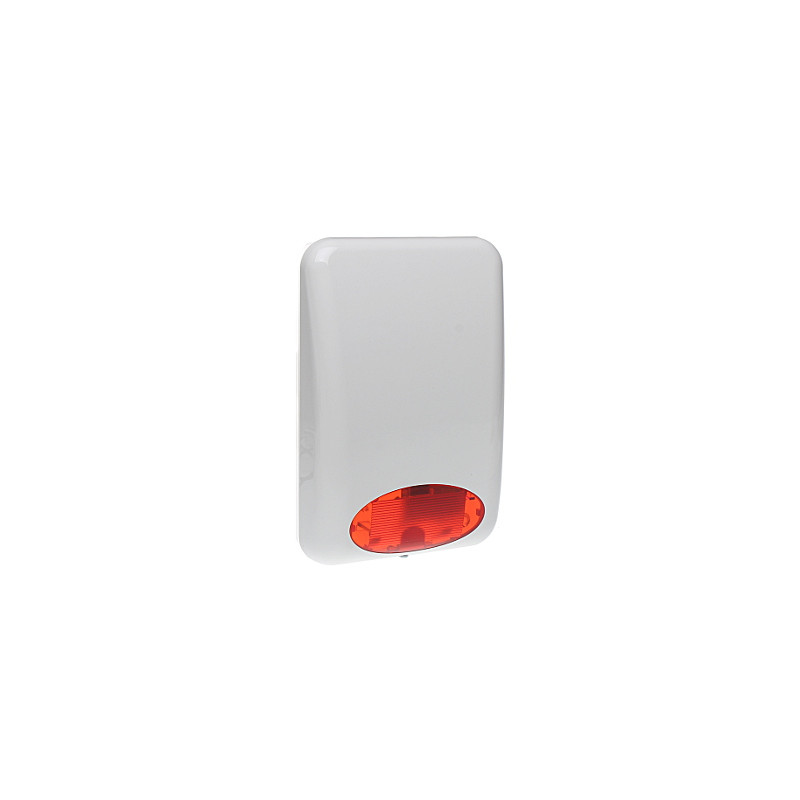

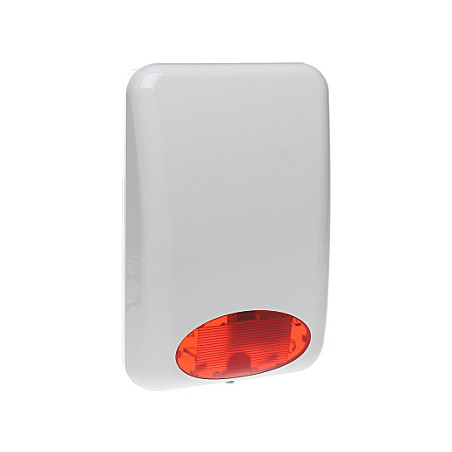

External optical-acoustic alarm siren red 120dB polycarbonate SATEL SPL-5010-R
zł160.93
Tax included
The SPL-5010-R external siren is a professional optical-acoustic device that serves as a key component of any advanced intrusion and robbery alarm system (I&HAS). Manufactured by the renowned Polish company SATEL, this model combines reliability, high deterrent effectiveness, and exceptional durability. The main task of the device is to immediately notify the surroundings of a breach in the protected zone by generating a very loud sound signal of up to 120 dB and clear red light flashes. Thanks to such high acoustic parameters, the alarm is audible from a long distance, which effectively discourages potential intruders and informs the neighborhood of a threat.
One of the most important advantages of the SPL-5010-R siren is its mechanical design. The housing is made of high-impact polycarbonate, a material known for its extreme resistance to mechanical damage, vandalism, and changing weather conditions. Polycarbonate does not yellow under the influence of UV radiation, which ensures that the device maintains an aesthetic appearance for many years of operation, even in harsh outdoor conditions. Additionally, the siren's electronics are properly protected against moisture, which guarantees trouble-free operation in a wide temperature range from -35°C to +60°C.
System security is enhanced by advanced tamper protection. The siren is equipped with tamper switches that react to any attempt at unauthorized opening of the housing or removal of the device from the mounting surface. This solution prevents an intruder from neutralizing the alarm without triggering a tamper signal in the alarm control panel. The device also offers flexibility in configuration thanks to two control inputs, which allows for independent triggering of optical and acoustic signaling, adapting the system's operation to the user's individual needs. By choosing the SPL-5010-R, you are investing in a proven, Polish product that has enjoyed the trust of installers and end-users for years.
External optical-acoustic alarm siren red 120dB polycarbonate
Model: SATEL SPL-5010-R
EAN: 6931240068960 SKU: 931068964
- Acoustic signaling: piezoelectric transducer
- Optical signaling: 12V 5W bulb
- High sound intensity up to 120 dB
- High-impact polycarbonate housing
- Tamper protection against opening
- Tamper protection against removal from the mounting surface
- Two control inputs (optical and acoustic)
- Selectable control method
- Wide operating temperature range from -35°C to 60°C
- Polish product from the renowned SATEL brand
Description
The SPL-5010-R external siren is a professional optical-acoustic device that serves as a key component of any advanced intrusion and robbery alarm system (I&HAS). Manufactured by the renowned Polish company SATEL, this model combines reliability, high deterrent effectiveness, and exceptional durability. The main task of the device is to immediately notify the surroundings of a breach in the protected zone by generating a very loud sound signal of up to 120 dB and clear red light flashes. Thanks to such high acoustic parameters, the alarm is audible from a long distance, which effectively discourages potential intruders and informs the neighborhood of a threat.
One of the most important advantages of the SPL-5010-R siren is its mechanical design. The housing is made of high-impact polycarbonate, a material known for its extreme resistance to mechanical damage, vandalism, and changing weather conditions. Polycarbonate does not yellow under the influence of UV radiation, which ensures that the device maintains an aesthetic appearance for many years of operation, even in harsh outdoor conditions. Additionally, the siren's electronics are properly protected against moisture, which guarantees trouble-free operation in a wide temperature range from -35°C to +60°C.
System security is enhanced by advanced tamper protection. The siren is equipped with tamper switches that react to any attempt at unauthorized opening of the housing or removal of the device from the mounting surface. This solution prevents an intruder from neutralizing the alarm without triggering a tamper signal in the alarm control panel. The device also offers flexibility in configuration thanks to two control inputs, which allows for independent triggering of optical and acoustic signaling, adapting the system's operation to the user's individual needs. By choosing the SPL-5010-R, you are investing in a proven, Polish product that has enjoyed the trust of installers and end-users for years.
Specification
Device type
External optical-acoustic siren designed for intrusion and robbery alarm systems (I&HAS)
Acoustic signaling
Generated by a high-performance piezoelectric transducer with very low power consumption relative to power output
Optical signaling
Realized via a 12V/5W bulb, ensuring excellent visibility at night and in difficult weather conditions
Sound intensity level
120 dB measured at a distance of 1 meter, ensuring high effectiveness in deterrence and notification
Tamper protection
Full protection against opening the housing and against attempts to remove the device from the mounting surface (microswitches)
Housing construction
Made of high-impact PC polycarbonate, characterized by very high mechanical strength and UV resistance
Color scheme
White housing with a red signaling lens, resistant to fading and external factors
Control inputs
Two independent inputs allowing for separate triggering of sound and light by the alarm control panel
Control method
Possibility to select the control method by changing the polarity of the input signal (0V ground or +12V positive)
Power supply
Rated voltage 12 V DC with a tolerance of +/- 15 percent, powered by an external source (power supply or control panel)
Current consumption
Maximum current consumption during full signaling is 300 mA (acoustic 250mA, optical 35mA average)
Operating temperature
Device adapted for operation in extreme conditions from -35 degrees Celsius to +60 degrees Celsius
Environmental class
Compliance with EN50130-5 Class IV standard (outdoor applications, resistance to moisture and frost)
Dimensions and mounting
Dimensions 298 x 197 x 72 mm allowing for aesthetic mounting on a building facade, net weight 0.67 kg
Warranty and origin
Polish product, covered by a full 24-month manufacturer's warranty from Satel, CE certified
Contents
1x SPL-5010-R external siren
1x Installation and operation manual
Set of screws and wall plugs
Dimensions, Weight
Product dimensions: 72 x 197 x 298 mm (D x W x H)
Packaging dimensions: 75 x 210 x 310 mm (D x W x H)
Product weight: 670 g
Weight with packaging: 860 g
