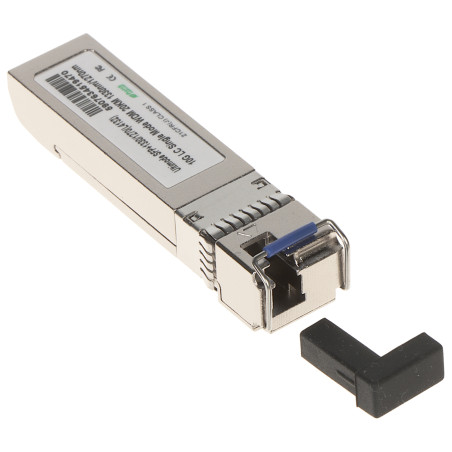

10Gbps 20km LC Single-Mode BiDi WDM SFP+ Optical Transceiver Module for Network Switch and Router ULTIMODE SFP+20-1330/1270
zł155.45
Tax included
The single-mode optical module is an advanced solution designed for operation in modern high-bandwidth fiber optic networks. The device is fully compliant with the SFP+ (Small Form-factor Pluggable Plus) standard, which allows for the conversion of electrical signals to optical at speeds of up to 10 Gbps. Thanks to the use of WDM (Wavelength Division Multiplexing) and BiDi (Bidirectional) technology, the module enables bidirectional data transmission using only a single fiber optic strand, which significantly reduces infrastructure costs and simplifies cabling management.
The product's advantages are invaluable in professional telecommunications installations. The module offers an impressive transmission range of up to 20 kilometers, making it an ideal choice for inter-building connections and extensive metropolitan networks. The use of an LC/PC connector ensures a stable and durable mechanical connection, minimizing signal loss. The device is characterized by high versatility – it works with most switches and routers equipped with SFP+ ports, allowing for flexible network expansion without the need to replace entire active devices. The robust metal housing not only protects the delicate electronics but also effectively dissipates heat, ensuring trouble-free operation across a wide temperature range.
Using pluggable modules is a guarantee of future-proofing your network. In the event of changing system requirements, it is sufficient to replace the SFP+ insert itself, rather than investing in new media converters. This is an economical, ecological, and extremely practical solution for every IT administrator. The product is dedicated to working with a model featuring complementary wavelengths, which creates a complete and reliable transmission path.
10Gbps 20km LC Single-Mode BiDi WDM SFP+ Optical Transceiver Module for Network Switch and Router
Model: ULTIMODE SFP+20-1330/1270
EAN: 6931240010839 SKU: 931010833
- High data transmission speed up to 10 Gbps
- BiDi/WDM technology allowing for fiber optic savings
- Transmission range up to 20 km on single-mode fiber
- LC/PC optical connector ensuring low attenuation
- Full compliance with IEEE802.3ae and SFF-8431 standards
- Hot-Pluggable support - replacement without powering down
- Built-in DDM (Digital Diagnostic Monitoring)
- Compatibility with ULTIMODE and TP-LINK devices
- Robust metal housing reducing electromagnetic interference
- Wide operating temperature range from 0°C to 70°C
Description
The single-mode optical module is an advanced solution designed for operation in modern high-bandwidth fiber optic networks. The device is fully compliant with the SFP+ (Small Form-factor Pluggable Plus) standard, which allows for the conversion of electrical signals to optical at speeds of up to 10 Gbps. Thanks to the use of WDM (Wavelength Division Multiplexing) and BiDi (Bidirectional) technology, the module enables bidirectional data transmission using only a single fiber optic strand, which significantly reduces infrastructure costs and simplifies cabling management.
The product's advantages are invaluable in professional telecommunications installations. The module offers an impressive transmission range of up to 20 kilometers, making it an ideal choice for inter-building connections and extensive metropolitan networks. The use of an LC/PC connector ensures a stable and durable mechanical connection, minimizing signal loss. The device is characterized by high versatility – it works with most switches and routers equipped with SFP+ ports, allowing for flexible network expansion without the need to replace entire active devices. The robust metal housing not only protects the delicate electronics but also effectively dissipates heat, ensuring trouble-free operation across a wide temperature range.
Using pluggable modules is a guarantee of future-proofing your network. In the event of changing system requirements, it is sufficient to replace the SFP+ insert itself, rather than investing in new media converters. This is an economical, ecological, and extremely practical solution for every IT administrator. The product is dedicated to working with a model featuring complementary wavelengths, which creates a complete and reliable transmission path.
Specification
Standards and protocols
IEEE802.3ae (10GBASE-LR/LW), SFF-8431 Rev.4.1, SFF-8472 Rev.4.4 - ensuring full compatibility with modern network equipment.
Transmission type
BiDi / WDM (Bidirectional / Wavelength Division Multiplexing) - bidirectional communication over a single fiber.
Transmission medium
Single-mode fiber 9/125 µm, characterized by low dispersion and attenuation.
Transmission speed
Maximum 10 Gbps (Gigabits per second), ideal for backbone networks and data centers.
Maximum range
20 km - allows for connecting distant network nodes without additional amplifiers.
Optical connectors
1x LC / PC - standard latch-type connector with high fiber centering precision.
Tx wavelength (Transmission)
1330 nm - generated by a precise FP (Fabry-Perot) type laser.
Rx wavelength (Reception)
1270 nm - high receiver sensitivity allows for stable operation over long distances.
Power supply
3.3 V DC - standard supply voltage for SFP+ modules, ensuring energy efficiency.
Operating temperature
0 °C ... 70 °C - stable operation in standard server conditions and rack cabinets.
Compatibility
ULTIMODE, TP-LINK devices, and other systems without manufacturer locks (vendor lock).
Physical features
Metal housing providing EMI shielding and mechanical durability of the insert.
Software and Diagnostics
Built-in DDM (Digital Diagnostic Monitoring) interface compliant with SFF-8472. This software allows for real-time monitoring of parameters such as module operating temperature, supply voltage, laser bias current, and optical power of the transmitted and received signal. Thanks to this, network administrators can quickly diagnose potential fiber link problems, predict failures resulting from component degradation, and optimize the performance of the entire network infrastructure without the need to interrupt data transmission.
System requirements
For proper operation, a complementary SFP+20-1270/1330 module is required on the other side of the link.
Contents
1x SFP+20-1330/1270 optical module
Dimensions, Weight
Product dimensions: 60 x 14 x 13 mm (D x W x H)
Packaging dimensions: 70 x 20 x 15 mm (D x W x H)
Product weight: 20 g
Weight with packaging: 24 g
